Name: Datasensing Light grid DS4 Range (max.) 5 m Protective field height 1050 mm 24 V DC No. of rays: 210
Brand: Datasensing
SKU: 3760014

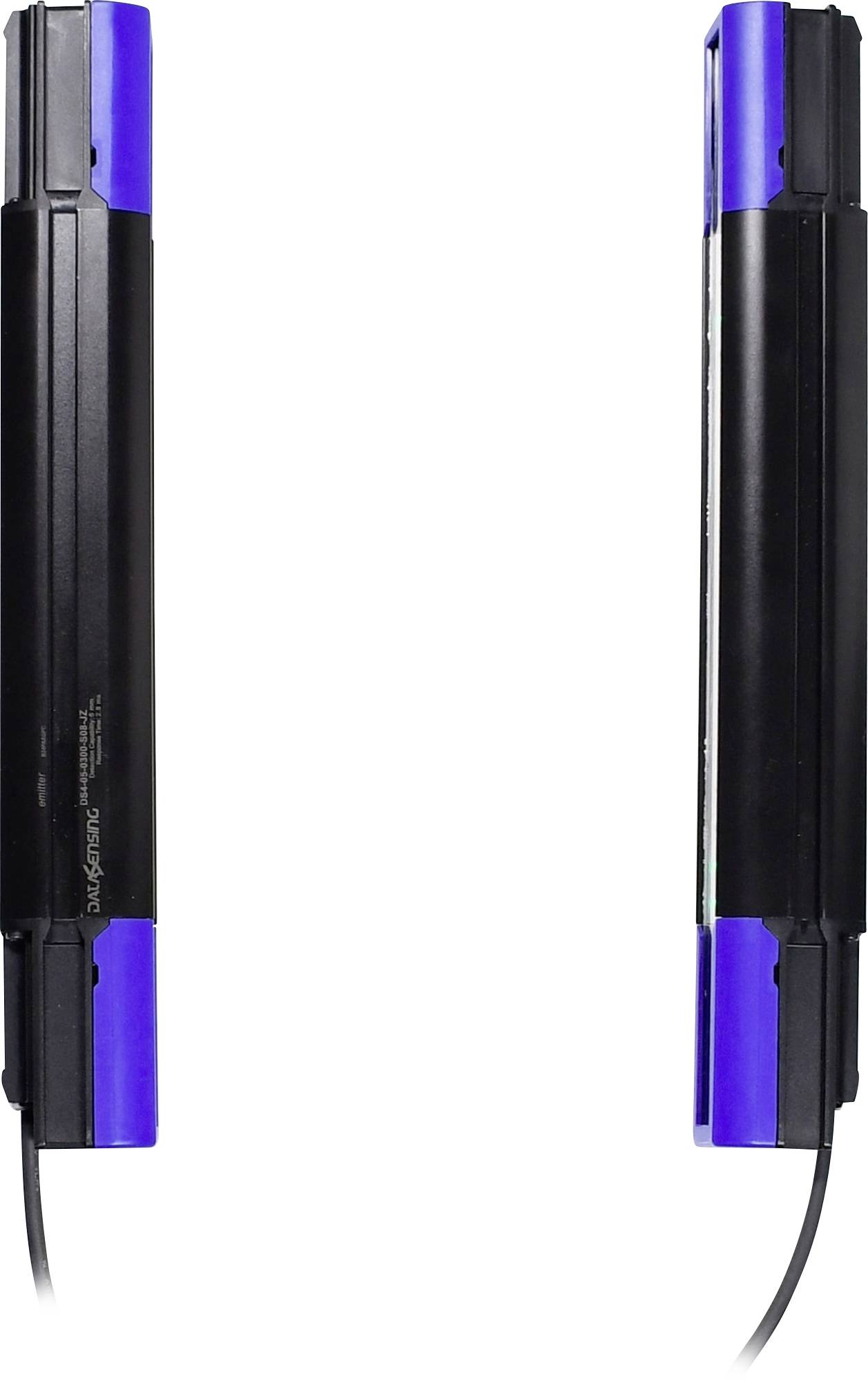

Two black-and-blue rectangular sensors or scanners mounted vertically on a white background, each with a cable extending downward.

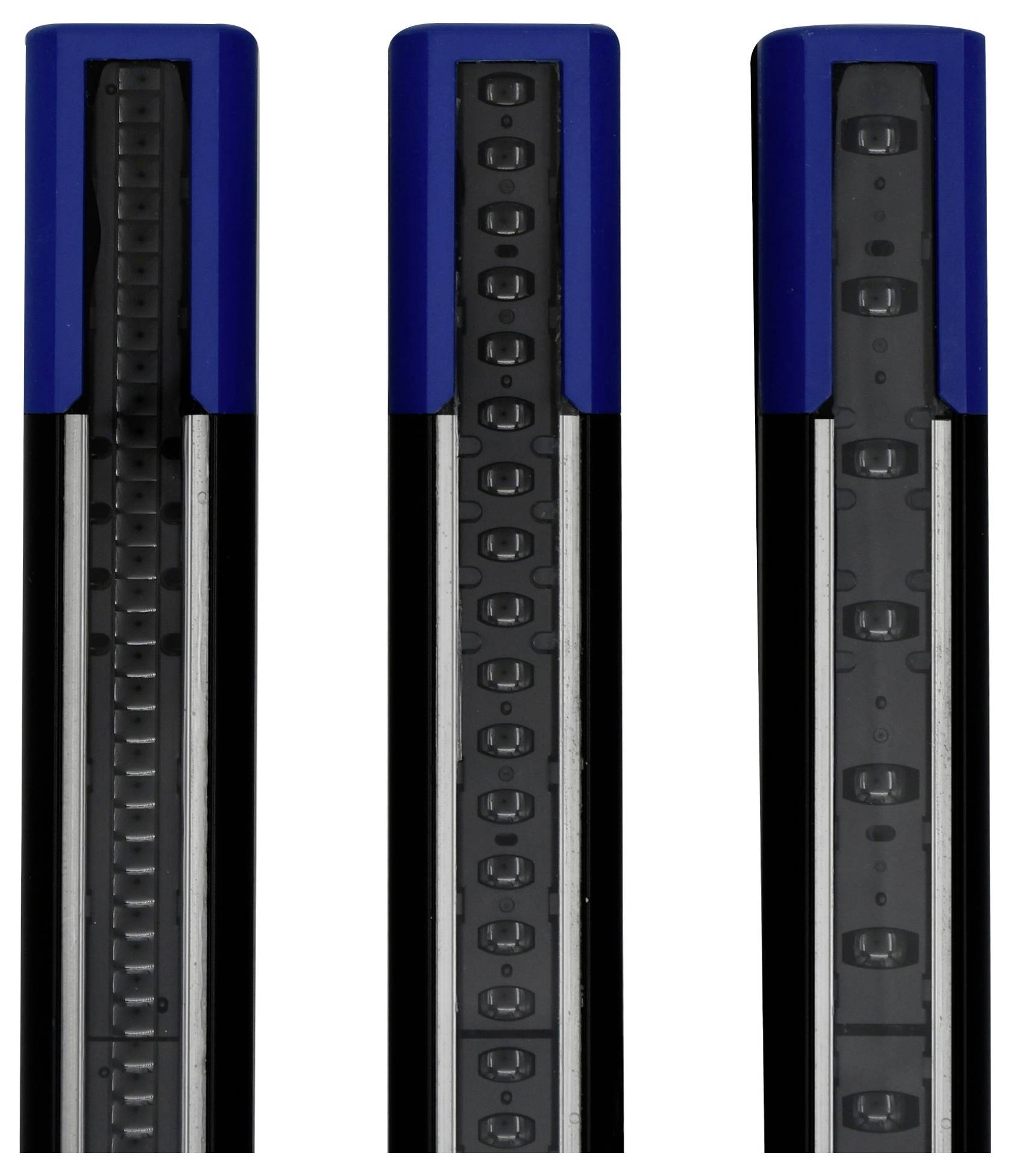

Three side-by-side close-ups of the same black-and-blue device rail showing different central tracks: ridged, slotted, and oval-buttoned.

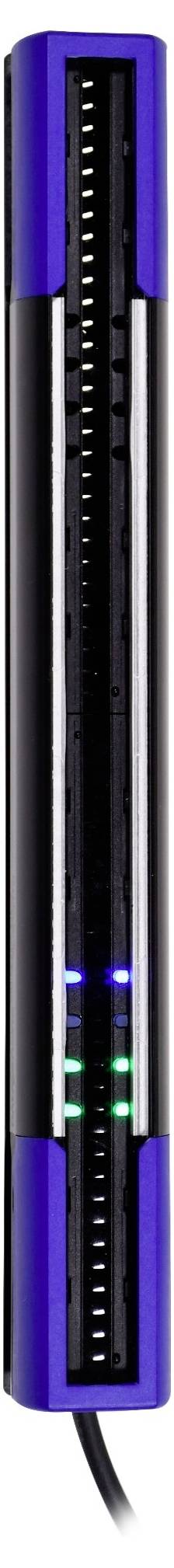

Close-up of a vertical blue-and-black LED light strip with illuminated green, blue, and white LEDs and a black cable extending below.

1/3

Product type

Light grid

Length

35 mm

Height

1060.5 mm

Type

DS4

Model

Receiver

Transmitter

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

DS4 Base light grid for detection and measurement

1050 mm controlled height at 5 mm beam distance
Combined outputs: Analogue (0-10V/4-20mA), digital and IO-Link
Long range up to 5 meters

Our service for you

Technical specifications

Housing material aluminum/PBT
Optics window PMMA

Product type: Light grid

Type: DS4

Model: Receiver
Transmitter

Operating voltage: 24 V DC

Min. operating voltage: 19.2 V

Max. operating voltage: 28.8 V

Operating voltage: 19.2 - 28.8 V

Max. current consumption: 360 mA

Response time: 7.30 ms

Switching voltage (max.): 28.8 V DC

Switching current (max.): 100 mA

Optical resolution: 10 x 5 mm

Smallest detectable object size (diameter): 10 mm

Connector: M12 (5-pin)

Cable length: 200 mm

Transmitter type: LED IR

Wavelength: 850 nm

Range (min.): 0.2 m

Range (max.): 5 m

Outputs: Digital
Analogue
IO link

Output signal (min.): 4 mA

Output signal (max.): 20 mA

Output current: 100 mA

Certification (sensors): CE

Rays: 210

Beam spacing: 5 mm

Individual mirrors: 210

Mirror spacing: 5 mm

Protective field width (min.): 200 mm

Protective field width (max.): 5000 mm

Protective field height: 1050 mm

Mirror height: 1050 mm

Alu rail height: 1060.5 mm

Total height: 1060.5

Content: 1 pc(s)

: IP65/67

Length: 35 mm

Width: 40 mm

Height: 1060.5 mm

Dim: (L x W x H) 35 x 40 x 1060.5 mm

Min. temperature: -30 °C

Max. temperature: 55 °C

Variants(All information is without VAT, plus shipping costs)

Length

Width

IP rating

Range (max.)

Height

Product type

Datasensing Light grid DS4 Range (max.) 5 m Protective field height 1050 mm 24 V DC No. of rays: 210

Item no:3760014

Unavailable

Conrad Electronic

This article

35 mm

40 mm

IP65/67

5 m

1060.5 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light barrier DS4 Range (max.) 5 m Protective field height 300 mm 24 V DC No. of rays: 60

Item no:3760009

Unavailable

Conrad Electronic

310.5 mm

35 mm

IP65/67

5 m

40 mm

Light barrier

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light barrier DS4 Range (max.) 5 m Protective field height 450 mm 24 V DC No. of rays: 90

Item no:3760010

Unavailable

Conrad Electronic

460.5 mm

35 mm

IP65/67

5 m

40 mm

Light barrier

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light barrier DS4 Range (max.) 5 m Protective field height 600 mm 24 V DC No. of rays: 120

Item no:3760011

Unavailable

Conrad Electronic

640.5 mm

35 mm

IP65/67

5 m

40 mm

Light barrier

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light barrier DS4 Range (max.) 5 m Protective field height 750 mm 24 V DC No. of rays: 150

Item no:3760012

Unavailable

Conrad Electronic

760.5 mm

35 mm

IP65/67

5 m

40 mm

Light barrier

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light barrier DS4 Range (max.) 5 m Protective field height 900 mm 24 V DC No. of rays: 180

Item no:3760013

Unavailable

Conrad Electronic

40 mm

35 mm

IP65/67

5 m

910.5 mm

Light barrier

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1050 mm 24 V DC No. of rays: 42

Item no:3760080

Unavailable

Conrad Electronic

40 mm

35 mm

IP65

13 m

1059 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1200 mm 24 V DC No. of rays: 48

Item no:3760081

Unavailable

Conrad Electronic

35 mm

40 mm

IP65

13 m

1209 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1350 mm 24 V DC No. of rays: 54

Item no:3760082

Unavailable

Conrad Electronic

40 mm

35 mm

IP65

13 m

1359 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1500 24 V DC No. of rays: 60

Item no:3760083

Unavailable

Conrad Electronic

40 mm

35 mm

IP65

13 m

1509 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3760014 Datasensing Light grid DS4 Range (max.) 5 m Protective field height 1050 mm 24 V DC No. of rays: 210

User & Safety Instructions

User & Safety Instructions 3760014 Datasensing Light grid DS4 Range (max.) 5 m Protective field height 1050 mm 24 V DC No. of rays: 210

Description

Basic version of a measuring light grid for simple industrial applications that combines reliable performance with simple configuration via IO-Link or cable.

This text is machine translated.

Scope of delivery

EMitter (transmitter)
Receivers

Description

Basic version of a measuring light grid for simple industrial applications that combines reliable performance with simple configuration via IO-Link or cable.
