Name: Datasensing Light grid DS4 Range (max.) 5 m Protective field height 1650 mm 24 V DC No. of rays: 330
Brand: Datasensing
SKU: 3760027

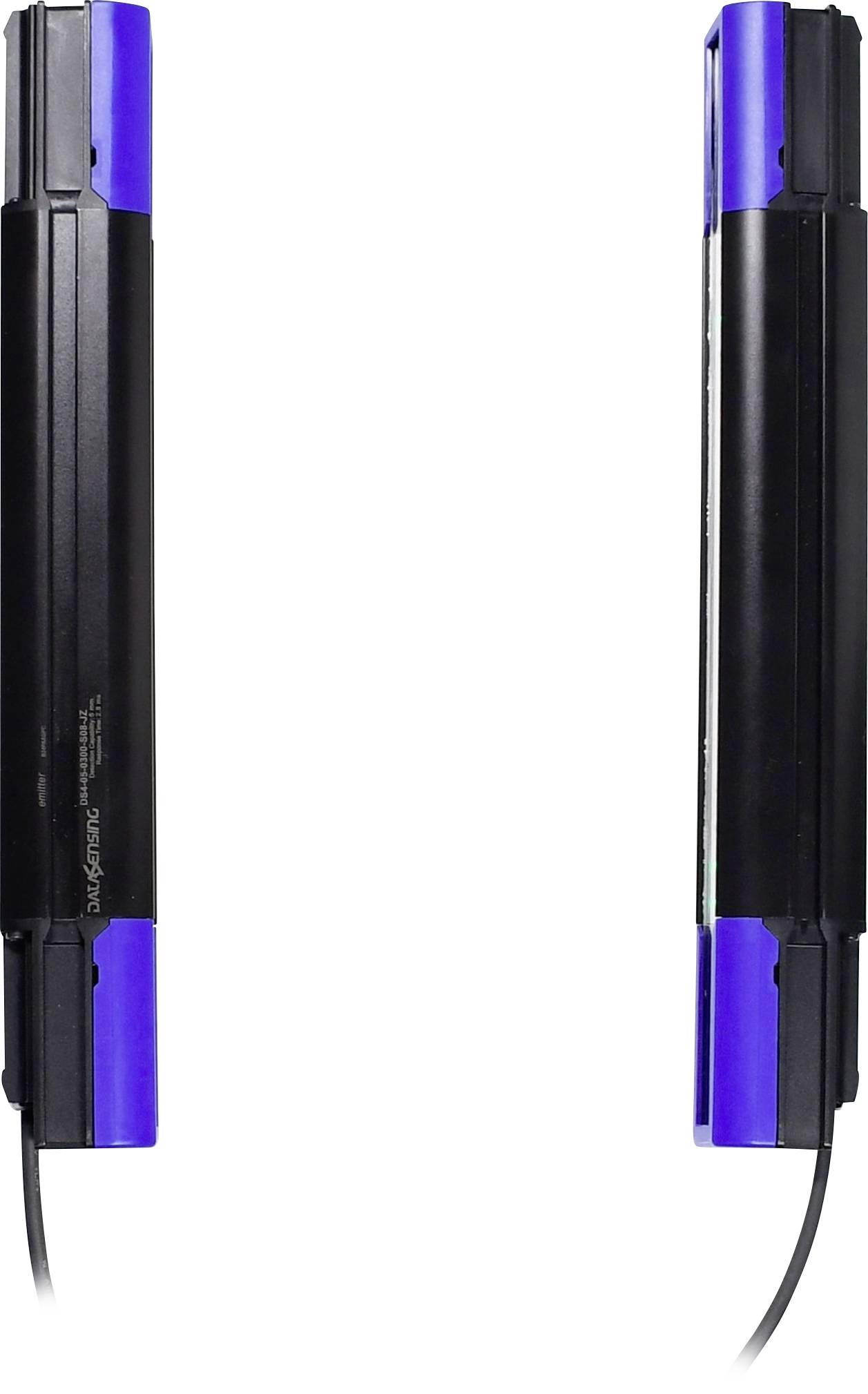

Two black-and-blue vertical bar sensors with cables, shown side by side on a white background.<br>

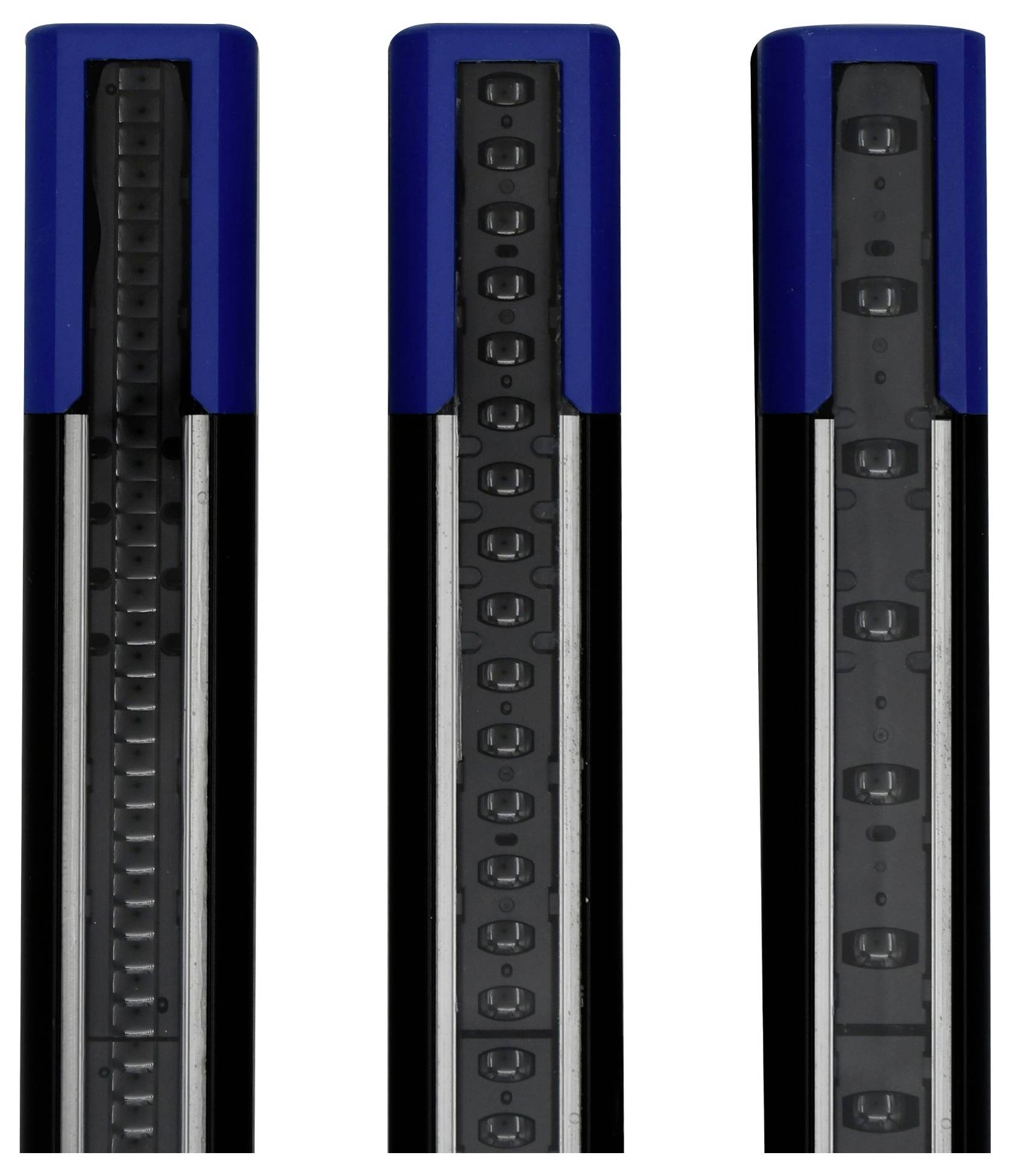

Three close-up views of a blue-and-black zipper or track mechanism showing different sides of the fastener teeth and slider channel.

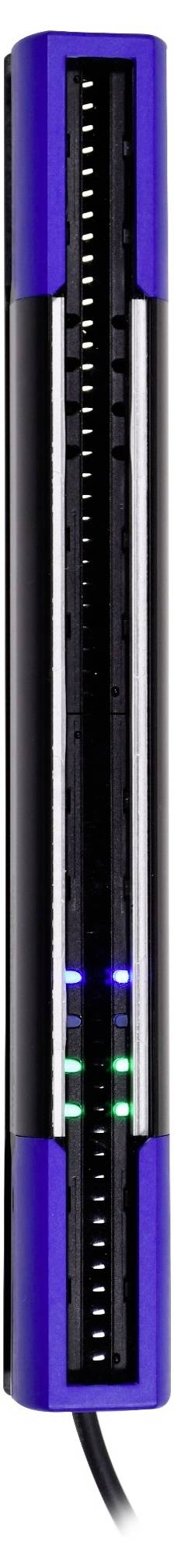

Close-up of a purple vertical LED device with a black center strip, glowing blue and green indicator lights, and a cable exiting the bottom.

1/3

Product type

Light grid

Length

35 mm

Height

1660.5 mm

Type

DS4

Model

Receiver

Transmitter

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

DS4 Standard Measuring Grid Light – DS4 Series

High-controlled height of 1650 mm
Versatile configuration via IO-Link or Wi-Fi APP GUI
Advanced functions like detection of transparent objects and beam crossing

Our service for you

Technical specifications

Product type: Light grid

Type: DS4

Model: Receiver
Transmitter

Range of uses: PPE

Operating voltage: 24 V DC

Min. operating voltage: 19.2 V DC

Max. operating voltage: 28.8 V DC

Operating voltage: 19.2 - 28.8 V DC

Max. current consumption: 360 mA

Response time: 10.9 ms

Switching voltage (max.): 28.8 V DC

Switching current (max.): 100 mA

Optical resolution: 5 x 5 mm

Smallest detectable object size (diameter): 5 mm

Connector: M12 plug (5-pin)
M12 plug (8-pin)

Cable length: 0.2 m

Transmitter type: LED IR

Wavelength: 850 nm

Range (min.): 0.2 m

Range (max.): 5 m

Outputs: Analogue
Digital
IO link
RS485

Output signal (min.): 4 mA

Output signal (max.): 20 mA

Output current: 100 mA

Certification (sensors): CE
cULus

Rays: 330

Beam spacing: 5 mm

Protective field width (min.): 200 mm

Protective field width (max.): 5000 mm

Protective field height: 1650 mm

Alu rail height: 1660.5 mm

Total height: 1660.5 mm

Content: 1 pc(s)

: IP65
IP67

Length: 35 mm

Width: 40 mm

Height: 1660.5 mm

Dim: (L x W x H) 35 x 40 x 1660.5 mm

Min. temperature: -30 °C

Max. temperature: 55 °C

Nominal voltage: 24 V DC
