Name: Datasensing Light grid DS4 Range (max.) 5 m Protective field height 1800 24 V DC No. of rays: 360
Brand: Datasensing
SKU: 3760040

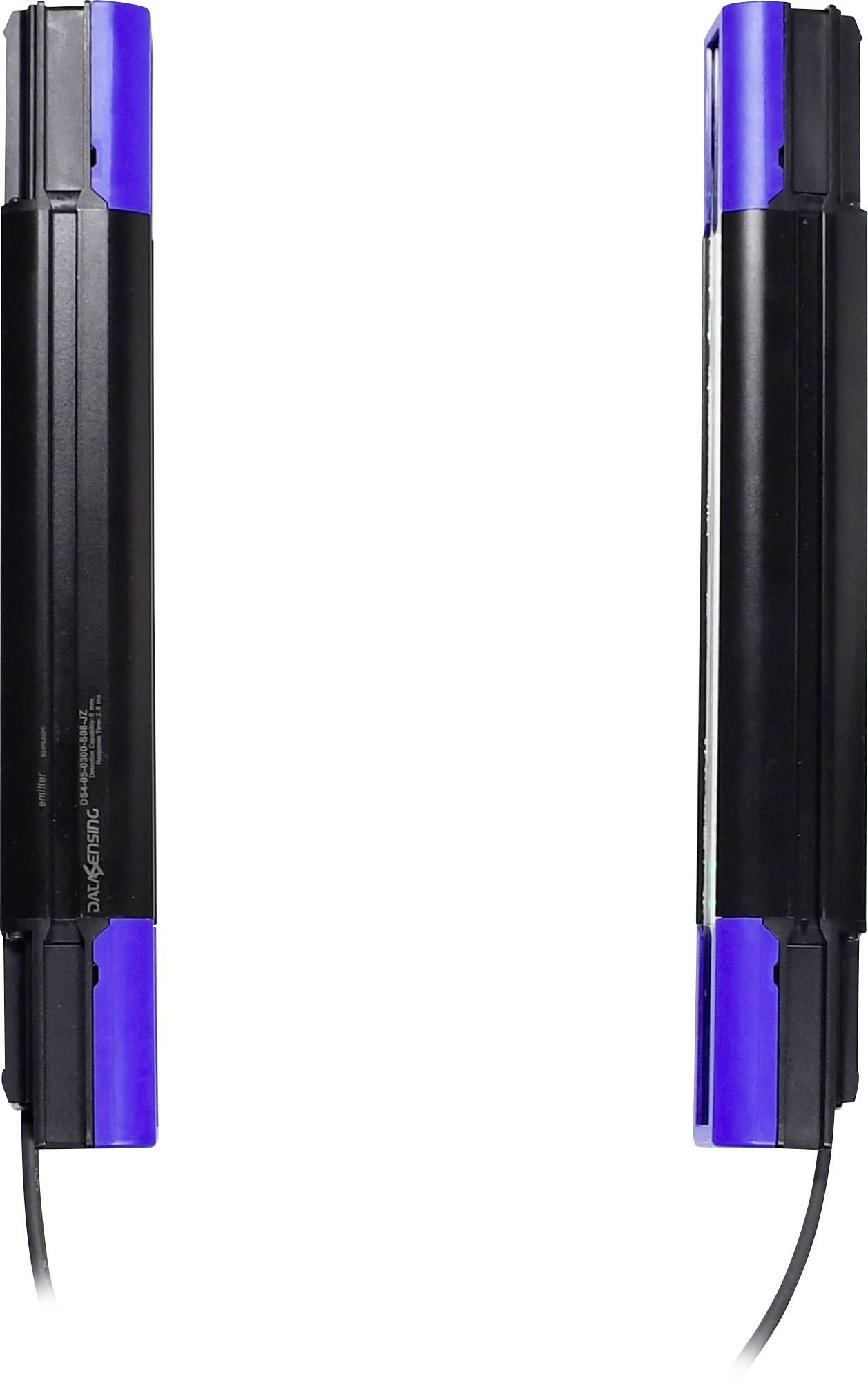

Two black-and-blue industrial sensor units shown side by side with cables attached on a white background.

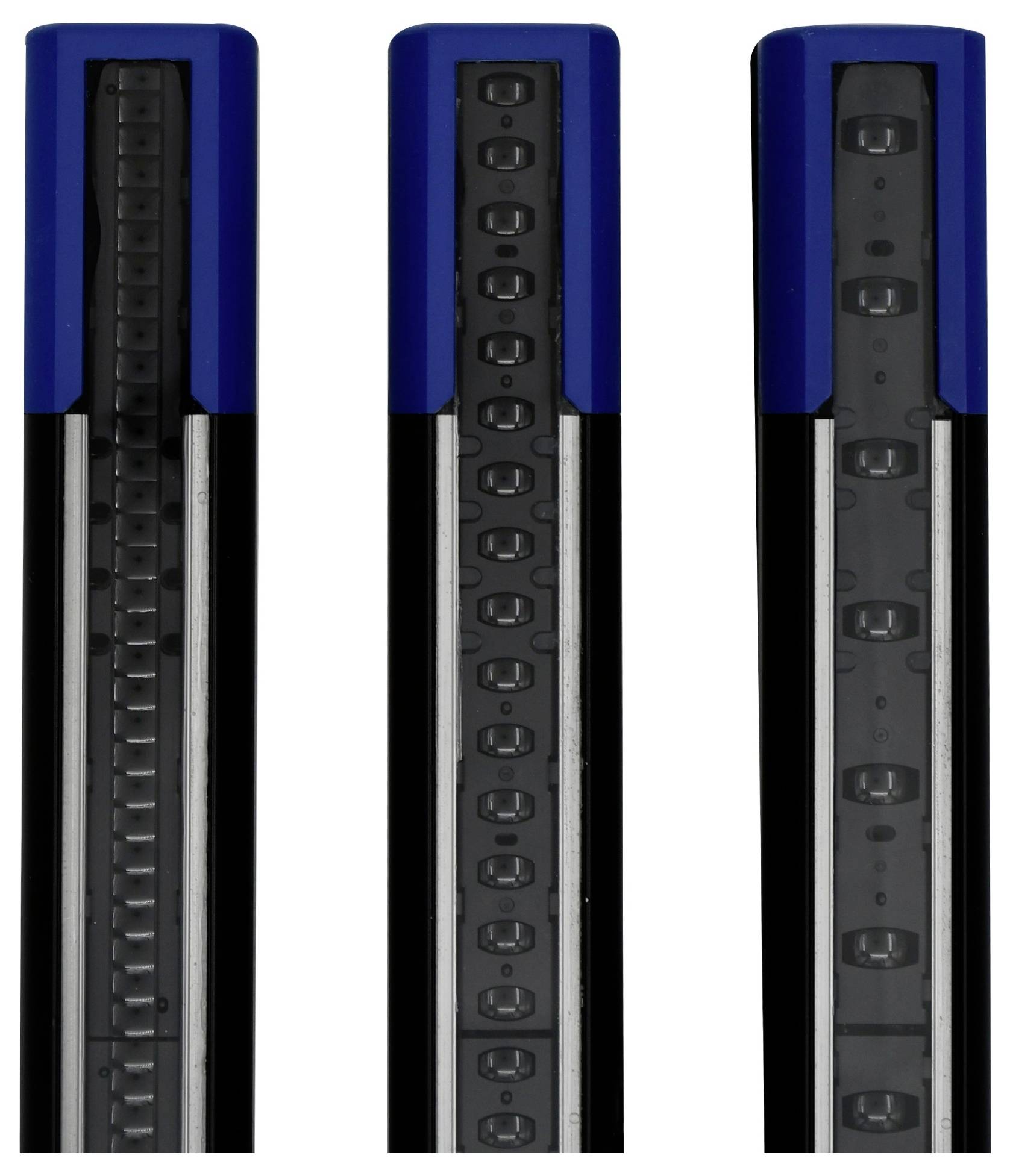

Three vertical views of a blue-and-black mechanical device, showing different internal rails and recessed slots or buttons.

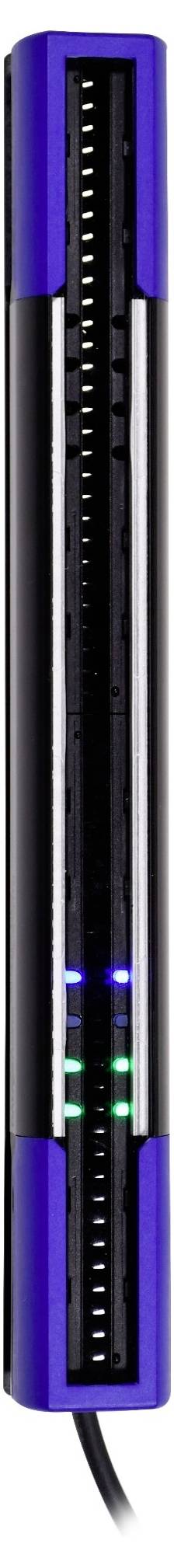

Close-up of a blue and black vertical LED light strip with glowing green and blue lights, showing a cable at the bottom.<br>

1/3

Product type

Light grid

Length

40 mm

Height

1810.5 mm

Type

DS4

Model

Receiver

Transmitter

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

DS4 Standard Measuring Grid Light – DS4 Series

Precise measurement and detection with 5 mm of beam distance.
Configuration via IO-Link or wireless via AppGUI.
Integrated Ethernet TCP/IP interface
Clear object detection.

Our service for you

Technical specifications

Case made of aluminum

Product type: Light grid

Type: DS4

Model: Receiver
Transmitter

Features: Incl. enclosure

Operating voltage: 24 V DC

Min. operating voltage: 19.2 V DC

Max. operating voltage: 28.8 V DC

Operating voltage: 19.2 - 28.8 V DC

Max. current consumption: 360 mA

Response time: 11.8 ms

Switching voltage (max.): 28.8 V DC

Switching current (max.): 100 mA

Optical resolution: 5 x 5 mm

Smallest detectable object size (diameter): 3.5 mm

Cable length: 0.2 m

Transmitter type: LED IR

Wavelength: 850 nm

Range (min.): 0.2 m

Range (max.): 5 m

Outputs: Digital
Analogue
IO link

Output signal (min.): 4 mA

Output signal (max.): 20 mA

Output current: 100 mA

Certification (sensors): CE
cULus

Rays: 360

Beam spacing: 5 mm

Protective field width (min.): 200 mm

Protective field width (max.): 5000 mm

Protective field height: 1800

Alu rail height: 1810.5 mm

Total height: 1810.5

Content: 1 pc(s)

: IP65
IP67

Length: 40 mm

Width: 35 mm

Height: 1810.5 mm

Dim: (L x W x H) 40 x 35 x 1810.5 mm

Min. temperature: -30 °C

Max. temperature: 55 °C

Nominal voltage: 24 V DC

Variants(All information is without VAT, plus shipping costs)

Length

Operating voltage

Width

Range (max.)

Height

Product type

Datasensing Light barrier DS4 Range (max.) 5 m Protective field height 450 mm 24 V DC Safety class: 2 No. of rays: 90

Item no:3760031

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

5 m

460.5 mm

Light barrier

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light barrier DS4 Range (max.) 5 m Protective field height 600 mm 24 V DC No. of rays: 120

Item no:3760032

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

5 m

610.5 mm

Light barrier

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1050 mm 24 V DC No. of rays: 42

Item no:3760101

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1059 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1050 mm 24 V DC No. of rays: 42

Item no:3760089

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1059 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1200 24 V DC No. of rays: 48

Item no:3760102

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1209 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1200 24 V DC No. of rays: 48

Item no:3760090

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1209 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1350 24 V DC No. of rays: 54

Item no:3760091

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1359 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1350 mm 24 V DC No. of rays: 54

Item no:3760103

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1359 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1500 24 V DC No. of rays: 60

Item no:3760092

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1509 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1500 mm 24 V DC No. of rays: 60

Item no:3760104

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1509 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3760040 Datasensing Light grid DS4 Range (max.) 5 m Protective field height 1800 24 V DC No. of rays: 360

User & Safety Instructions

User & Safety Instructions 3760040 Datasensing Light grid DS4 Range (max.) 5 m Protective field height 1800 24 V DC No. of rays: 360

Description

Versatile area sensor for industrial measuring and monitoring tasks, which offers highest flexibility in setup thanks to APP programming and modern communication interfaces (IO-Link, ETHERNET).
