Name: Datasensing Light grid DS4 Range (max.) 5 m Protective field height 45 mm 24 V DC No. of rays: 90
Brand: Datasensing
SKU: 3760019

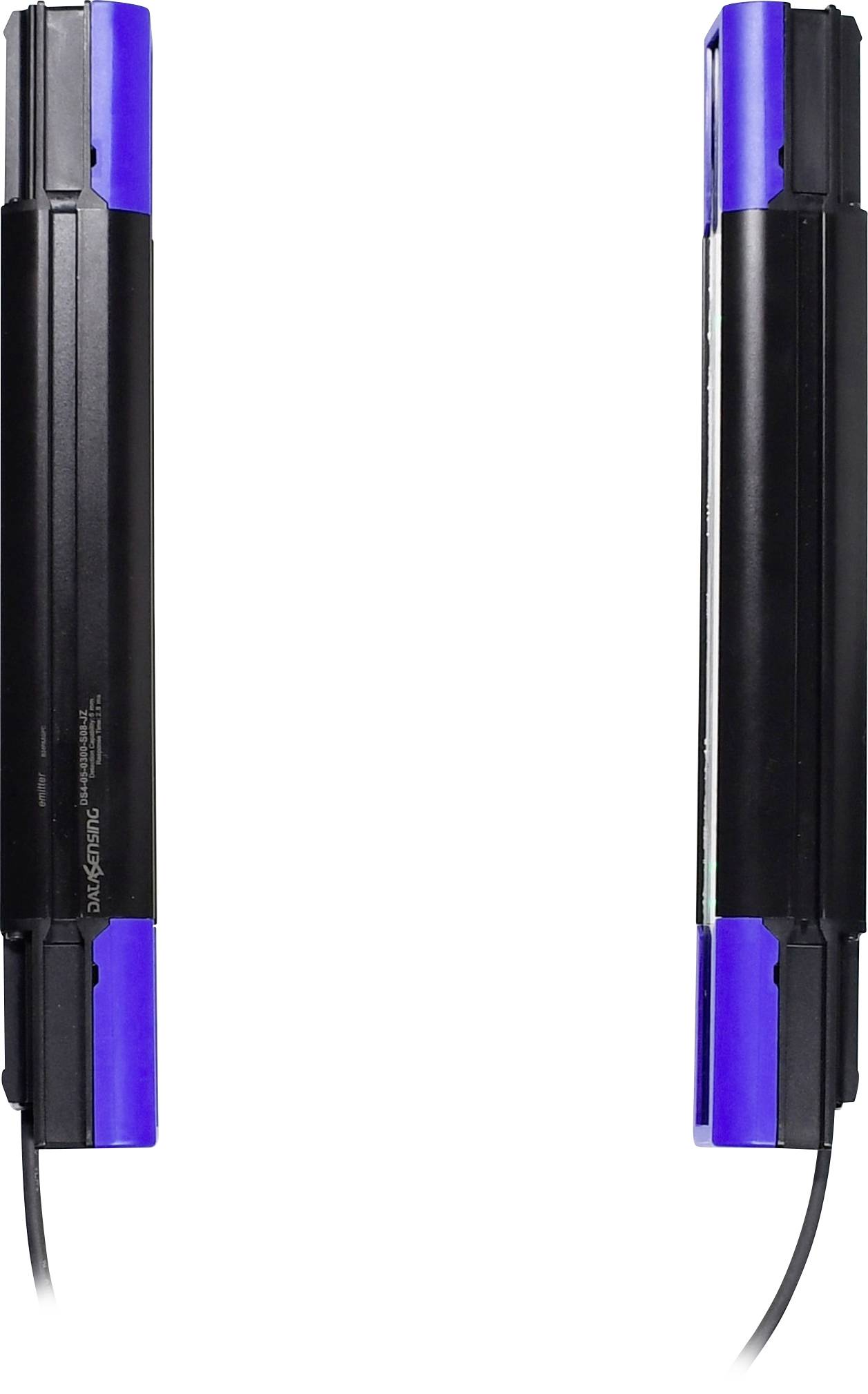

Two black-and-blue rectangular sensors facing each other with cables attached, shown on a white background.

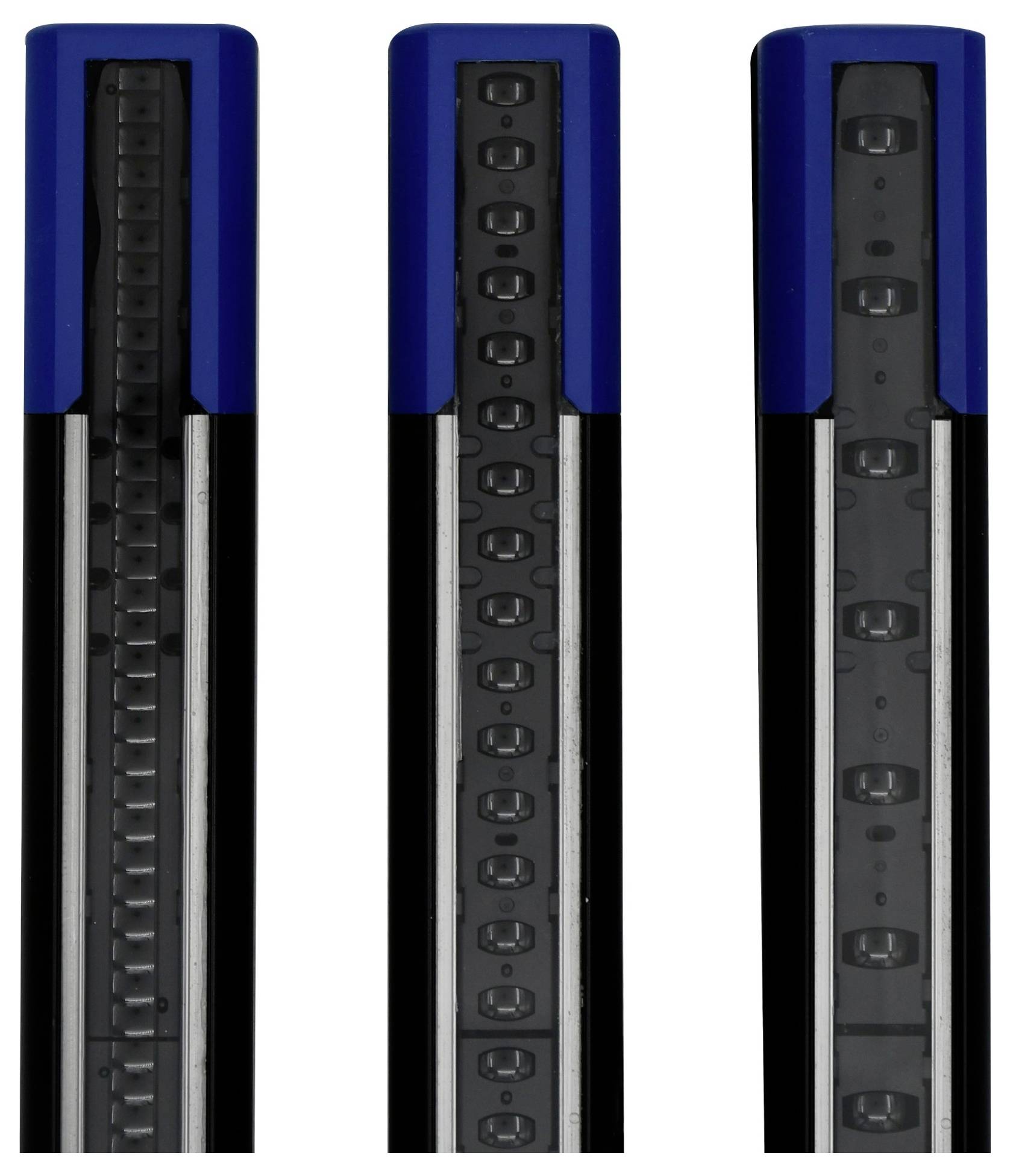

Three close-up views of a blue-and-black vertical machine component showing different side details and rows of black rollers or fasteners.

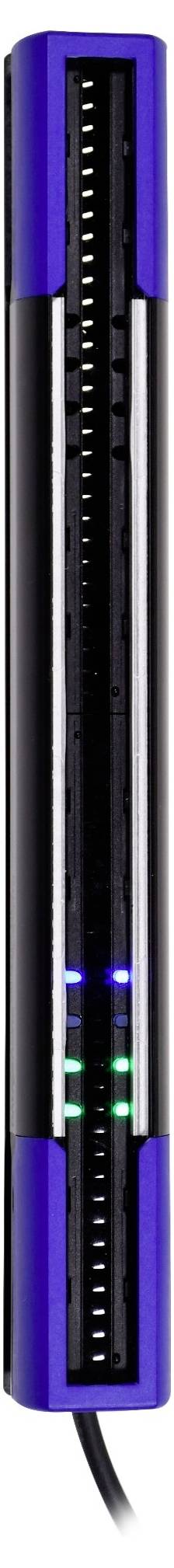

Close-up of a blue-and-black LED-lit electronic device with a vertical slot and cable exiting the bottom.

1/3

Product type

Light grid

Length

40 mm

Height

460.5 mm

Type

DS4

Model

Receiver

Transmitter

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

DS4 Standard Measuring Grid Light – DS4 Series

Clear object detection possible
Interfaces: IO-Link, RS485 and analog output (V/A)
Wireless programming via AppGUI

Our service for you

Technical specifications

Housing made of aluminum/PBT

Product type: Light grid

Type: DS4

Model: Receiver
Transmitter

Range of uses: PPE

Operating voltage: 24 V DC

Min. operating voltage: 19.2 V DC

Max. operating voltage: 28.8 V DC

Operating voltage: 19.2 - 28.8 V DC

Max. current consumption: 360 mA

Response time: 3.7 ms

Switching voltage (max.): 28.8 V DC

Switching current (max.): 100 mA

Optical resolution: 5 x 5 mm

Smallest detectable object size (diameter): 3.5 mm

Connector: M12 (5-pin)
M12 (8-pin)

Cable length: 200 mm

Transmitter type: LED IR

Wavelength: 850 nm

Range (min.): 0.2 m

Range (max.): 5 m

Outputs: Analogue
Digital
IO link
RS485

Output signal (min.): 4 mA

Output signal (max.): 20 mA

Output current: 100 mA

Certification (sensors): CE
cULus

Rays: 90

Beam spacing: 5 mm

Protective field width (min.): 200 mm

Protective field width (max.): 5000 mm

Protective field height: 45 mm

Alu rail height: 460.5 mm

Total height: 460.5 mm

Content: 1 pc(s)

: IP65
IP67

Length: 40 mm

Width: 35 mm

Height: 460.5 mm

Dim: (L x W x H) 40 x 35 x 460.5 mm

Min. temperature: -30 °C

Max. temperature: 55 °C

Nominal voltage: 24 V DC

Variants(All information is without VAT, plus shipping costs)
