Name: Datasensing Light grid DS4 Range (max.) 5 m Protective field height 750 mm No. of rays: 150
Brand: Datasensing
SKU: 3760038

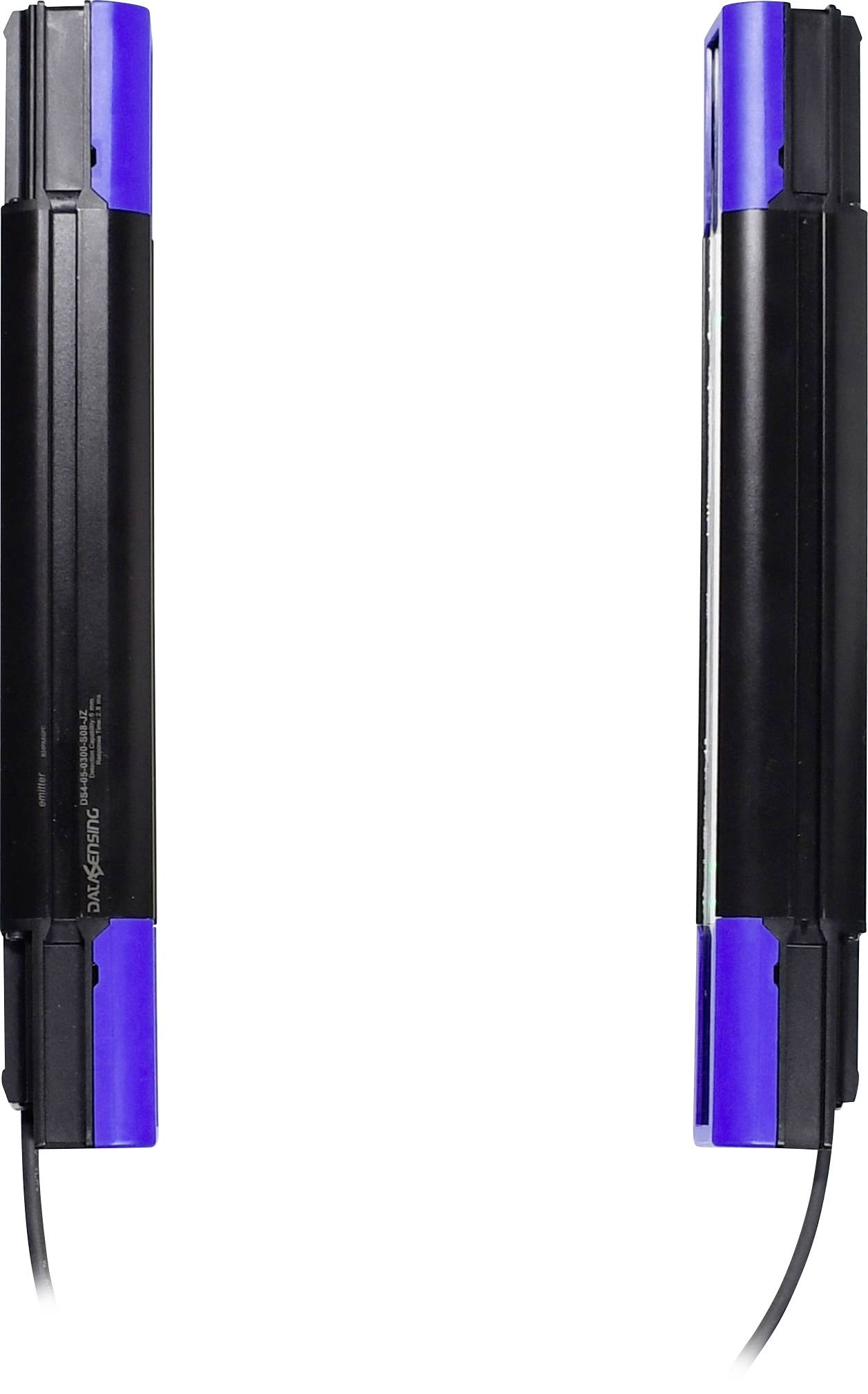

Two black-and-blue rectangular sensor units facing each other with cables, forming an optical safety light curtain.

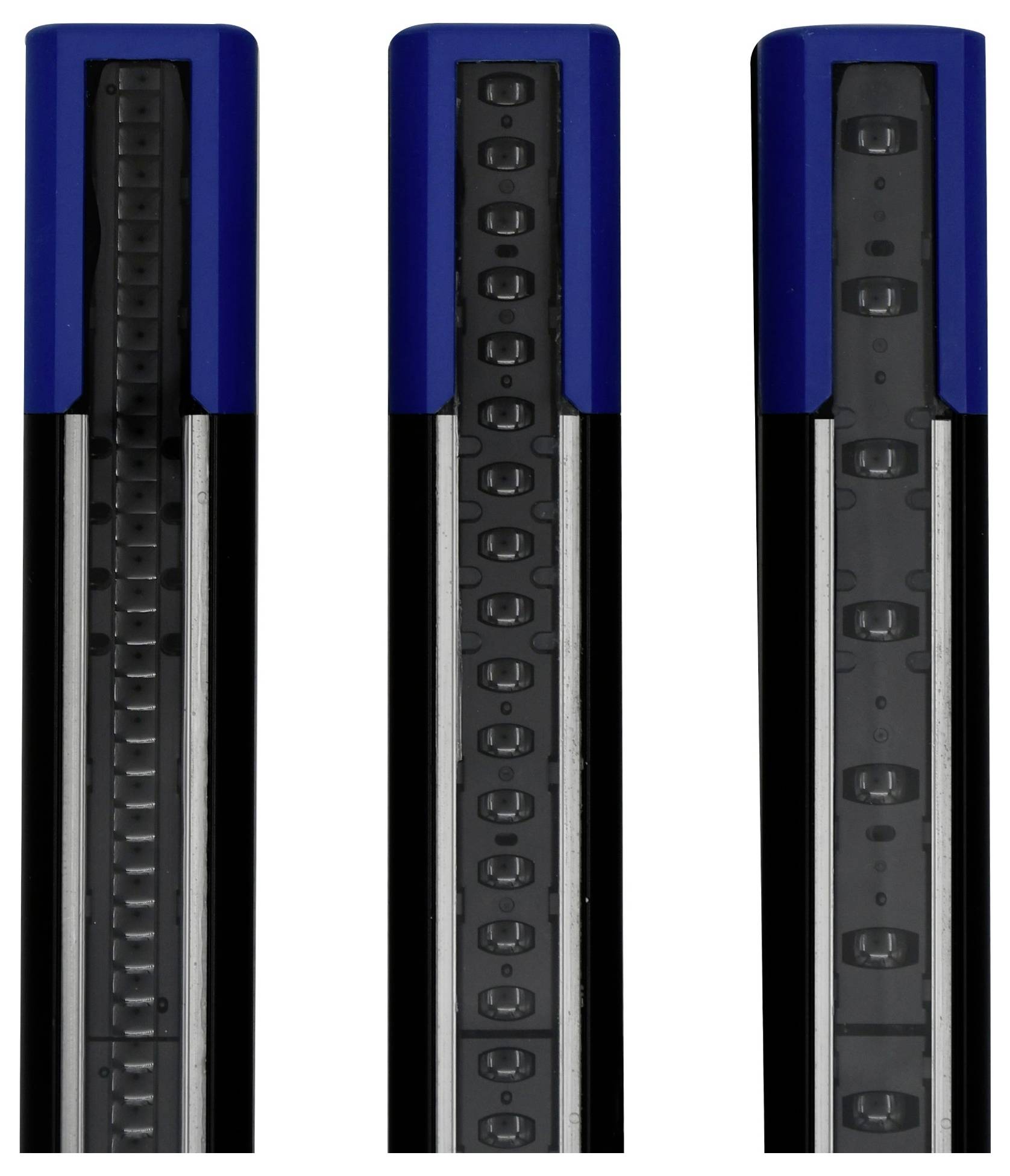

Three close-up views of a blue-and-black vertical device strip, showing different side panels with evenly spaced oval openings and ridged centers.

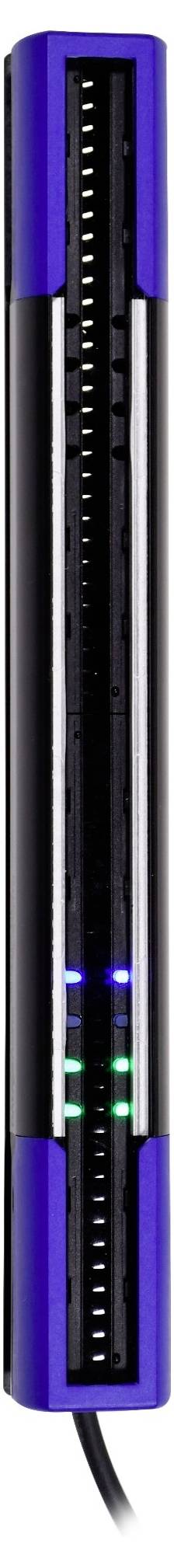

Close-up of a blue-and-black electronic connector or device port with illuminated green and blue indicator lights along a vertical slot.

1/3

Product type

Light grid

Length

40 mm

Height

760.5 mm

Type

DS4

Model

Receiver

Transmitter

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

DS4 Standard Measuring Grid Light – DS4 Series

Compact design with IO-Link and Ethernet TCP/IP interface
High resolution thanks to 5 mm beam distance
Easy configuration via AppGUI (Wi-Fi)

Our service for you

Technical specifications

Aluminium casing material

Product type: Light grid

Type: DS4

Model: Receiver
Transmitter

Min. operating voltage: 19.2 V DC

Max. operating voltage: 28.8 V DC

Operating voltage: 19.2 - 28.8 V DC

Max. current consumption: 360 mA

Response time: 5.5 ms

Switching voltage (max.): 28.8 V DC

Switching current (max.): 100 mA

Smallest detectable object size (diameter): 10 mm

Connector: M12 plug (5-pin)
M12 plug (8-pin)

Cable length: 0.2 m

Transmitter type: LED IR

Wavelength: 850 nm

Range (min.): 0.2 m

Range (max.): 5 m

Outputs: Analogue
Digital
IO link

Output signal (min.): 4 mA

Output signal (max.): 20 mA

Output current: 100 mA

Certification (sensors): CE
cULus

Rays: 150

Beam spacing: 5 mm

Mirror spacing: 5 mm

Protective field width (min.): 200 mm

Protective field width (max.): 5000 mm

Protective field height: 750 mm

Mirror height: 750 mm

Alu rail height: 760.5 mm

Total height: 760.5 mm

Content: 1 pc(s)

: IP65
IP67

Length: 40 mm

Width: 35 mm

Height: 760.5 mm

Dim: (L x W x H) 40 x 35 x 760.5 mm

Min. temperature: -30 °C

Max. temperature: 55 °C

Nominal voltage: 24 V DC

Variants(All information is without VAT, plus shipping costs)

Length

Operating voltage

Width

Range (max.)

Height

Product type

Datasensing Light barrier DS4 Range (max.) 5 m Protective field height 450 mm 24 V DC Safety class: 2 No. of rays: 90

Item no:3760031

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

5 m

460.5 mm

Light barrier

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light barrier DS4 Range (max.) 5 m Protective field height 600 mm 24 V DC No. of rays: 120

Item no:3760032

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

5 m

610.5 mm

Light barrier

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1050 mm 24 V DC No. of rays: 42

Item no:3760101

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1059 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1050 mm 24 V DC No. of rays: 42

Item no:3760089

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1059 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1200 24 V DC No. of rays: 48

Item no:3760102

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1209 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1200 24 V DC No. of rays: 48

Item no:3760090

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1209 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1350 24 V DC No. of rays: 54

Item no:3760091

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1359 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1350 mm 24 V DC No. of rays: 54

Item no:3760103

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1359 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1500 24 V DC No. of rays: 60

Item no:3760092

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1509 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1500 mm 24 V DC No. of rays: 60

Item no:3760104

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1509 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1
