Name: Datasensing Light grid DS4 Range (max.) 7 m Protective field height 600 mm 24 V DC No. of rays: 60
Brand: Datasensing
SKU: 3760053

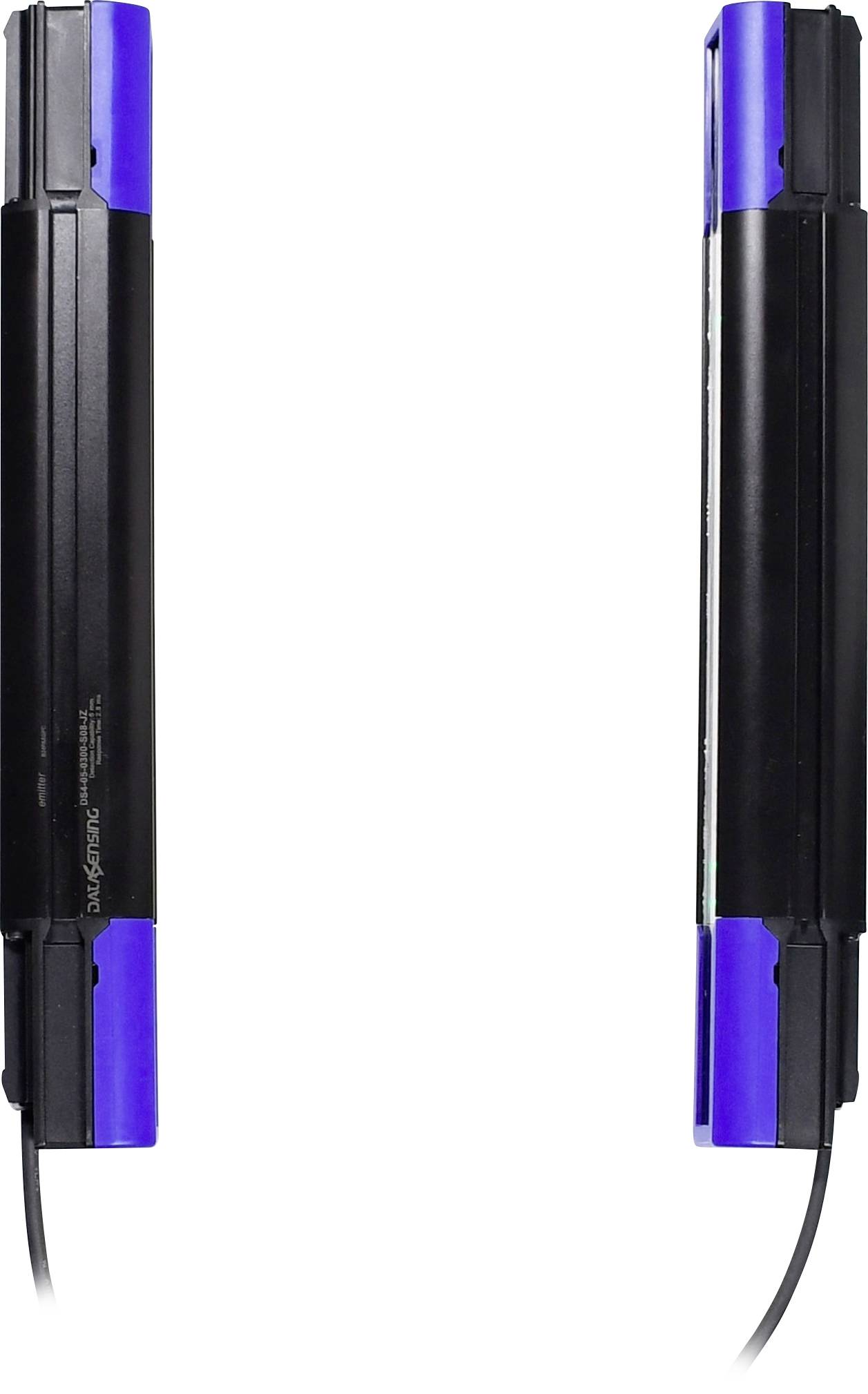

Two black and blue rectangular sensor modules facing each other, connected by cables, likely a photoelectric safety light curtain.

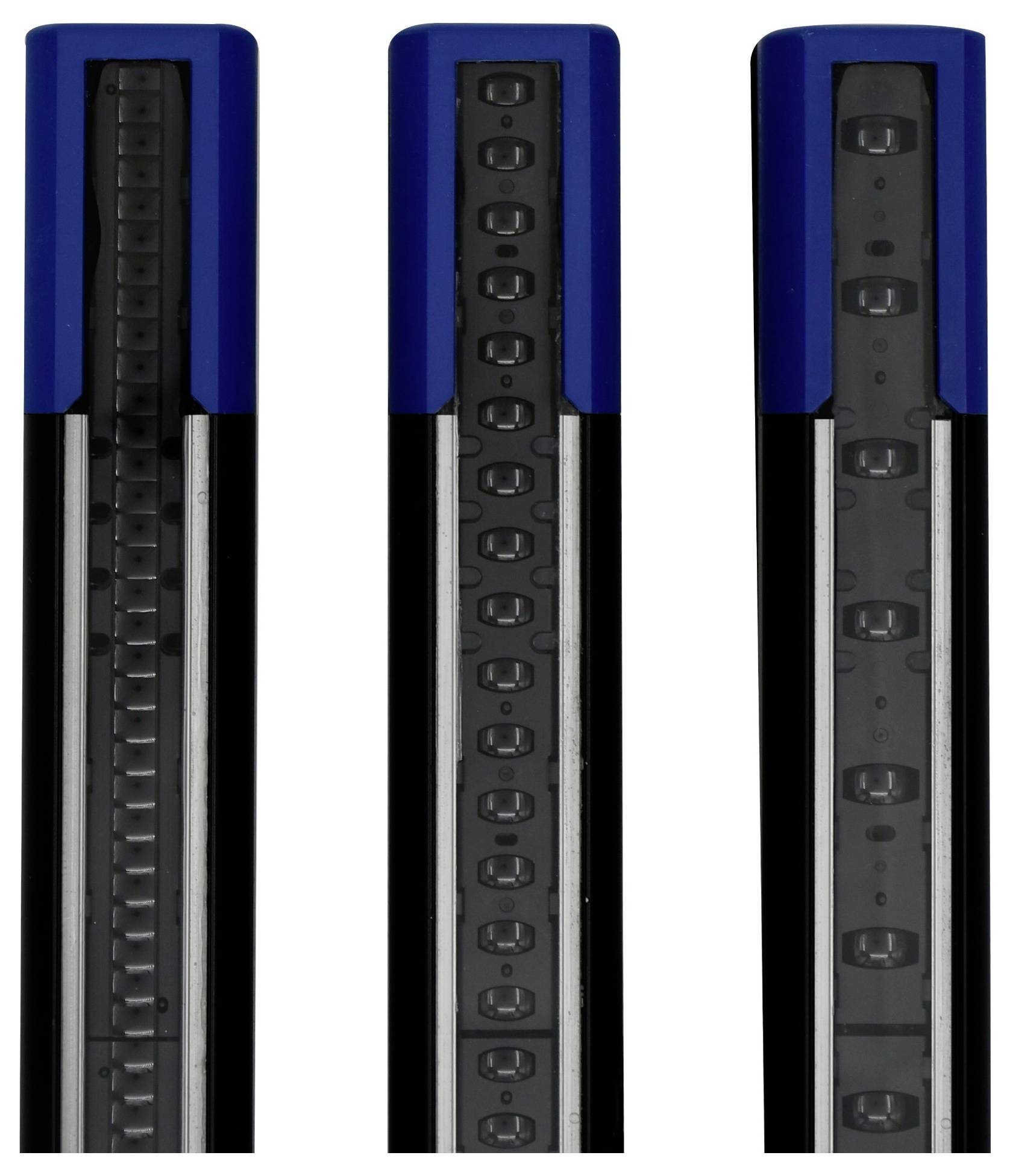

Three vertical close-ups of a blue-and-black mechanical rail or slider mechanism, each showing a different internal track detail.

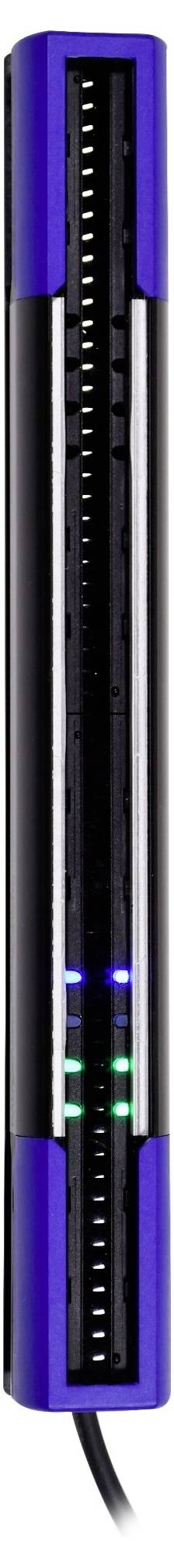

Close-up of a blue LED-lit electronic device with a narrow vertical slot or port down the center and a cable exiting the bottom.

1/3

Product type

Light grid

Length

35 mm

Height

609 mm

Type

DS4

Model

Receiver

Transmitter

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

DS4 standard detection and measurement light grid

Versatile configuration via IO-Link or wireless via AppGUI
Built-in detection of transparent objects
RS485 communication interface for data exchange
High robustness with protection class IP67

Our service for you

Technical specifications

Housing material: Aluminium / PBT

Product type: Light grid

Type: DS4

Model: Receiver
Transmitter

Operating voltage: 24 V DC

Min. operating voltage: 19.2 V DC

Max. operating voltage: 28.8 V DC

Operating voltage: 19.2 - 28.8 V DC

Max. current consumption: 360 mA

Response time: 2.8 ms

Switching voltage (max.): 28.8 V DC

Switching current (max.): 100 mA

Optical resolution: 10 x 10

Smallest detectable object size (diameter): 14 mm

Connector: M12 plug (5-pin)
M12 plug (8-pin)

Cable length: 0.2 m

Transmitter type: LED IR

Wavelength: 850 nm

Range (min.): 0.2 m

Range (max.): 7 m

Outputs: IO link

Output signal (min.): 4 mA

Output signal (max.): 20 mA

Output current: 100 mA

Certification (sensors): CE
cULus

Rays: 60

Beam spacing: 10 mm

Protective field width (min.): 200 mm

Protective field width (max.): 7000 mm

Protective field height: 600 mm

Alu rail height: 609 mm

Total height: 609 mm

Content: 1 pc(s)

: IP65
IP67

Length: 35 mm

Width: 40 mm

Height: 609 mm

Dim: (L x W x H) 35 x 40 x 609 mm

Min. temperature: -30 °C

Max. temperature: 55 °C

Nominal voltage: 24 V DC

Variants(All information is without VAT, plus shipping costs)

Length

Operating voltage

Width

Range (max.)

Height

Product type

Datasensing Light barrier DS4 Range (max.) 5 m Protective field height 450 mm 24 V DC Safety class: 2 No. of rays: 90

Item no:3760031

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

5 m

460.5 mm

Light barrier

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light barrier DS4 Range (max.) 5 m Protective field height 600 mm 24 V DC No. of rays: 120

Item no:3760032

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

5 m

610.5 mm

Light barrier

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1050 mm 24 V DC No. of rays: 42

Item no:3760101

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1059 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1050 mm 24 V DC No. of rays: 42

Item no:3760089

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1059 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1200 24 V DC No. of rays: 48

Item no:3760102

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1209 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1200 24 V DC No. of rays: 48

Item no:3760090

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1209 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1350 24 V DC No. of rays: 54

Item no:3760091

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1359 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1350 mm 24 V DC No. of rays: 54

Item no:3760103

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1359 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1500 24 V DC No. of rays: 60

Item no:3760092

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1509 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1500 mm 24 V DC No. of rays: 60

Item no:3760104

Unavailable

Conrad Electronic

40 mm

24 V DC

35 mm

13 m

1509 mm

Light grid

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3760053 Datasensing Light grid DS4 Range (max.) 7 m Protective field height 600 mm 24 V DC No. of rays: 60

User & Safety Instructions

User & Safety Instructions 3760053 Datasensing Light grid DS4 Range (max.) 7 m Protective field height 600 mm 24 V DC No. of rays: 60

Description

Versatile area sensor for detection and measurement in various industrial applications. It can be easily programmed via IO-Link or wirelessly, offers advanced functions like Blanking and Pattern Match and has digital as well as analogue outputs.
