Buy Datasensing Safety light barrier SH4 Range (max.) 10 m 24 V DC Safety class: 3 No. of rays: 135

Two yellow-and-blue industrial sensor/light curtain units shown side by side, with cables at the bottom and illuminated green indicator lights on one unit.

A descending staircase of vertical gold bars, each slightly shorter than the last, forming a diagonal decline from top left to bottom right.

Two yellow-and-blue industrial sensor bars with cables, shown diagonally on a white background.<br>

1/3

Product type

Safety light barrier

Length

35 mm

Height

1359 mm

Type

SH4

Model

Receiver

Transmitter

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

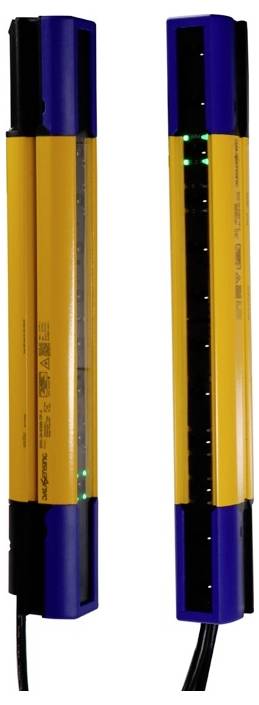

Datasensing SH4-14-1350-A-12 safety light curtain

Advanced functionality (including 4 signal muting, blanking and reduced resolution)
Integrated pointer (laser alignment aid)
Wireless configuration via Wi-Fi and SH4 designer APP
No Dead Zone

Our service for you

Technical specifications

Casing made of painted aluminum (yellow RAL 1003)

Product type: Safety light barrier

Type: SH4

Model: Receiver
Transmitter

Range of uses: Finger protection

Operating voltage: 24 V DC

Min. operating voltage: 19.2 V DC

Max. operating voltage: 28.8 V DC

Operating voltage: 19.2 - 28.8 V DC

Response time: 20 ms

Switching voltage (max.): 24 V DC

Switching current (max.): 500 mA

Smallest detectable object size (diameter): 14 mm

Connector: M12 (12-pin)

Transmitter type: LED IR

Wavelength: 850 nm

Range (min.): 0.2 m

Range (max.): 10 m

Outputs: 2x PNP

Output signal (min.): 0 V

Output signal (max.): 24 V

Output current: 500 mA

Certification (sensors): CE
cULus
TÜV

Performance level: PL e

Safety integrity level: SIL 3

Safety rating: 3

Safety class: 3

Rays: 135

Beam spacing: 10 mm

Protective field width (min.): 200 mm

Protective field width (max.): 10000 mm

Alu rail height: 1359 mm

Total height: 1359 mm

Content: 1 pc(s)

: IP65
IP67

Length: 35 mm

Width: 40 mm

Height: 1359 mm

Dim: (L x W x H) 35 x 40 x 1359 mm

Min. temperature: -30 °C

Max. temperature: 55 °C

Nominal voltage: 24 V DC

Documents & Downloads

Datasheet

Datasheet 3760191 Datasensing Safety light barrier SH4 Range (max.) 10 m 24 V DC Safety class: 3 No. of rays: 135

User & Safety Instructions

User & Safety Instructions 3760191 Datasensing Safety light barrier SH4 Range (max.) 10 m 24 V DC Safety class: 3 No. of rays: 135

Description

The SH4-14-1350-A-12 is a compact and state-of-the-art type 4 safety light curtain for finger protection. With its slim profile of 35 x 40 mm and the advanced Wi-Fi configuration it easily masters complex automation and security challenges in industrial applications.

This text is machine translated.
