Name: Datasensing Safety light barrier SH4 Range (max.) 10 m Protective field height 450 mm 24 V DC Safety class: 3 No. of ray
Brand: Datasensing
SKU: 3760236

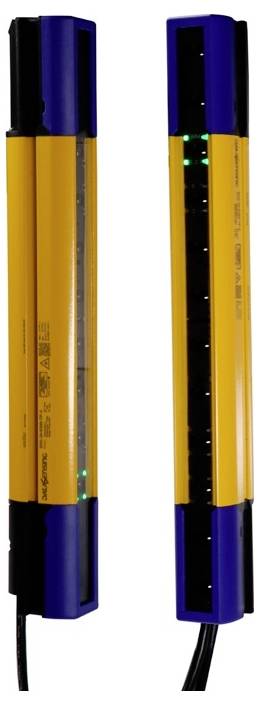

Two yellow-and-blue industrial sensors or light curtains standing side by side, each with a cable at the bottom and indicator lights visible on one unit.

Row of aligned matchsticks forming a descending stair-step diagonal from top left to bottom right, suggesting a falling trend or decreasing count.

Two yellow and blue light curtain safety sensors shown diagonally on a white background.

1/3

Product type

Safety light barrier

Length

35 mm

Height

459 mm

Type

SH4

Model

Receiver

Transmitter

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Safety light curtain, Datasesing

Type 4 safety light curtain with a compact design (35 x 40 mm)
Finger guard (14 mm resolution)
Integrated standard muting function

Our service for you

Technical specifications

Casing made of painted aluminum (yellow RAL 1003)

Product type: Safety light barrier

Type: SH4

Model: Receiver
Transmitter

Range of uses: Finger protection

Features: Incl. enclosure

Operating voltage: 24 V DC

Min. operating voltage: 19.2 V DC

Max. operating voltage: 28.8 V DC

Operating voltage: 19.2 - 28.8 V DC

Response time: 10 ms

Switching voltage (max.): 24 V DC

Switching current (max.): 500 mA

Optical resolution: 14 x 14 mm

Smallest detectable object size (diameter): 14 mm

Connector: M12 (5-pin)
M12 (8-pin)

Transmitter type: LED IR

Wavelength: 850 nm

Range (min.): 0.2 m

Range (max.): 10 m

Outputs: 2x PNP

Output signal (min.): 0 V

Output signal (max.): 24 V

Output current: 500 mA

Certification (sensors): CE
cULus
TÜV

Performance level: PL e

Safety integrity level: SIL 3

Safety rating: 4

Safety class: 3

Rays: 45

Beam spacing: 10 mm

Protective field width (min.): 200 mm

Protective field width (max.): 10000 mm

Protective field height: 450 mm

Alu rail height: 459 mm

Total height: 459 mm

Content: 1 pc(s)

: IP65
IP67

Length: 35 mm

Width: 40 mm

Height: 459 mm

Dim: (L x W x H) 35 x 40 x 459 mm

Min. temperature: -30 °C

Max. temperature: 55 °C

Nominal voltage: 24 V DC

Variants(All information is without VAT, plus shipping costs)

Range (max.)

Height

Product type

Datasensing Safety light barrier SH4 Range (max.) 10 m Protective field height 450 mm 24 V DC Safety class: 3 No. of rays: 45

Item no:3760236

Unavailable

Conrad Electronic

This article

10 m

459 mm

Safety light barrier

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 20 m Protective field height 1050 mm 24 V DC Safety class: 3 No. of rays: 42

Item no:3760149

Unavailable

Conrad Electronic

20 m

1059 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 20 m Protective field height 1200 mm 24 V DC Safety class: 3 No. of rays: 48

Item no:3760150

Unavailable

Conrad Electronic

20 m

1209 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 20 m Protective field height 1350 mm 24 V DC Safety class: 3 No. of rays: 54

Item no:3760151

Unavailable

Conrad Electronic

20 m

1359 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 20 m Protective field height 1500 24 V DC Safety class: 3 No. of rays: 60

Item no:3760152

Unavailable

Conrad Electronic

20 m

1509 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 20 m Protective field height 1650 mm 24 V DC Safety class: 3 No. of rays: 66

Item no:3760153

Unavailable

Conrad Electronic

20 m

1659 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 20 m Protective field height 1800 mm 24 V DC Safety class: 3 No. of rays: 72

Item no:3760154

Unavailable

Conrad Electronic

20 m

1809 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 20 m Protective field height 1950 mm 24 V DC Safety class: 3 No. of rays: 78

Item no:3760155

Unavailable

Conrad Electronic

20 m

1959 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 20 m Protective field height 600 mm 24 V DC Safety class: 3 No. of rays: 24

Item no:3760146

Unavailable

Conrad Electronic

20 m

609 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 20 m Protective field height 750 mm 24 V DC Safety class: 3 No. of rays: 30

Item no:3760147

Unavailable

Conrad Electronic

20 m

759 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3760236 Datasensing Safety light barrier SH4 Range (max.) 10 m Protective field height 450 mm 24 V DC Safety class: 3 No. of ray

User & Safety Instructions

User & Safety Instructions 3760236 Datasensing Safety light barrier SH4 Range (max.) 10 m Protective field height 450 mm 24 V DC Safety class: 3 No. of ray

Description

The SH4 series offers a complete line of type 4 safety light curtains for highest protection requirements. With its compact design and extended functions like muting via DIP switches it simplifies the automation challenges in industrial applications Ideal.
