Name: Datasensing Safety light barrier SH4 Range (max.) 20 km Protective field height 600 mm 24 V DC Safety class: 3 No. of ra
Brand: Datasensing
SKU: 3760209

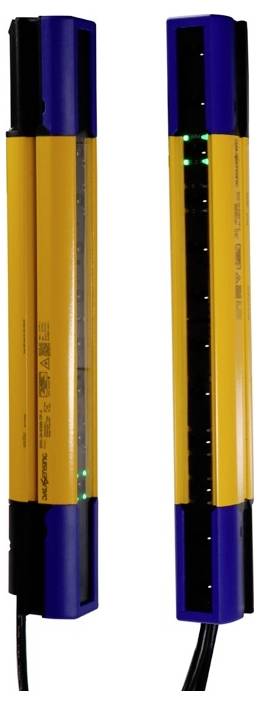

Two vertical yellow and blue industrial light sensors or safety light curtains with black cables, shown side by side on a white background.

A descending staircase-like bar chart of many vertical bars, each pair lower than the previous, showing a steady decline from left to right.<br>

Two yellow-and-blue linear sensors with cable ends, shown diagonally on a white background.

1/3

Product type

Safety light barrier

Length

35 mm

Height

609 mm

Type

SH4

Model

Receiver

Transmitter

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Safety light curtain Datasensing SH4-30-0600-A-12

Type 4 safety light curtain for hand protection (30 mm resolution)
Advanced functionality with integrated laser pointer
Wireless configuration via the APP DATASENSING SH4 DESIGNER and Wi-Fi connection
No dead zone and compact profile (35 x 40 mm)

Our service for you

Technical specifications

Casing made of painted aluminum (yellow RAL 1003)

Product type: Safety light barrier

Type: SH4

Model: Receiver
Transmitter

Range of uses: Hand protection

Features: Incl. enclosure

Operating voltage: 24 V DC

Min. operating voltage: 19.2 V DC

Max. operating voltage: 28.8 V DC

Operating voltage: 19.2 - 28.8 V DC

Response time: 9 ms

Switching voltage (max.): 24 V DC

Switching current (max.): 500 mA

Smallest detectable object size (diameter): 30 mm

Connector: M12 (5-pin)
M12 (12-pin)

Transmitter type: LED IR

Wavelength: 850 nm

Range (min.): 0.2 mm

Range (max.): 20 km

Outputs: 2x PNP

Output signal (min.): 0 V

Output signal (max.): 24 V

Output current: 500 mA

Certification (sensors): CE
cULus
TÜV

Performance level: PL e

Safety integrity level: SIL 3

Safety rating: 4

Safety class: 3

Rays: 24

Beam spacing: 25 mm

Protective field width (min.): 200 mm

Protective field width (max.): 20000 mm

Protective field height: 600 mm

Alu rail height: 609 mm

Total height: 609 mm

Content: 1 pc(s)

: IP65
IP67

Length: 35 mm

Width: 40 mm

Height: 609 mm

Dim: (L x W x H) 35 x 40 x 609 mm

Min. temperature: -30 °C

Max. temperature: 55 °C

Nominal voltage: 24 V DC

Variants(All information is without VAT, plus shipping costs)

Width

IP rating

Range (max.)

Height

Datasensing Safety light barrier SH4 Range (max.) 10 m 24 V DC Safety class: 3 No. of rays: 135

Item no:3760191

Unavailable

Conrad Electronic

40 mm

IP65

10 m

1359 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Safety light barrier SH4 Range (max.) 10 m Protective field height 1050 24 V DC Safety class: 3 No. of rays: 105

Item no:3760200

Unavailable

Conrad Electronic

40 mm

IP65

10 m

1059 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Safety light barrier SH4 Range (max.) 10 m Protective field height 1050 mm 24 V DC Safety class: 3 No. of rays: 105

Item no:3760189

Unavailable

Conrad Electronic

40 mm

IP65

10 m

1059 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Safety light barrier SH4 Range (max.) 10 m Protective field height 1200 mm 24 V DC Safety class: 3 No. of rays: 120

Item no:3760190

Unavailable

Conrad Electronic

40 mm

IP65

10 m

1209 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Safety light barrier SH4 Range (max.) 10 m Protective field height 1200 mm 24 V DC Safety class: 3 No. of rays: 120

Item no:3760201

Unavailable

Conrad Electronic

40 mm

IP65

10 m

1209 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Safety light barrier SH4 Range (max.) 10 m Protective field height 1350 mm 24 V DC Safety class: 3 No. of rays: 135

Item no:3760202

Unavailable

Conrad Electronic

40 mm

IP65

10 m

1359 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Safety light barrier SH4 Range (max.) 10 m Protective field height 1500 mm 24 V DC Safety class: 3 No. of rays: 150

Item no:3760203

Unavailable

Conrad Electronic

40 mm

IP67

10 m

1509 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Safety light barrier SH4 Range (max.) 10 m Protective field height 1650 mm 24 V DC Safety class: 3 No. of rays: 165

Item no:3760192

Unavailable

Conrad Electronic

40 mm

IP65

10 m

1659 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Safety light barrier SH4 Range (max.) 10 m Protective field height 1650 mm 24 V DC Safety class: 3 No. of rays: 165

Item no:3760204

Unavailable

Conrad Electronic

40 mm

IP65

10 m

1659 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Safety light barrier SH4 Range (max.) 10 m Protective field height 1800 mm 24 V DC Safety class: 3 No. of rays: 180

Item no:3760193

Unavailable

Conrad Electronic

40 mm

IP65

10 m

1809 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3760209 Datasensing Safety light barrier SH4 Range (max.) 20 km Protective field height 600 mm 24 V DC Safety class: 3 No. of ra

User & Safety Instructions

User & Safety Instructions 3760209 Datasensing Safety light barrier SH4 Range (max.) 20 km Protective field height 600 mm 24 V DC Safety class: 3 No. of ra

Description

The highly developed SH4 series from Datasesing offers future-proof automation solutions for the highest security requirements. The advanced model SH4-30-0600-A-12 combines the latest features, such as 4-signal muting, dynamic part muting and blanking with an intuitive Wi-Fi configuration. Thanks to its compact design with no dead zones, the light curtain protects humans and machines with absolute reliability and flexibility.

This text is machine translated.
