Buy Datasensing Safety light barrier SH4 Range (max.) 70 m Protective field height 800 mm 24 V DC Safety class: 3 No. of ray

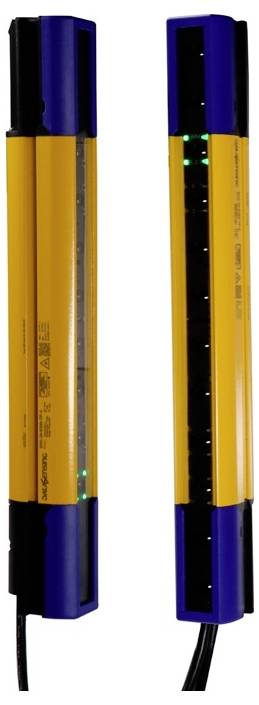

Two yellow-and-blue industrial light curtains or sensor bars shown side by side with cables attached, one front view and one rear view with indicator lights visible.

A descending staircase made of matched wooden pencils, arranged from tallest at top left to shortest at bottom right.

Two yellow-and-blue linear sensor bars with cable leads, shown diagonally on a white background.

1/3

Product type

Safety light barrier

Length

35 mm

Height

974 mm

Type

SH4

Model

Receiver

Transmitter

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Datassing SH4 safety light curtain type 4 for body protection

Compact housing profile (35 x 40 mm)
Standard muting functions
Integrated wireless monitoring

Our service for you

Technical specifications

Casing made of painted aluminum (yellow RAL 1003)

Product type: Safety light barrier

Type: SH4

Model: Receiver
Transmitter

Range of uses: Finger protection

Features: Incl. enclosure

Operating voltage: 24 V DC

Min. operating voltage: 19.2 V DC

Max. operating voltage: 28.8 V DC

Operating voltage: 19.2 - 28.8 V DC

Response time: 15 ms

Switching voltage (max.): 24 V DC

Switching current (max.): 500 mA

Max. switching capacity: 12 W

Smallest detectable object size (diameter): 400 mm

Connector: M12 (5-pin)
M12 (8-pin)

Transmitter type: LED IR

Wavelength: 850 nm

Range (min.): 500 mm

Range (max.): 70 m

Outputs: 2x PNP

Output signal (min.): 0 V

Output signal (max.): 24 V

Output current: 500 mA

Certification (sensors): CE
cULus
TÜV

Performance level: PL e

Safety integrity level: SIL 3

Safety rating: 4

Safety class: 3

Rays: 3

Beam spacing: 400 mm

Protective field width (min.): 500 mm

Protective field width (max.): 70000 mm

Protective field height: 800 mm

Alu rail height: 974 mm

Total height: 974 mm

Content: 1 pc(s)

: IP65
IP67

Length: 35 mm

Width: 40 mm

Height: 974 mm

Dim: (L x W x H) 35 x 40 x 974 mm

Min. temperature: -30 °C

Max. temperature: 55 °C

Nominal voltage: 24 V DC

Documents & Downloads

Datasheet

Datasheet 3760181 Datasensing Safety light barrier SH4 Range (max.) 70 m Protective field height 800 mm 24 V DC Safety class: 3 No. of ray

User & Safety Instructions

User & Safety Instructions 3760181 Datasensing Safety light barrier SH4 Range (max.) 70 m Protective field height 800 mm 24 V DC Safety class: 3 No. of ray

Description

The SH4 series offers a complete line at type 4 safety light curtains for securing fingers, hands or bodies. The SH4-3-0800-SM-8 has innovative features such as muting, simple configuration via DIP switches and a robust design for solving complex automation tasks.

This text is machine translated.
