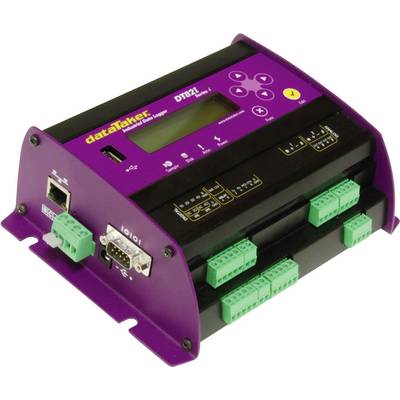

Datataker 9998403873 DT-82I Multi-channel data logger
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2,348.74 / piece)
€ 2,348.74
plus VAT.
Highlights & Details
Data Taker DT-82I
- 18 bit resolution, up to 6 analogueue (±50V) sensor inputs
- 4 digital channels, relay output, counter
- 2 serial 'Smart Sensor' connections
- Support for: Thermocouples, RTDs, thermistors, semiconductor sensors, etc.
- Programmable analogueue output
- Model bus for SCADA connection
- Communication via RS-232, USB or Ethernet
- Protocols: ASCII, FTP, Web, E-mail, Dynamic DNS
- Opt. Can bus interface (CANgate) and channel extension (CEM20)
- DT remote app, LabVIEW support
- Dual channel isolation technology
- This text is machine translated.
Technical specifications
- Dim
(L x W x H) 137 x 180 x 65 mm
- Weight
1.5 kg
- Channels
6
- Height
65 mm
- Length
137 mm
- Width
180 mm
Manufacturer's standards (no certificate)
- Type
DT-82I
- Power supply
12 - 24V / DC
- Product type
Multi-channel data logger
Documents & Downloads
Datasheet
Datasheet 2114743 Datataker 9998403873 DT-82I Multi-channel data logger
User & Safety Instructions
User & Safety Instructions 2114743 Datataker 9998403873 DT-82I Multi-channel data logger
Information
Information 2114743 Datataker 9998403873 DT-82I Multi-channel data logger
Description
The dataTaker DT80-series enables the independant acquisition and evaluation of measurement data. The intelligent logger has a wide range of connection types for various sensor types. The logger can be extended via an additional module and can therefore be adapted precisely to the respective application. A comprehensive communication capability (interfaces, web interface, FTP, web, e-mail, Dynamic DNS, …) makes the logger a good choice, even in harsh environments.
This text is machine translated.
