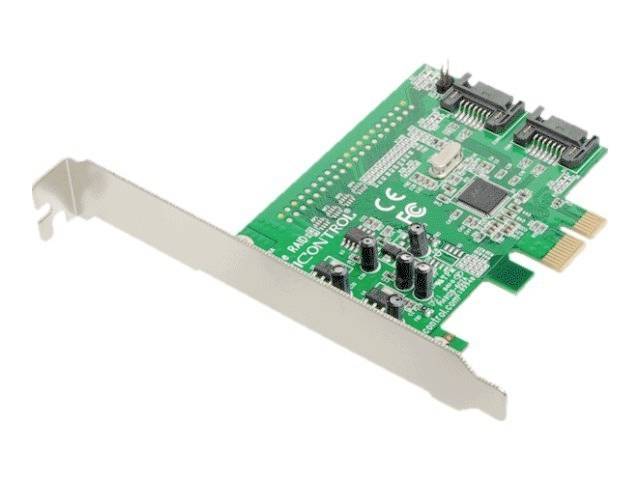

Dawicontrol DC-600E PCI Express card PCIe x1 RAID-enabled
EAN:
Part number:
Item no:
Dawicontrol DC-600E RAID Controller 5 Gb/s
Technical specifications
- Product type
PCI Express card
- Slot
PCIe x1
- Internal SATA
2
- RAID mode
0
1
- Specs
RAID-enabled
- Interfaces
SATA
- Chipset
Marvell
- Transfer rate
5 GBit/s
- Weight
0.2
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2937813 Dawicontrol DC-600E PCI Express card PCIe x1 RAID-enabled
Description
Supports RAID 1, 0, JBOD and backup
Two independent SATA 3 channels
600 MByte/s data transfer rate
Conforms to the low-profile specification
RAID monitor with e-mail notification in the event of an error
This text is machine translated.
Two independent SATA 3 channels
600 MByte/s data transfer rate
Conforms to the low-profile specification
RAID monitor with e-mail notification in the event of an error
This text is machine translated.
Features
- Supported drive interfaces: SATA
- Serial ATA II
- Serial ATA III. RAID levels 0, 1
- JBOD
- Data transfer rate 5 Gbps
- Marvell 88SE9128 chipset Supports Windows operating systems: Windows 7 Home Premium
- Windows 7 Home Premium x64
- Windows 7 Professional
- Windows 7 Professional.... PCI card form factor: Half height (low profile)
