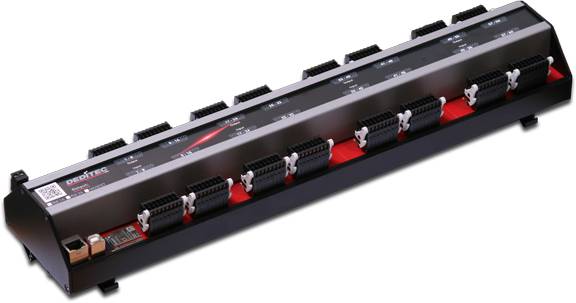

Deditec BSW-O64-R64_3A BS-WEU-O64-R64_3A BS module Wi-Fi, Ethernet, USB No. of digital outputs: 64 No. of digital inputs
EAN:
Part number:
Item no:
Product type
BS module
Interfaces
Wi-Fi
Ethernet
USB
Type
BS-WEU-O64-R64_3A
Operating voltage
24 V DC
Height
74.5 mm
Number
Total (€ 2,427.73 / piece)
€ 2,427.73
plus VAT.
Highlights & Details
BS-WEU module with 64 digital inputs/outputs 3A
- Ethernet interface 10/100 MbitConnection via WiFi possibleWPS functionOpen Ethernet protocolUSB 2.0 interface up to 480 MbitDigital inputs: 15V – 30V AC/DC (optional 5V – 15V)Digital outputs: 3a16-bit counter (up to 100Hz) / flip-flop per channelTimeout-protection function (can be configured via software)Sturdy aluminum housing (suitable for DIN rail mounting)
Technical specifications
- Product type
BS module
- Interfaces
Wi-Fi
Ethernet
USB
- Type
BS-WEU-O64-R64_3A
- Operating voltage
24 V DC
- Height
74.5 mm
- Length
469 mm
- Width
105 mm
- No. of digital inputs
64
- No. of digital outputs
64
- Dim
(L x W x H) 469 x 105 x 74.5 mm
- Control LEDs
Yes
- Manufacturer part #
BSW-O64-R64_3A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2623472 Deditec BSW-O64-R64_3A BS-WEU-O64-R64_3A BS module Wi-Fi, Ethernet, USB No. of digital outputs: 64 No. of digital inputs
Description
The BS-WEU-O64-R64_3A is a compact module with an Ethernet and USB interface. In addition, you can integrate and control this module via WiFi in your PC network.
This text is machine translated.
This text is machine translated.
Features
- Timeout protection functionNew timeout modesInput filterInput counter
Scope of delivery
- DEDITEC driver CD
- 2-pin connector
- 16-pin connector
- Actuator tool
- USB cable
System requirements
- Windows, Linux, power supply
