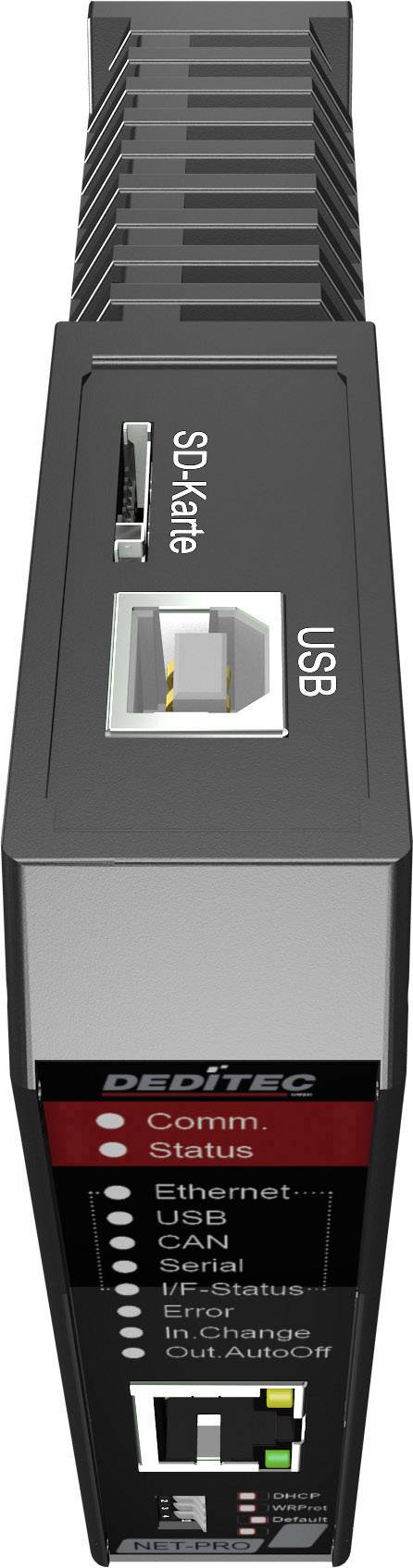

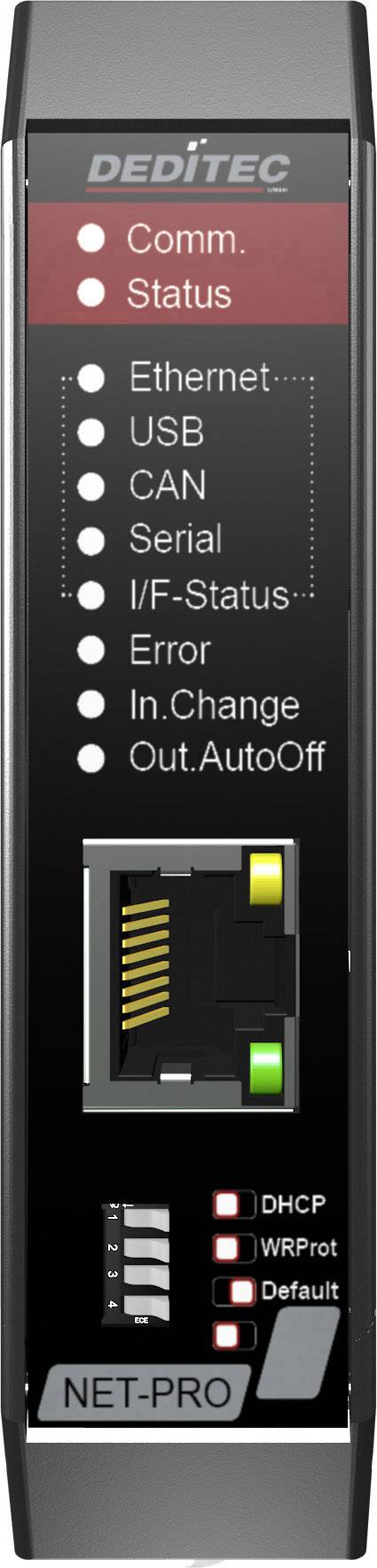

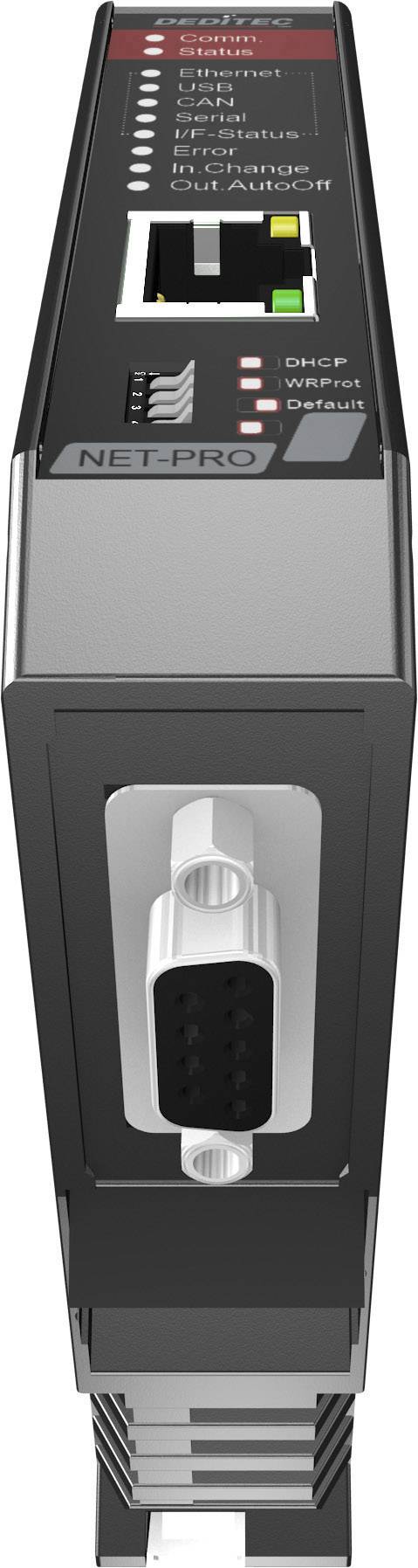

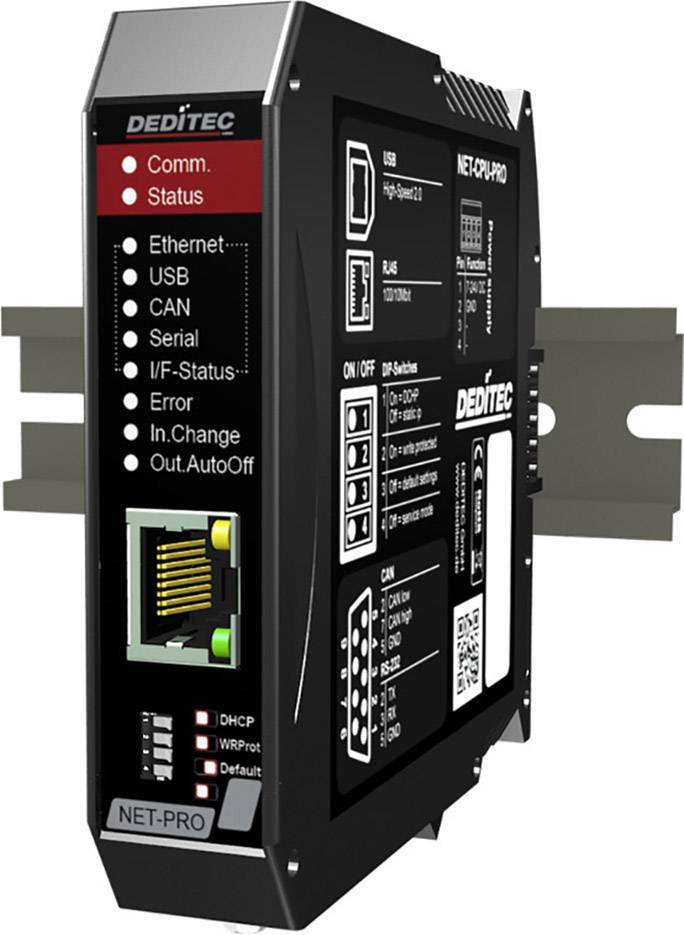

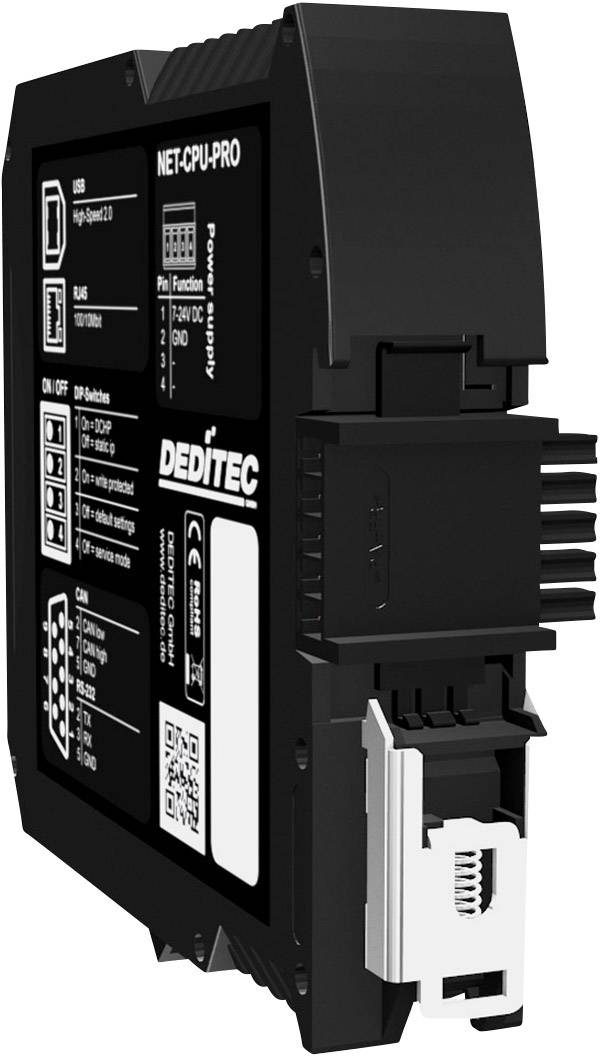

Deditec NET-CPU-PRO-CS NET-CPU-PRO-CS Multifunction module CAN bus, USB, Ethernet, RS-232, RS-485 No. of inputs: 0 x No.
EAN:
Part number:
Item no:
Number
Total (€ 301.68 / piece)
€ 301.68
plus VAT.
Only 2 Piece(s) available
Highlights & Details
NET CPU-PRO-CS
- 10/100 Mbit Ethernet interface with web interface
- USB 2.0 (480 Mbit/s)
- Can interface (galv. Disconnected, CAN 2.0A / 2.0B)
- Serial Interface (RS-232/RS-485)
- Open interface protocol for Ethernet, CAN and serial
- SD card slot
- Battery buffered RTC
- Suitable for DIN rail mounting
Technical specifications
- Product type
Multifunction module
- Interfaces
CAN bus
USB
Ethernet
RS-232
RS-485
- Type
NET-CPU-PRO-CS
- Operating voltage
7 V
24 V
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
V/DC
- Operating temperature
10 up to 50 °C
- No. of inputs
0 x
- No. of outputs
0 x
- Manufacturer part #
NET-CPU-PRO-CS
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2149474 Deditec NET-CPU-PRO-CS NET-CPU-PRO-CS Multifunction module CAN bus, USB, Ethernet, RS-232, RS-485 No. of inputs: 0 x No.
Description
The basis of a NET module is a NET CPU BASE with Ethernet/USB interface or a NET CPU-PRO-CS with Ethernet/USB/CAN/serial interface.
Up to 64 different NET-DEV-I/O modules can be combined and connected to these NET-CPU base modules in any way.
Analogue and digital modules can be combined.
Depending on the application, digital and analogue modules can be combined. Module combinations with relays, power relays and A/D inputs as well as temperature recording are therefore no problem. The complete module is mounted on the DIN rail.
Service-friendly change of a single module is possible
Even during operation, individual modules can be replaced or changed. This allows a service-friendly upgrade or the replacement of modules. The next time the entire module is restarted, the NET-CPU interface first scans all NET-DEV I/O modules and thus records the overall module configuration.
This text is machine translated.
Up to 64 different NET-DEV-I/O modules can be combined and connected to these NET-CPU base modules in any way.
Analogue and digital modules can be combined.
Depending on the application, digital and analogue modules can be combined. Module combinations with relays, power relays and A/D inputs as well as temperature recording are therefore no problem. The complete module is mounted on the DIN rail.
Service-friendly change of a single module is possible
Even during operation, individual modules can be replaced or changed. This allows a service-friendly upgrade or the replacement of modules. The next time the entire module is restarted, the NET-CPU interface first scans all NET-DEV I/O modules and thus records the overall module configuration.
This text is machine translated.
Scope of delivery
- Voltage plug
- Actuator tool
- DEDITEC installation CD
- Flyers
