Deditec NET-DEV-OPTO-IN16 NET-DEV-OPTO-IN16 GPI module No. of digital outputs: 0 No. of digital inputs: 16 No. of relay
Part number:
Item no:
Product type
GPI module
No. of relay outputs
0
Type
NET-DEV-OPTO-IN16
Operating voltage
7 V
24 V
Operating voltage
V/DC
Number
Total (€ 268.07 / piece)
€ 268.07
plus VAT.
Highlights & Details
NET-DEV-OPTO-IN16

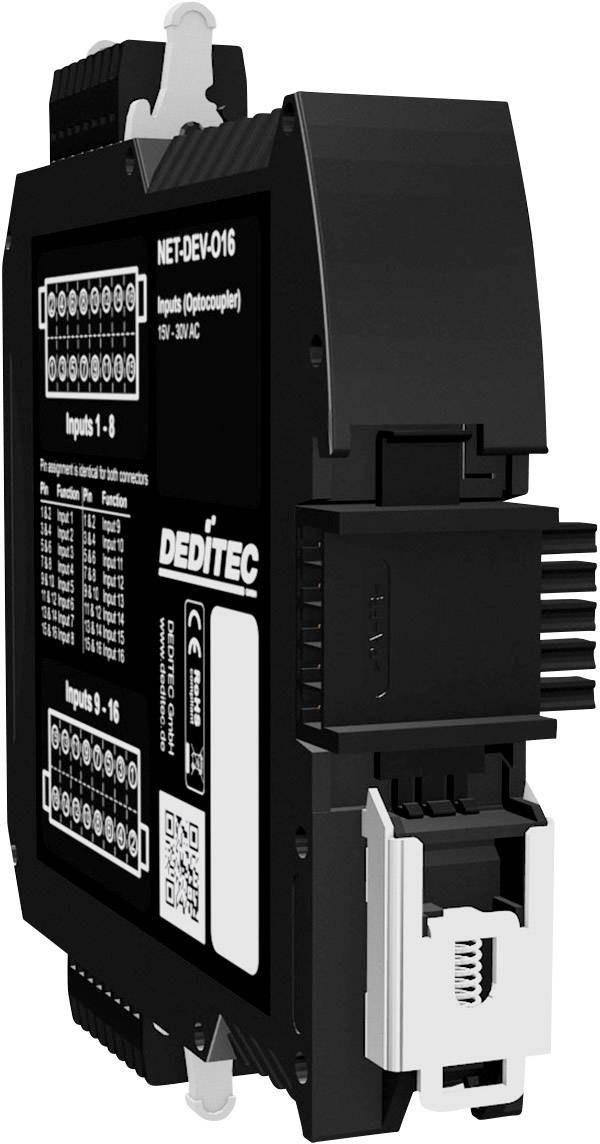

- 16 optocoupler inputs
- Galvanically isolated via optocoupler
- 15 - 24V AC/DC switching voltage (opt. 5 - 15V AC/DC)
- 16-bit counter per channel (up to 10kHz) with latch function
- Filter for counter / flip-flops adjustable from 5ms - 255ms

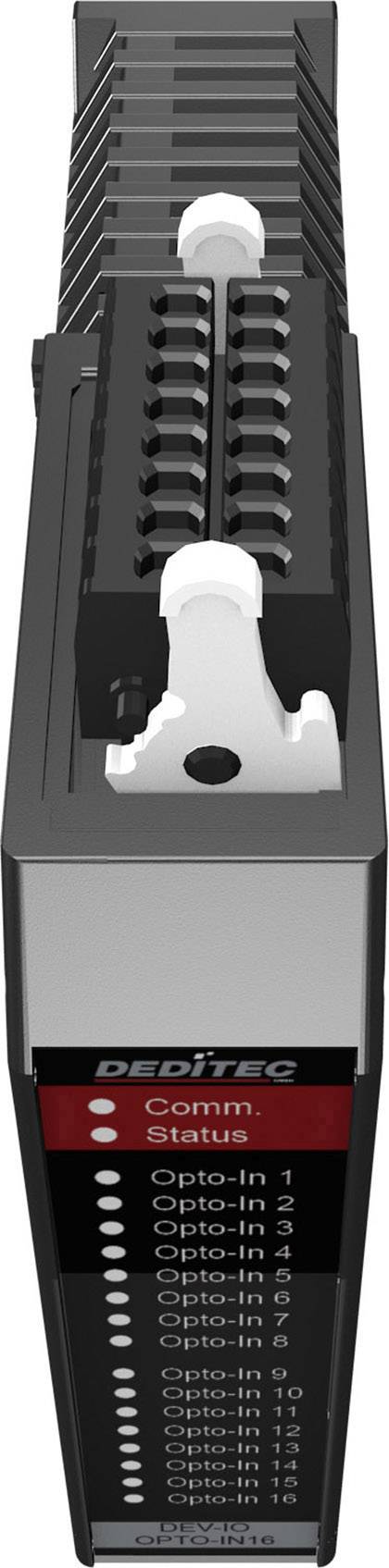

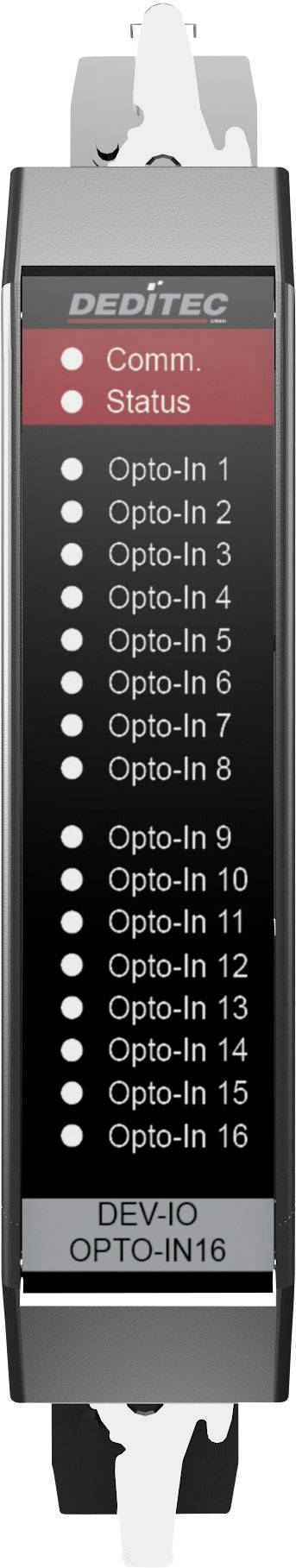

- LED status display for each input/output channel

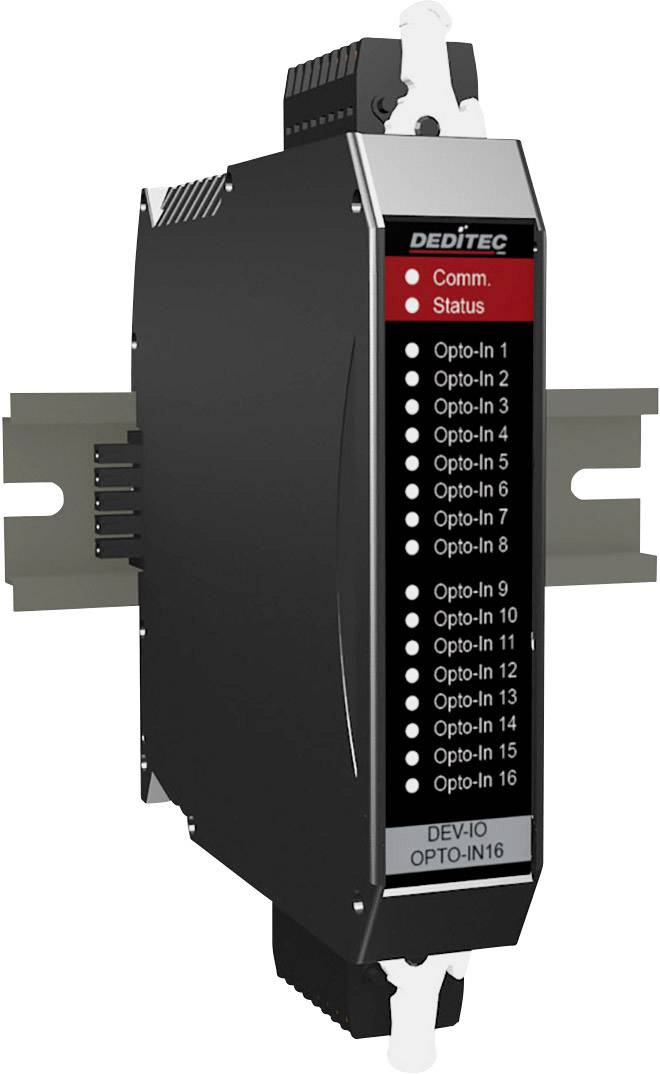

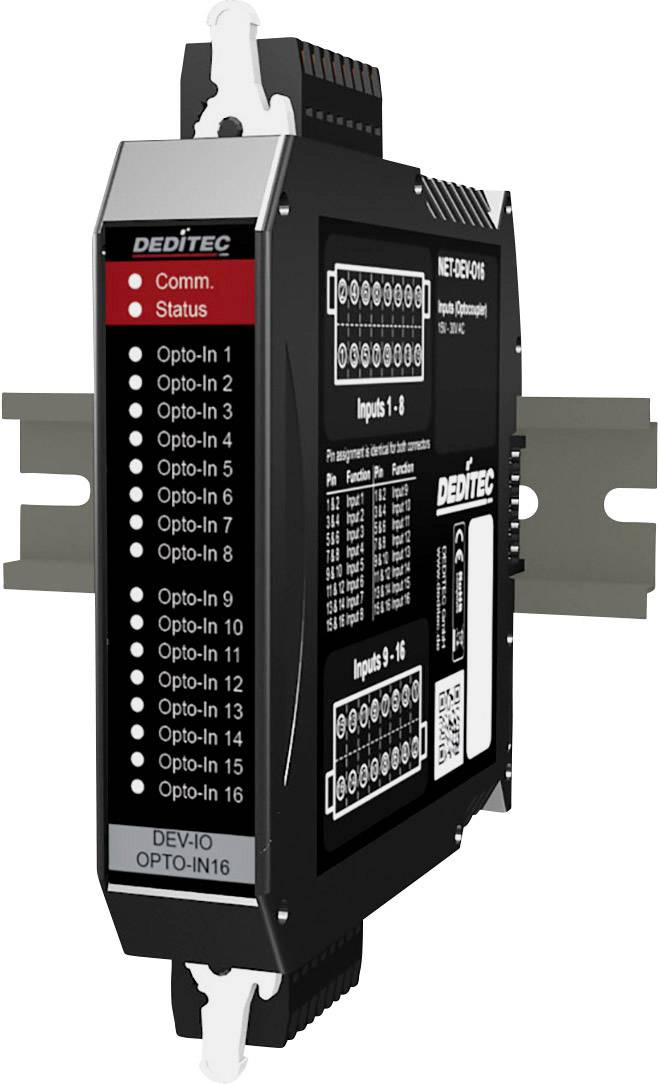

- Suitable for DIN rail mounting
Technical specifications
- Product type
GPI module
- Type
NET-DEV-OPTO-IN16
- Operating voltage
7 V
24 V
- Operating voltage
V/DC
- Height
114.5 mm
- Length
99 mm
- Width
22.5 mm
- No. of digital inputs
0
- No. of digital inputs
16
- No. of digital outputs
0
- No. of relay outputs
0
- Dim
(L x W x H) 99 x 22.5 x 114.5 mm
- Control LEDs
Yes
- Manufacturer part #
NET-DEV-OPTO-IN16
- Fitting type (details)
DIN rail (TS 35)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2149468 Deditec NET-DEV-OPTO-IN16 NET-DEV-OPTO-IN16 GPI module No. of digital outputs: 0 No. of digital inputs: 16 No. of relay
Description
The basis of a NET module is a NET CPU BASE with Ethernet/USB interface or a NET CPU-PRO-CS with Ethernet/USB/CAN/serial interface.
Up to 64 different NET-DEV-I/O modules can be combined and connected to these NET-CPU base modules in any way.
Analogue and digital modules can be combined.
Depending on the application, digital and analogue modules can be combined. Module combinations with relays, power relays and A/D inputs as well as temperature recording are therefore no problem. The complete module is mounted on the DIN rail.
Service-friendly change of a single module is possible
Even during operation, individual modules can be replaced or changed. This allows a service-friendly upgrade or the replacement of modules. The next time the entire module is restarted, the NET-CPU interface first scans all NET-DEV I/O modules and thus records the overall module configuration.
This text is machine translated.
Up to 64 different NET-DEV-I/O modules can be combined and connected to these NET-CPU base modules in any way.
Analogue and digital modules can be combined.
Depending on the application, digital and analogue modules can be combined. Module combinations with relays, power relays and A/D inputs as well as temperature recording are therefore no problem. The complete module is mounted on the DIN rail.
Service-friendly change of a single module is possible
Even during operation, individual modules can be replaced or changed. This allows a service-friendly upgrade or the replacement of modules. The next time the entire module is restarted, the NET-CPU interface first scans all NET-DEV I/O modules and thus records the overall module configuration.
This text is machine translated.
Scope of delivery
- Connectors
- Voltage plug
- Actuator tool
- DEDITEC installation CD
- Flyers
