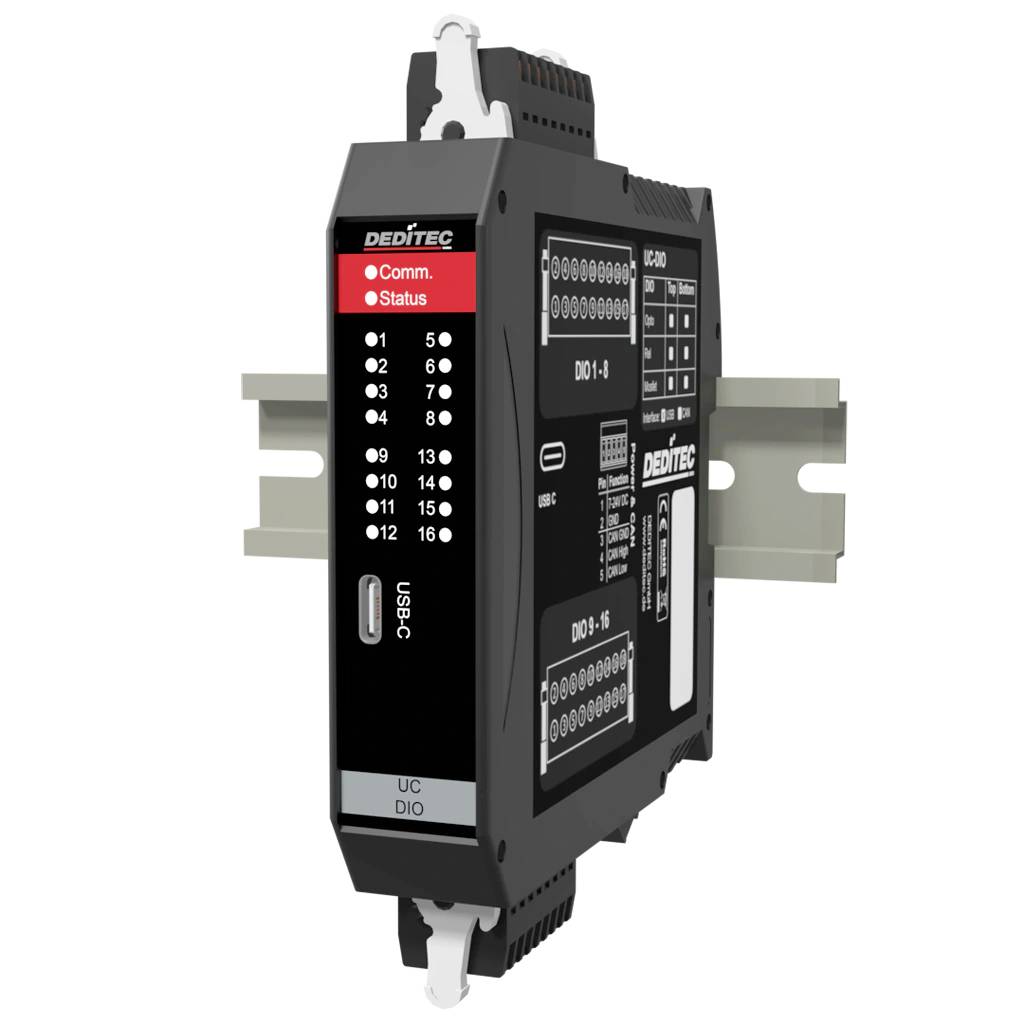

Deditec UC-CAN-U-M16 UC-CAN-U-M16 GPO module CAN, USB No. of digital outputs: 16 No. of digital inputs: 0 No. of relay o
Part number:
Item no:
Product type
GPO module
Interfaces
CAN
USB
No. of relay outputs
0
Type
UC-CAN-U-M16
Operating voltage
7 V DC
24 V DC
Datasheet (PDF)
Number
Total (€ 373.95 / piece)
€ 373.95
plus VAT.
Highlights & Details
CAN bus relay module with 16 digital outputs (MOSFET) - with USB configuration interface
- USB 2.0 interface up to 480 Mbit/s.
- Quick start-up through plug-and-play integration
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface
- CAN interface according to ISO 11898
- Open CAN Protocol (RAW CAN)
- Automatic send / receive mode
- Electrically isolated up to 500 V
- Max. Switching voltage 36 V DC
- Min Switching voltage 2.8 V DC
- Max. Switching current 3 A DC
- Max. Switching capacity 108 W DC
- Timeout-protection function (can be configured via software)
- Status LED for each output
Technical specifications
- Safety functions: Adjustable fail-safe mode (timeout protection function in case of communication termination).
- Type of connection: Spring-loaded terminals (WAGO/Phoenix Contact), polarity reversal protected.
- Supported Baud rates: 10 kbit/s to 1 Mbit/s (CAN 2.0A & 2.0B).
- Operating temperature: +10 °C to + +50 °C.
- Product type
GPO module
- Interfaces
CAN
USB
- Type
UC-CAN-U-M16
- Operating voltage
7 V DC
24 V DC
- Operating voltage
7 V TO 24 V DC
- Height
120 mm
- Length
111 mm
- Width
22.5 mm
- No. of digital inputs
0
- No. of digital inputs
0
- No. of digital outputs
16
- No. of relay outputs
0
- Dim
(L x W x H) 111 x 22.5 x 120 mm
- Control LEDs
Yes
- Manufacturer part #
UC-CAN-U-M16
- Fitting type (details)
Rail mounting (DIN rail) on standard top hat rail (TS 35 x 7.5 mm)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796608 Deditec UC-CAN-U-M16 UC-CAN-U-M16 GPO module CAN, USB No. of digital outputs: 16 No. of digital inputs: 0 No. of relay o
User & Safety Instructions
User & Safety Instructions 3796608 Deditec UC-CAN-U-M16 UC-CAN-U-M16 GPO module CAN, USB No. of digital outputs: 16 No. of digital inputs: 0 No. of relay o
Description
The UC-CAN-U-M16 is a smart CAN bus relay module with 16 digital outputs (MOSFET), Ideal for switching loads in industrial applications. The relay offers high security and galvanic isolation. Typical areas of application are test stands for actuator control as well as automation systems, in which digital signals must be switched reliably via CAN.
This text is machine translated.
This text is machine translated.
Features
- M2M functionality
- Automatic CAN-RX/TX mode
- RAW CAN
- J1939 Protocol
- Free configuration and testing software
- USB configuration interface
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
Scope of delivery
- USB cable A-plug to C-plug
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector

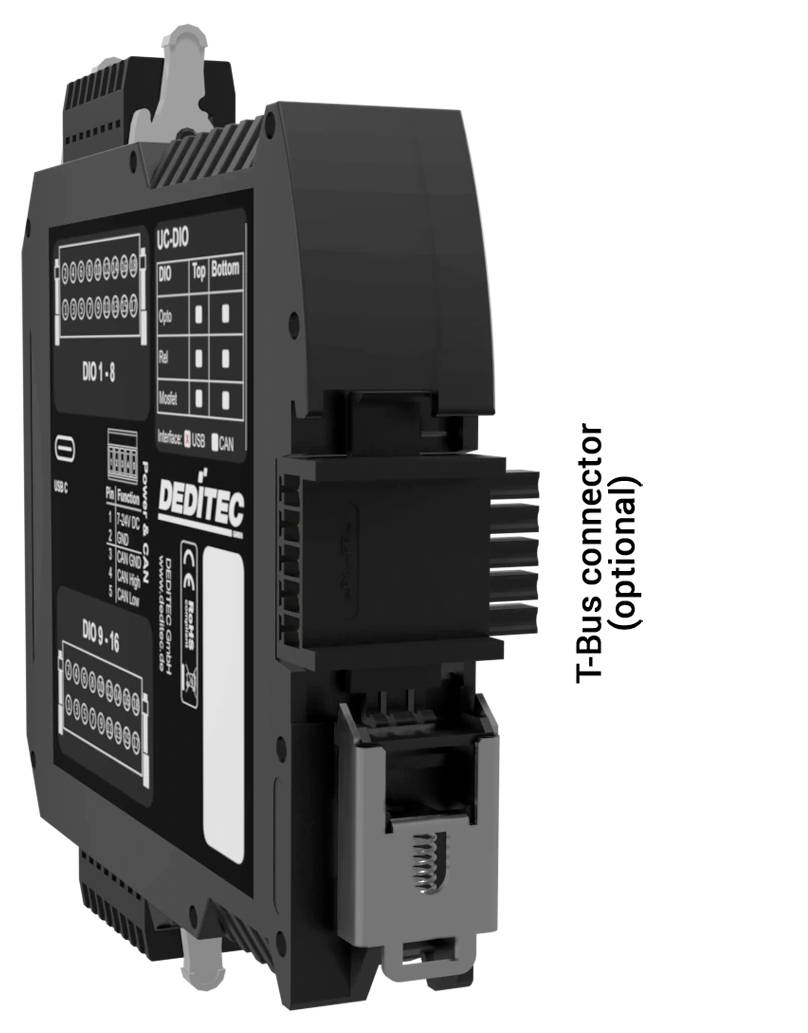

- DIN-rail connector
System requirements
- Windows, Linux
