Deditec UC-CAN-U-R16_3A UC-CAN-U-R16_3A Relay module CAN, USB No. of digital outputs: 16 No. of digital inputs: 0 No. of
Part number:
Item no:
Product type
Relay module
Interfaces
CAN
USB
No. of relay outputs
16
Type
UC-CAN-U-R16_3A
Operating voltage
7 V DC
24 V DC
Datasheet (PDF)
Number
Total (€ 373.95 / piece)
€ 373.95
plus VAT.
Highlights & Details
CAN bus relay module with 16 digital outputs (3 A) - with USB configuration interface
- USB 2.0 interface up to 480 Mbit/s.
- Quick start-up through plug-and-play integration
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface
- CAN interface according to ISO 11898
- Open CAN Protocol (RAW CAN)
- Automatic send / receive mode
- Electrically isolated up to 500 V
- Closer (NO)
- Max. SWITCHING VOLTAGE 48 V AC/DC
- Max. SWITCHING CURRENT 3 A AC / DC
- Max. TRANSPORT CURRENT 3 A AC / DC
- Max. breaking capacity 90 W
- Timeout-protection function (can be configured via software)
- Status LED for each output
Technical specifications
- Galvanic isolation: Up to 3 kV RMS / 1 min. Between contact and coil
- Operating temperature: +10 °C to + +50 °C.
- Product type
Relay module
- Interfaces
CAN
USB
- Type
UC-CAN-U-R16_3A
- Operating voltage
7 V DC
24 V DC
- Operating voltage
7 V TO 24 V DC
- Height
120 mm
- Length
111 mm
- Width
22.5 mm
- No. of digital inputs
0
- No. of digital inputs
0
- No. of digital outputs
16
- No. of relay outputs
16
- Dim
(L x W x H) 111 x 22.5 x 120 mm
- Control LEDs
Yes
- Manufacturer part #
UC-CAN-U-R16_3A
- Fitting type (details)
Mounting on standard DIN rail / DIN rail (TS 35 x 7.5 mm)
- Relay rating
3 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796607 Deditec UC-CAN-U-R16_3A UC-CAN-U-R16_3A Relay module CAN, USB No. of digital outputs: 16 No. of digital inputs: 0 No. of
User & Safety Instructions
User & Safety Instructions 3796607 Deditec UC-CAN-U-R16_3A UC-CAN-U-R16_3A Relay module CAN, USB No. of digital outputs: 16 No. of digital inputs: 0 No. of
Description
The UC-CAN-U-R16_3A is a smart CAN bus relay module with 16 digital outputs (3 A), Ideal for switching loads in industrial applications. The relay offers high security and galvanic isolation. Typical areas of application are test stands for actuator control as well as automation systems, in which digital signals must be switched reliably via CAN.
This text is machine translated.
This text is machine translated.
Features
- M2M functionality
- Automatic CAN-RX/TX mode
- RAW CAN
- J1939 Protocol
- Free configuration and testing software
- USB configuration interface
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
Scope of delivery
- USB cable A-plug to C-plug
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector

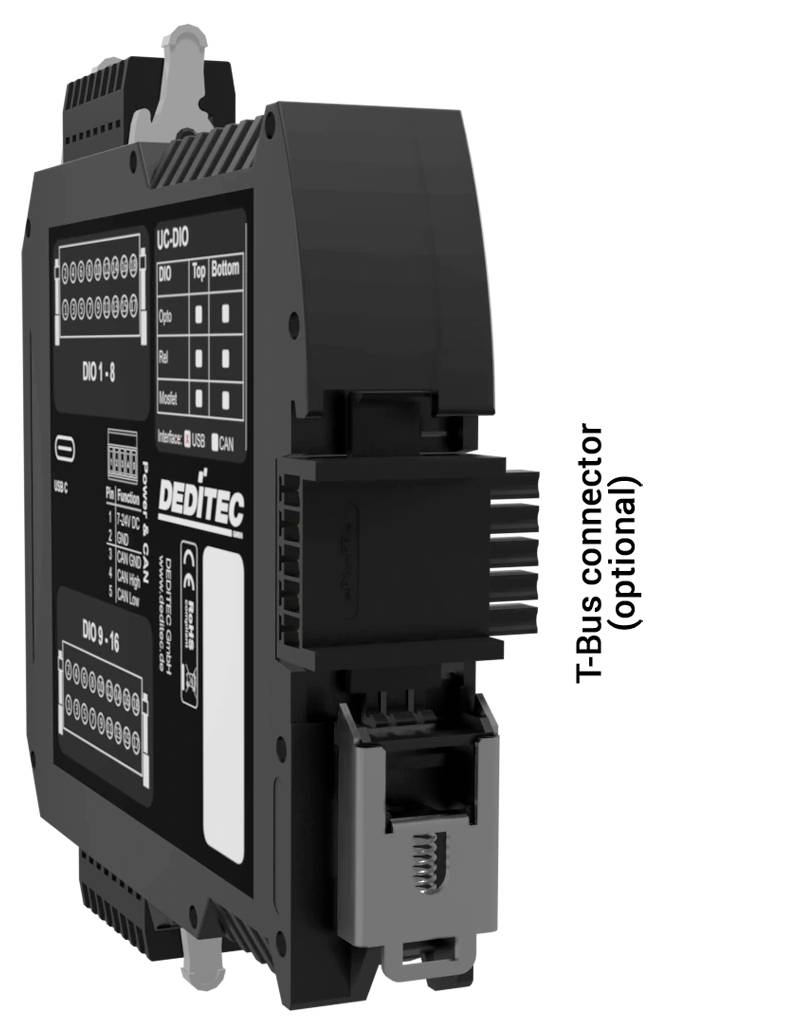

- DIN-rail connector
System requirements
- Windows, Linux
