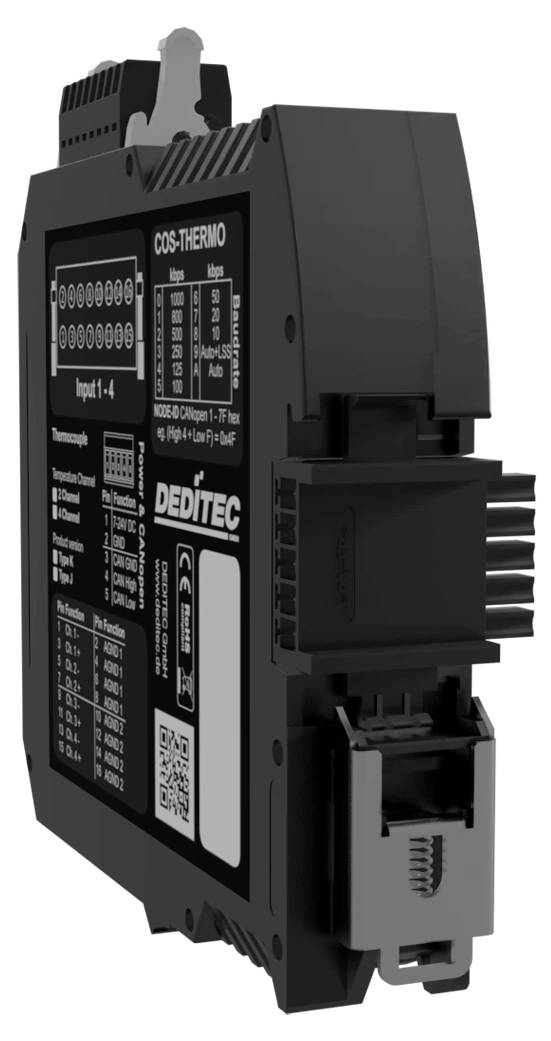

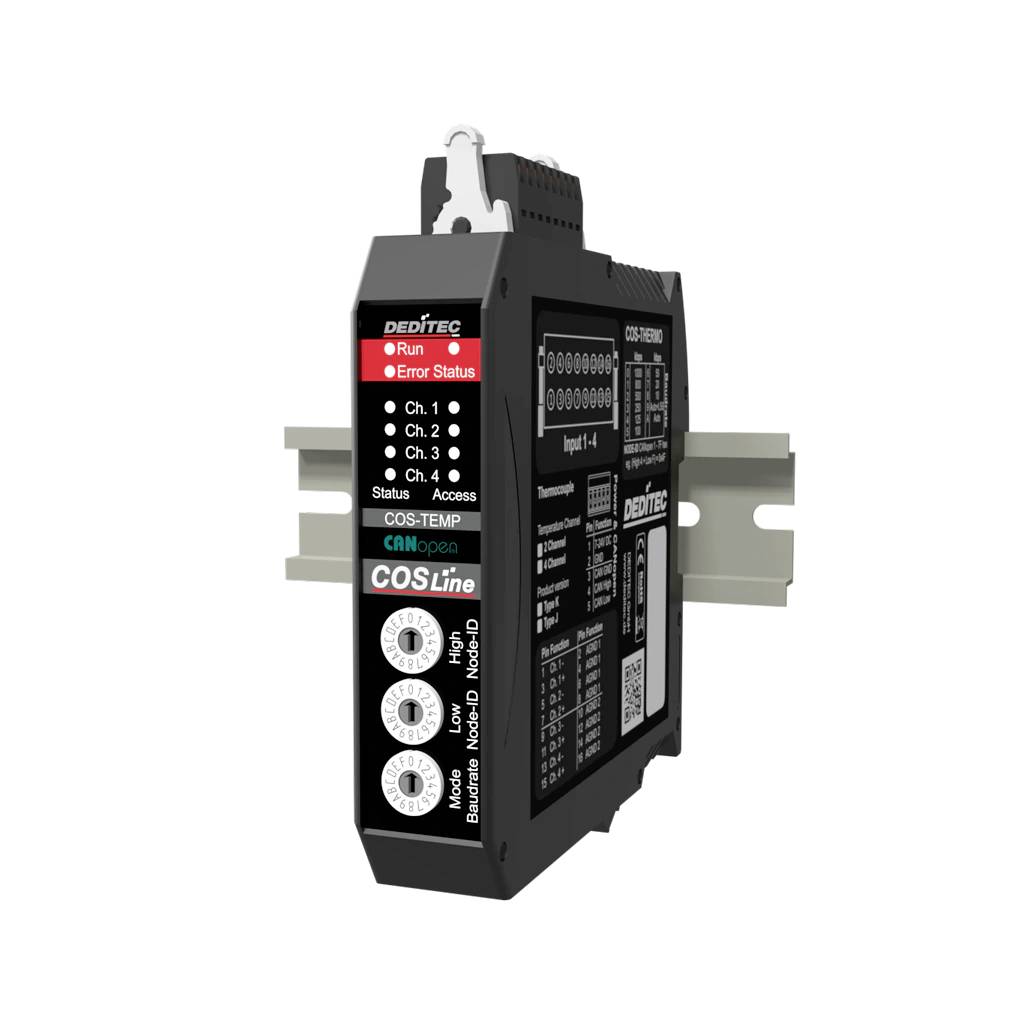

Deditec UC-CANOPEN-THERMO4_K UC-CANOPEN-THERMO4_K I/O module CANopen No. of inputs: 4 x No. of outputs: 0 x I/O number:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 528.57 / piece)
€ 528.57
plus VAT.
Highlights & Details
CANopen measuring acquisition temperature thermoelement * module with 4 type K inputs
- CANopen profiles according to the CIA® specification CIA 301, CIA 305 and CIA 401
- CAN 2.0A OR CAN 2.0B
- Electrically isolated up to 500 V
- Configurable via code switch
- 1 Mbps, 800 Kbps, 500 Kbps, 250 Kbps, 125 Kbps, 100 kbit/s, 50 kbit/s, 20 kbit/s, 10 kbit/s, autobaud
- K-type thermocouple
- 14-bit resolution of each channel
- Accuracy: 0.25 °C.
- Temperature range: -200 °C to +1350 °C
- Accuracy: 0.25 °C.
- Accuracy from - 200 °C to 700 °C: ± 2 °C.
- Accuracy from 700 °C to 1350 °C: ± 4 °C.
- Safety: Cold junction compensation
- Galvanic isolation: Channel 1+2 to channel 3+4: Max. 500 V.
- Electrical isolation: Channel 1…4 for power supply: Max. 500 V.
Technical specifications
- Rail mounting (Mounting rail 35 mm x 7.5 mm)
- Product type
I/O module
- Interfaces
CANopen
- Type
UC-CANOPEN-THERMO4_K
- Operating voltage
7 V DC
24 V DC
- Max. operating temperature
50 °C
- Min. operating temperature
10 °C
- Operating voltage
7 to 24 V DC
- Operating temperature
10 up to 50 °C
- I/O number
4
- No. of inputs
4 x
- No. of outputs
0 x
- Dim
(W x H) 22.5 mm x 117 mm
- Max. current consumption
130 mA
- Height
117 mm
- Width
22.5 mm
- Manufacturer part #
UC-CANOPEN-THERMO4_K
- Type
Robust mounting rail module for rail mounting with integrated cold junction compensation and galvanic isolation
- Inputs
2 or 4 temperature inputs for K-type thermocouples with 14-bit AD converters
- Interfaces
CAN bus:
- Current consumption
130 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796649 Deditec UC-CANOPEN-THERMO4_K UC-CANOPEN-THERMO4_K I/O module CANopen No. of inputs: 4 x No. of outputs: 0 x I/O number:
User & Safety Instructions
User & Safety Instructions 3796649 Deditec UC-CANOPEN-THERMO4_K UC-CANOPEN-THERMO4_K I/O module CANopen No. of inputs: 4 x No. of outputs: 0 x I/O number:
Description
The UC‑CANopen‑Thermo4_K is a precise temperature measuring module with CANopen Interface for detecting up to four type‑K thermocouples. Ideal for temperature monitoring in industrial plants or measurement tasks in test stands. Galvanic isolation, filter functions and robust industrial design ensures reliable values. Perfect combination with a relay output module for switching tasks.
This text is machine translated.
This text is machine translated.
Features
- Designed for industrial applications in the control cabinet and in distributed automation structures
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
- Application areas: Engineering, plant automation, test stands, switch cabinet construction, building automation and industrial network controls
Scope of delivery
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
