Deditec UC-USB-R16_3A UC-USB-R16_3A GPO module USB No. of digital outputs: 16 No. of digital inputs: 0 No. of relay outp
Part number:
Item no:
Product type
GPO module
Interfaces
USB
No. of relay outputs
16
Type
UC-USB-R16_3A
Operating voltage
12 V DC
24 V DC
Datasheet (PDF)
Number
Total (€ 335.29 / piece)
€ 335.29
plus VAT.
Highlights & Details
USB digital outputs switch - relay module with 16 digital outputs (3 A)
- USB 2.0 interface up to 480 Mbit/s.
- Quick start-up through plug-and-play integration
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface
- Closer (NO)
- Max. SWITCHING VOLTAGE 48 V AC/DC
- Max. SWITCHING CURRENT 3 A AC / DC
- Max. TRANSPORT CURRENT 3 A AC / DC
- Max. breaking capacity 90 W
- Timeout-protection function (can be configured via software)
- Status LED for each output
Technical specifications
- Galvanic isolation: Insulated up to max. 500V AC from the voltage supply.
- Protection function: Integrated configurable software-timeout protection function (automatic switch-off of the outputs in case of a loss of connection to the PC).
- Connection terminals: Plug-in, wiring-proof WAGO-spring force clamps.
- Operating temperature range from 10°C to 50°C.
- Product type
GPO module
- Interfaces
USB
- Type
UC-USB-R16_3A
- Operating voltage
12 V DC
24 V DC
- Operating voltage
12 to 24 V DC
- Height
120 mm
- Length
111 mm
- Width
22.5 mm
- Max. modules
16
- No. of digital inputs
0
- No. of digital inputs
0
- No. of digital outputs
16
- No. of relay outputs
16
- Dim
(L x W x H) 111 x 22.5 x 120 mm
- Control LEDs
Yes
- Manufacturer part #
UC-USB-R16_3A
- Fitting type (details)
DIN rail mounting / DIN rail mounting
- Relay rating
3 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796628 Deditec UC-USB-R16_3A UC-USB-R16_3A GPO module USB No. of digital outputs: 16 No. of digital inputs: 0 No. of relay outp
User & Safety Instructions
User & Safety Instructions 3796628 Deditec UC-USB-R16_3A UC-USB-R16_3A GPO module USB No. of digital outputs: 16 No. of digital inputs: 0 No. of relay outp
Description
The USB relay module with 16 digital outputs (3 A) allows the safe switching of loads up to 48 V/3 A. Thanks to USB plug & play, the module is ready for immediate use. Electrical isolation, timeout protection and status LEDs increase operational safety. Typical applications are switching lighting systems or controlling pumps and valves in industrial plants.
This text is machine translated.
This text is machine translated.
Features
- Configurable event control
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
- Free configuration and testing software
Scope of delivery
- USB cable A-plug to C-plug
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector

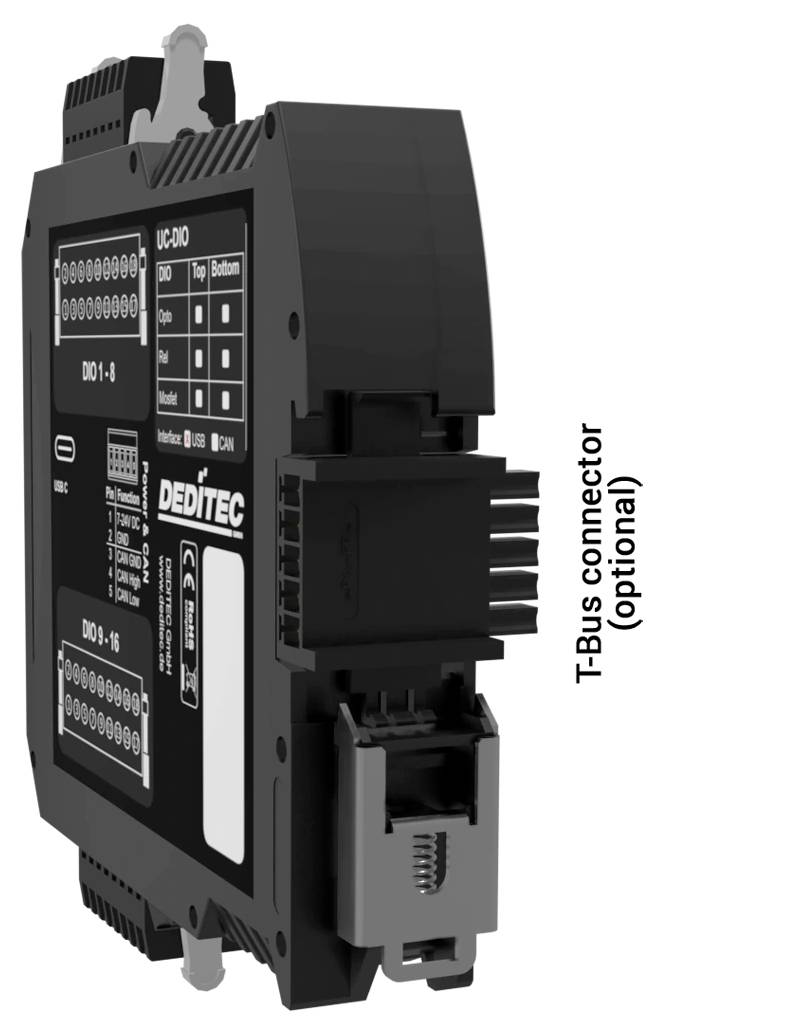

- DIN-rail connector
System requirements
- Windows, Linux
