Buy DEFENDER by Adam Hall 86100BLK Cable bridge Black

Black cable protection made from robust material with multiple channels. Ideal for safely routing cables in areas with pedestrian or vehicle traffic.

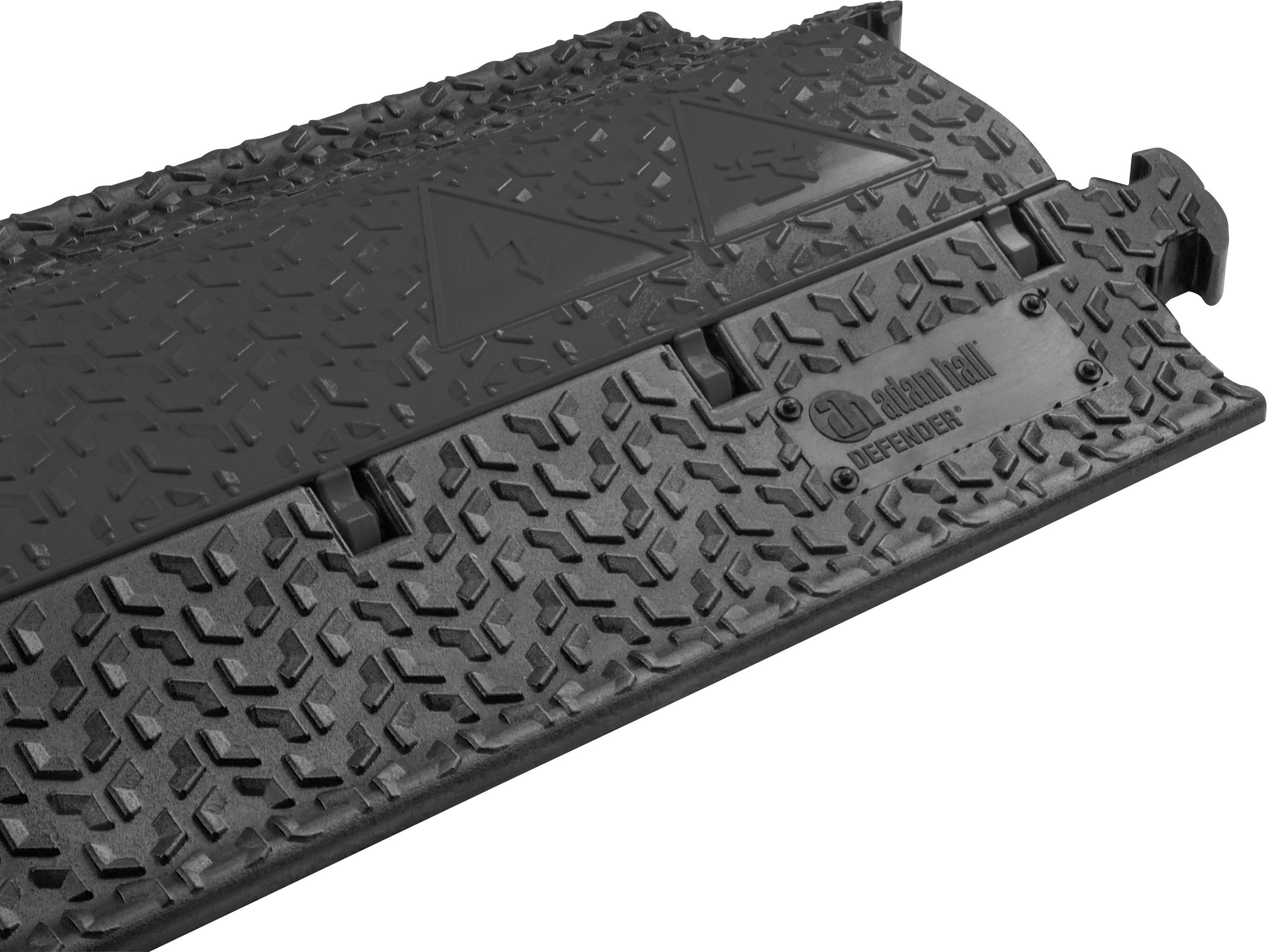

A non-slip, black rubber cover plate with 'defender' lettering, suitable for heavy vehicles for surface protection.

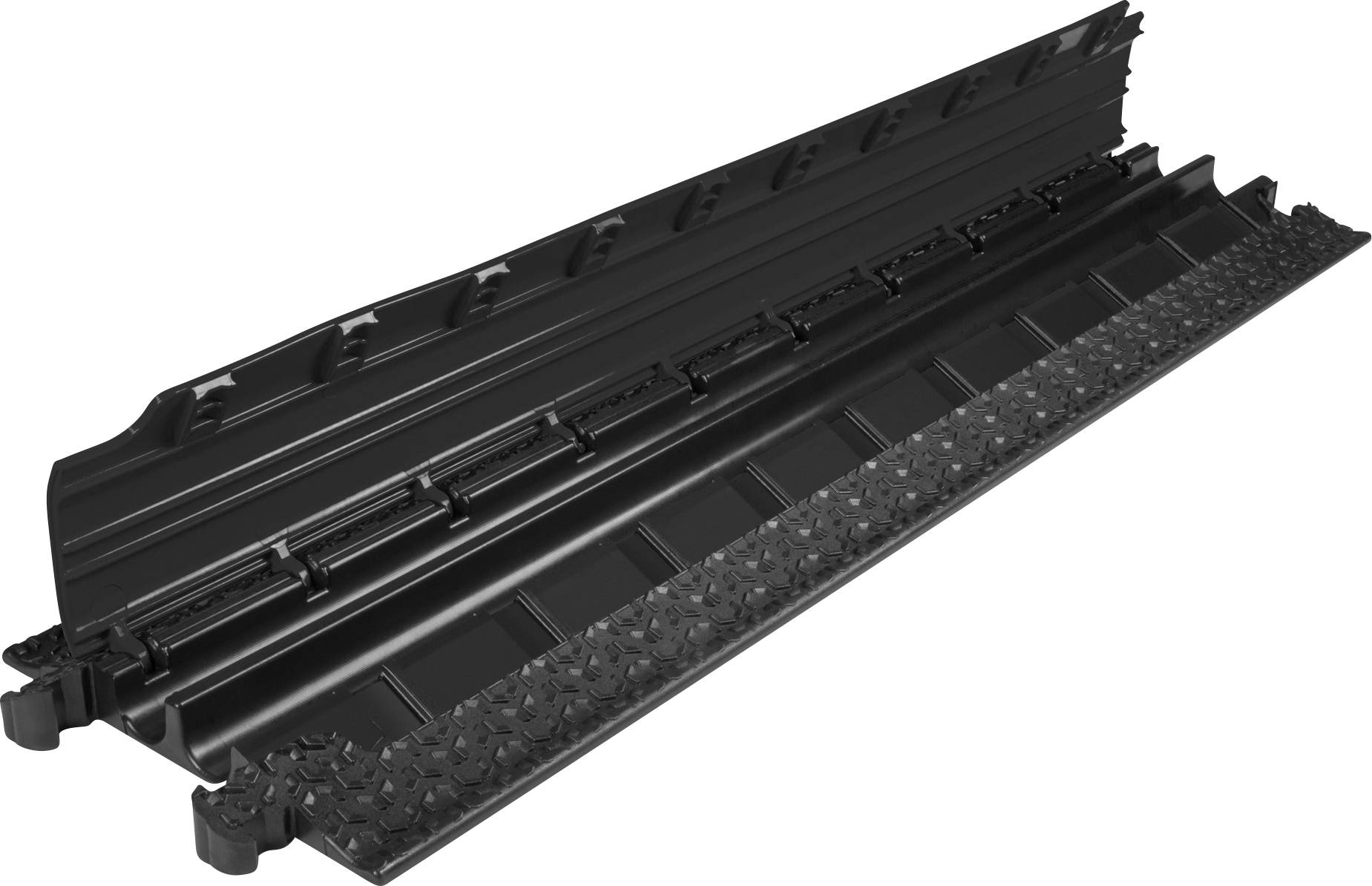

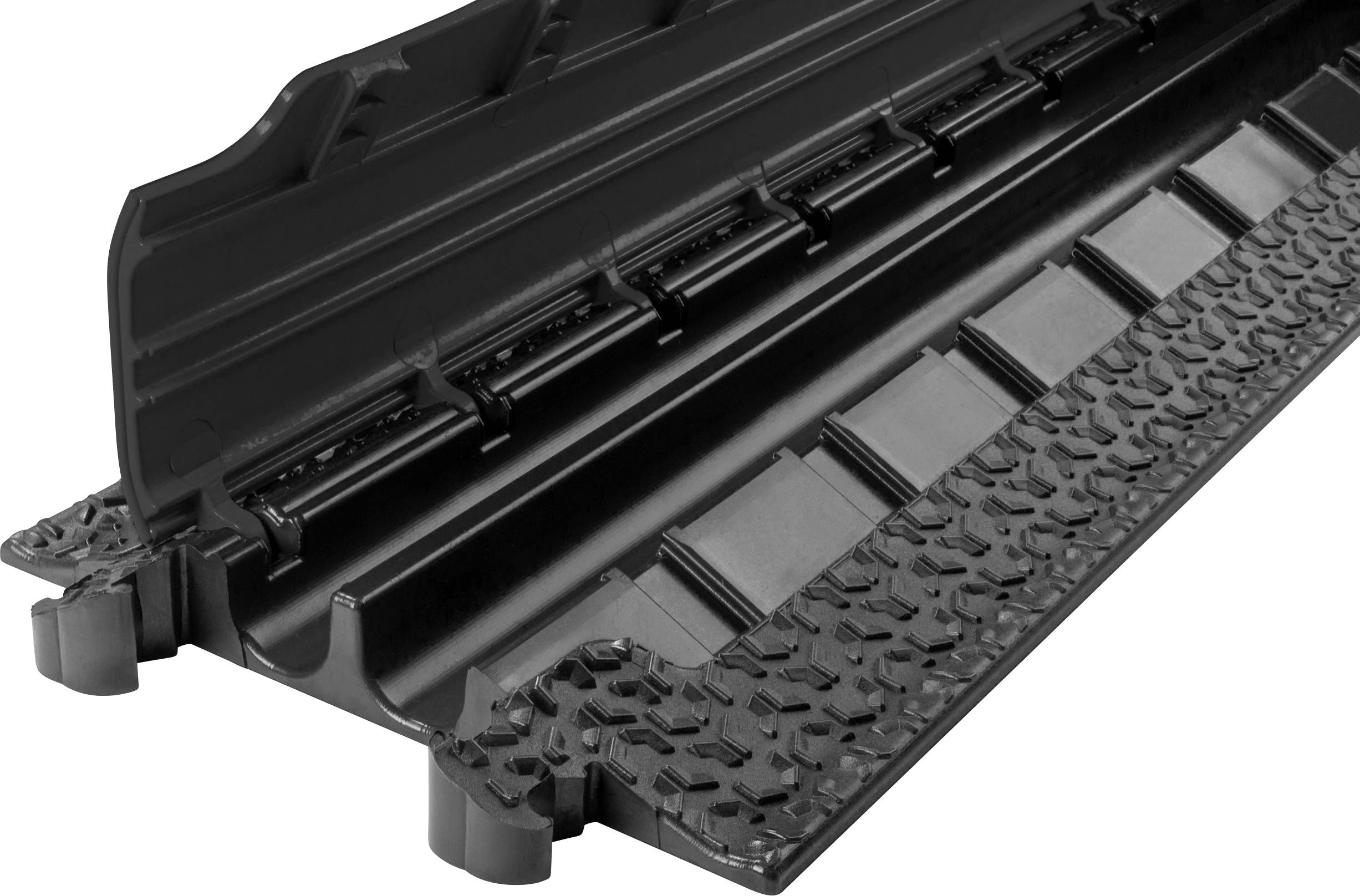

A black, elongated plastic object with textured surfaces and a grid pattern, potentially part of a technical device or vehicle.

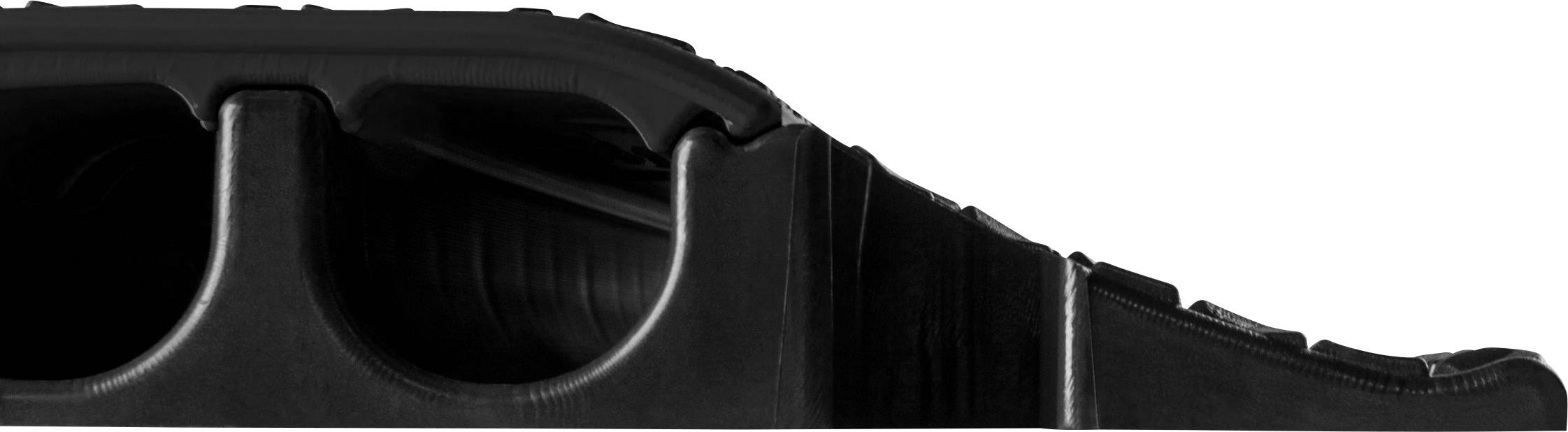

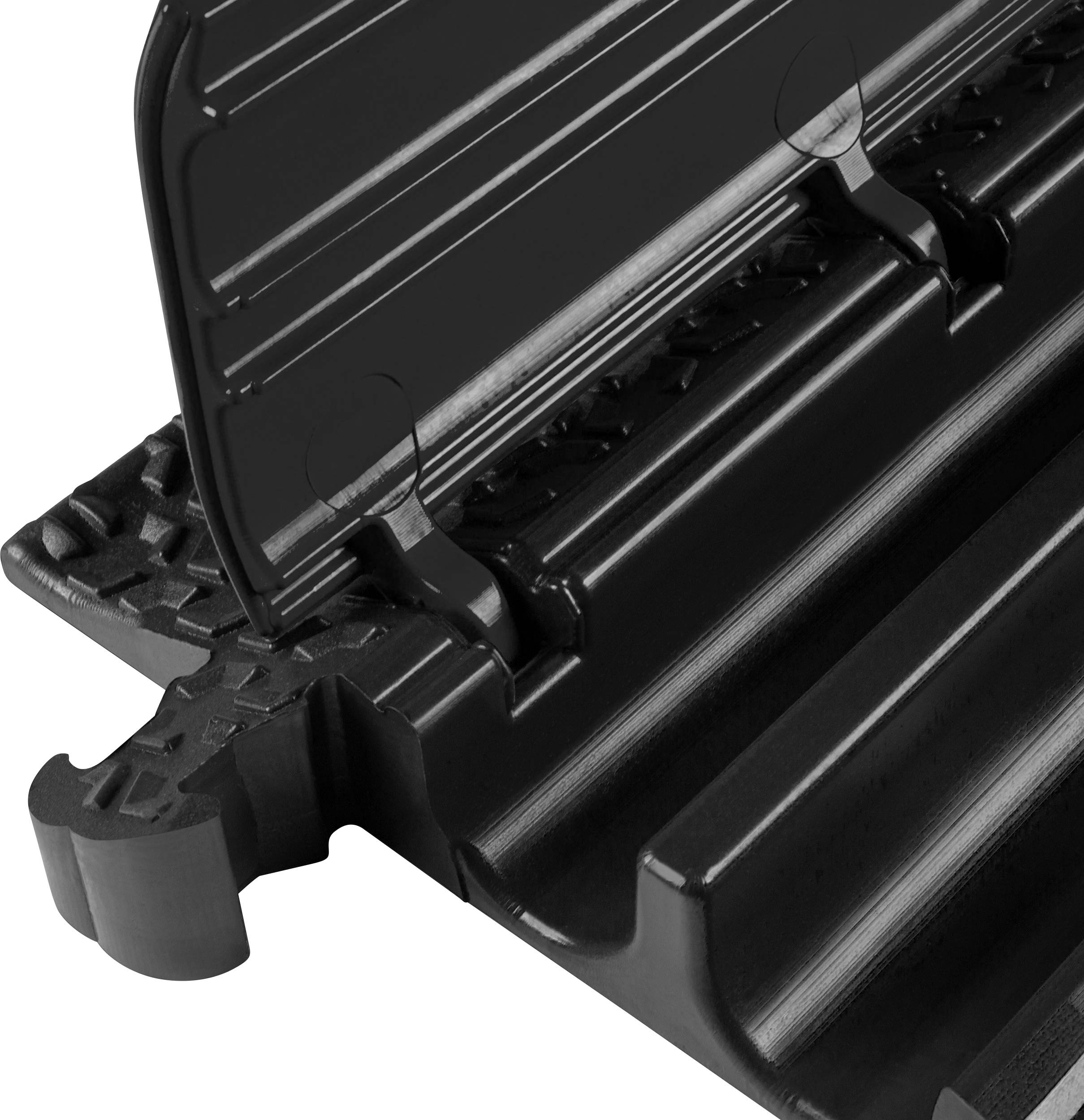

Close-up of a black, textured plastic structure with curved openings. The form appears stable and functional.

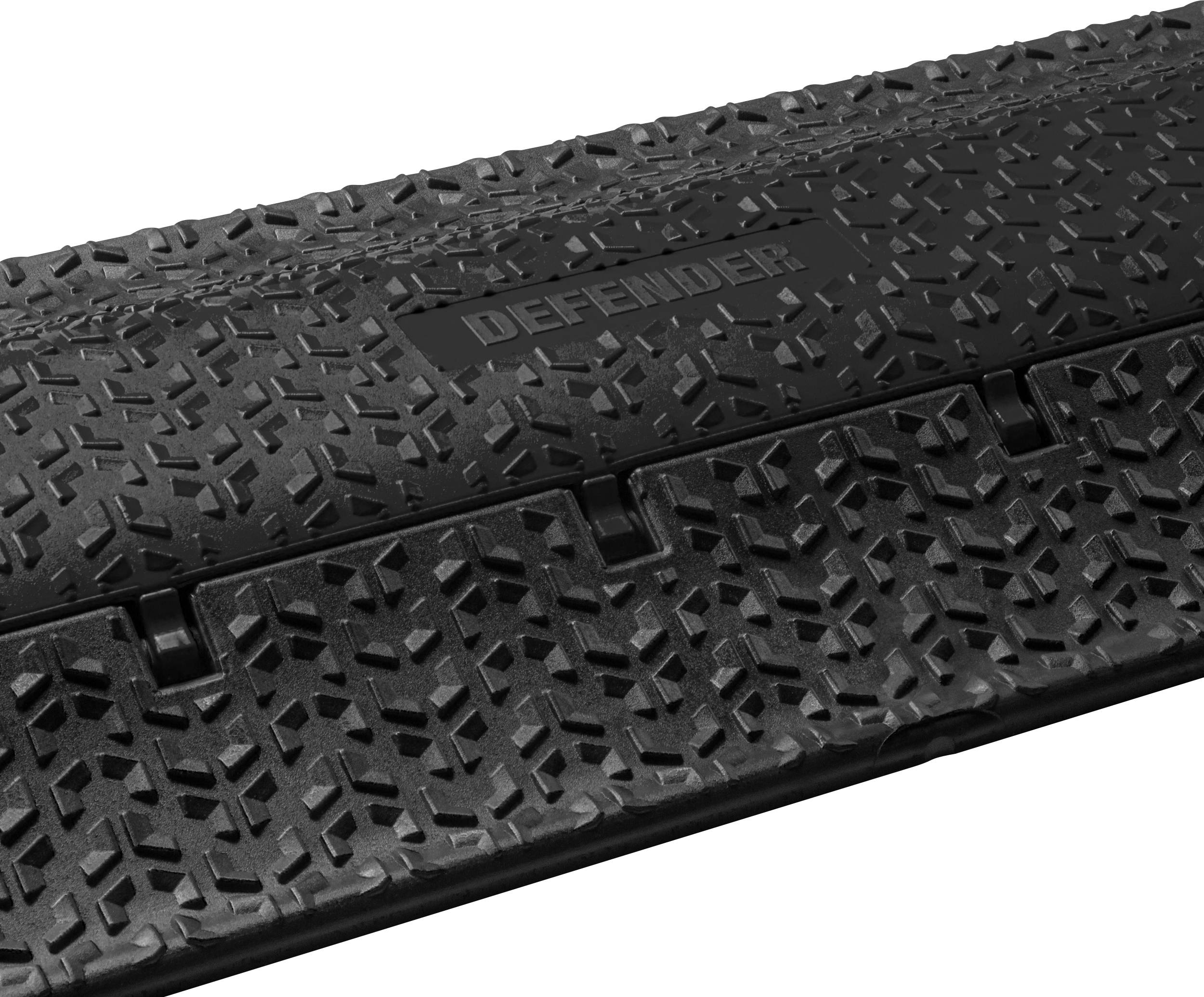

A black cable protector with a non-slip, textured pattern and the inscription 'DEFENDER' in the centre.

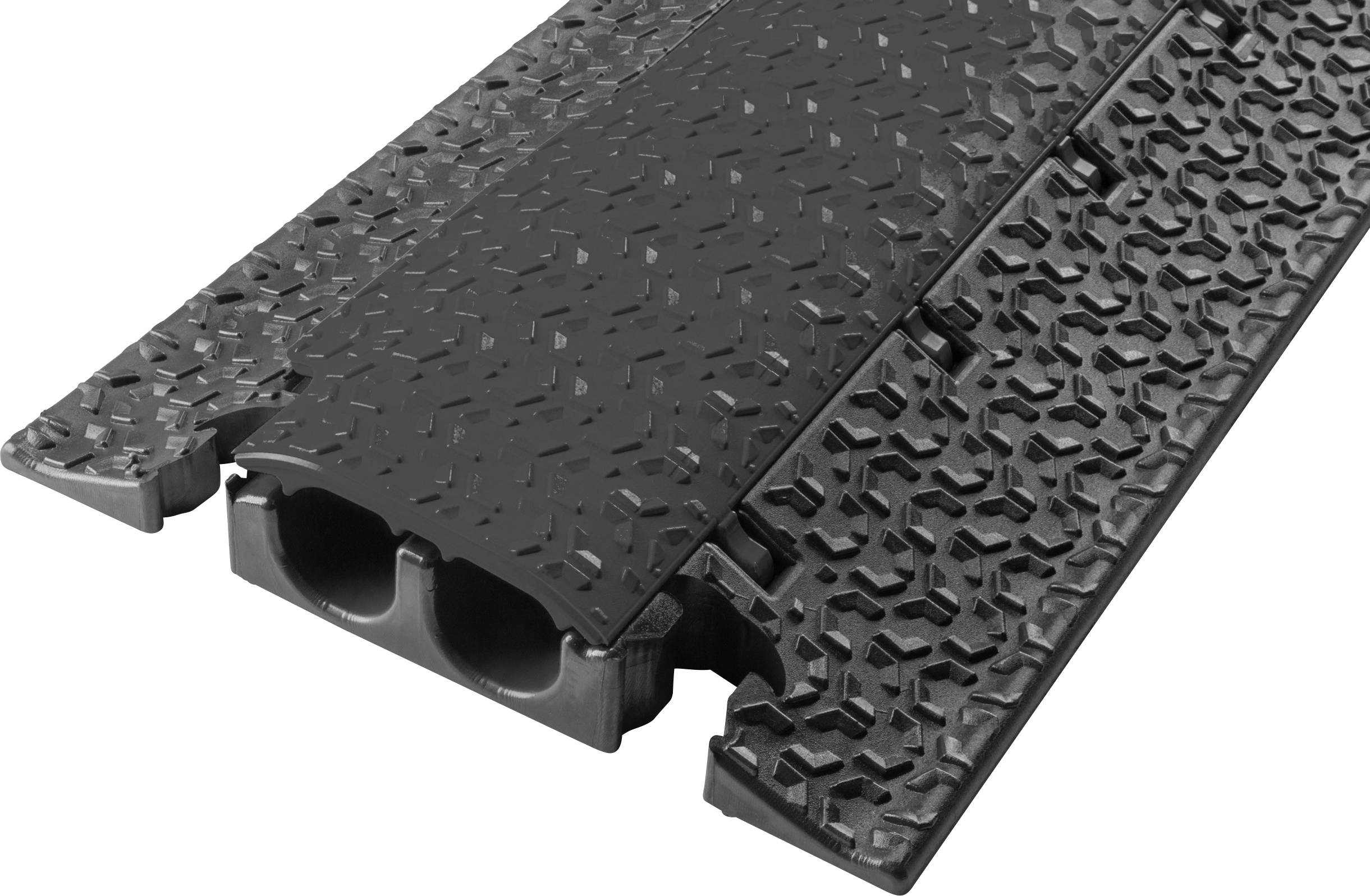

Black, non-slip cable bridge with two channels, designed to safely protect cables and prevent accidents. Ideal for construction sites.

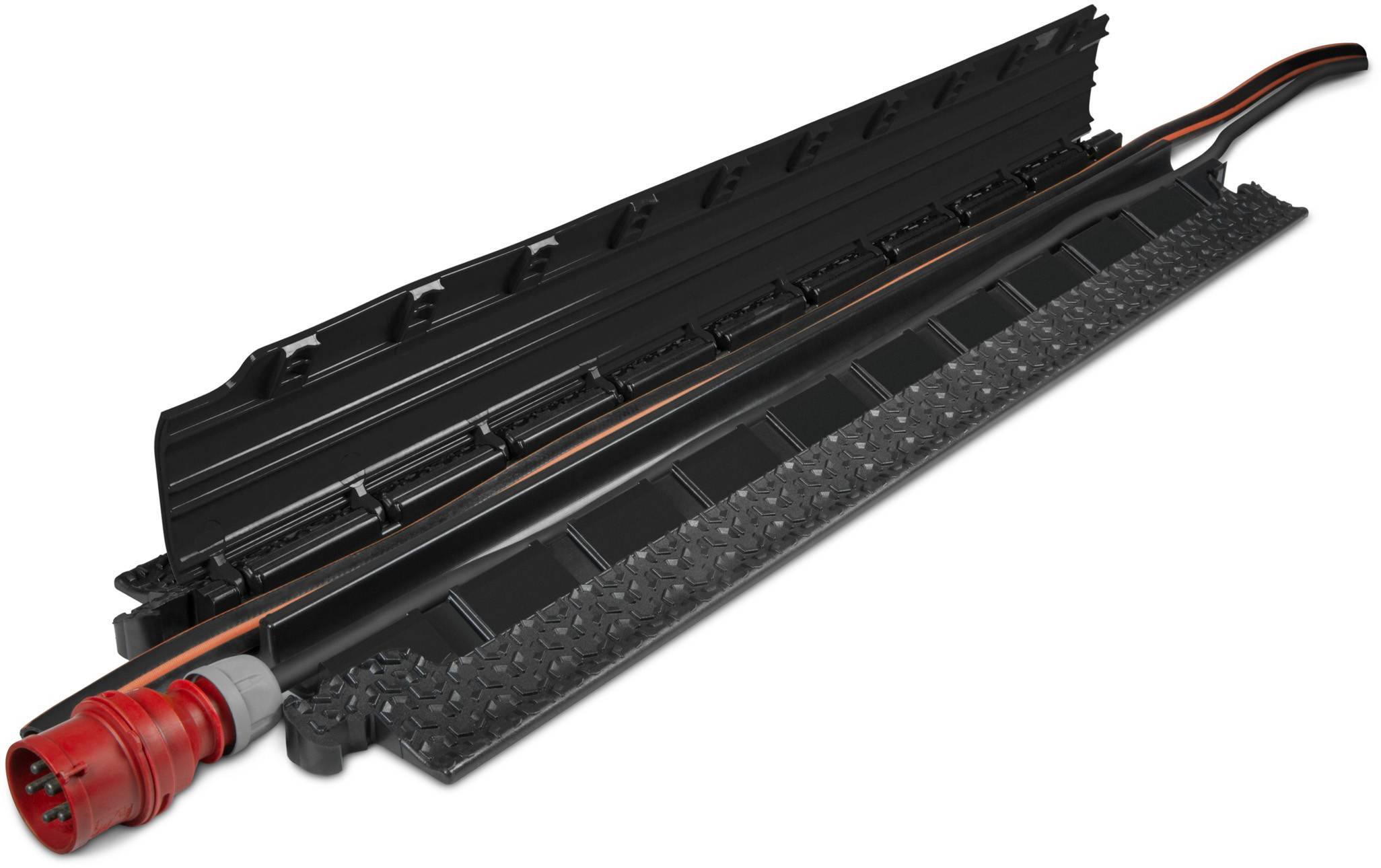

Cable trunking with an open lid, red plug, and black-orange cable routing, showing the internal structure for cable management.

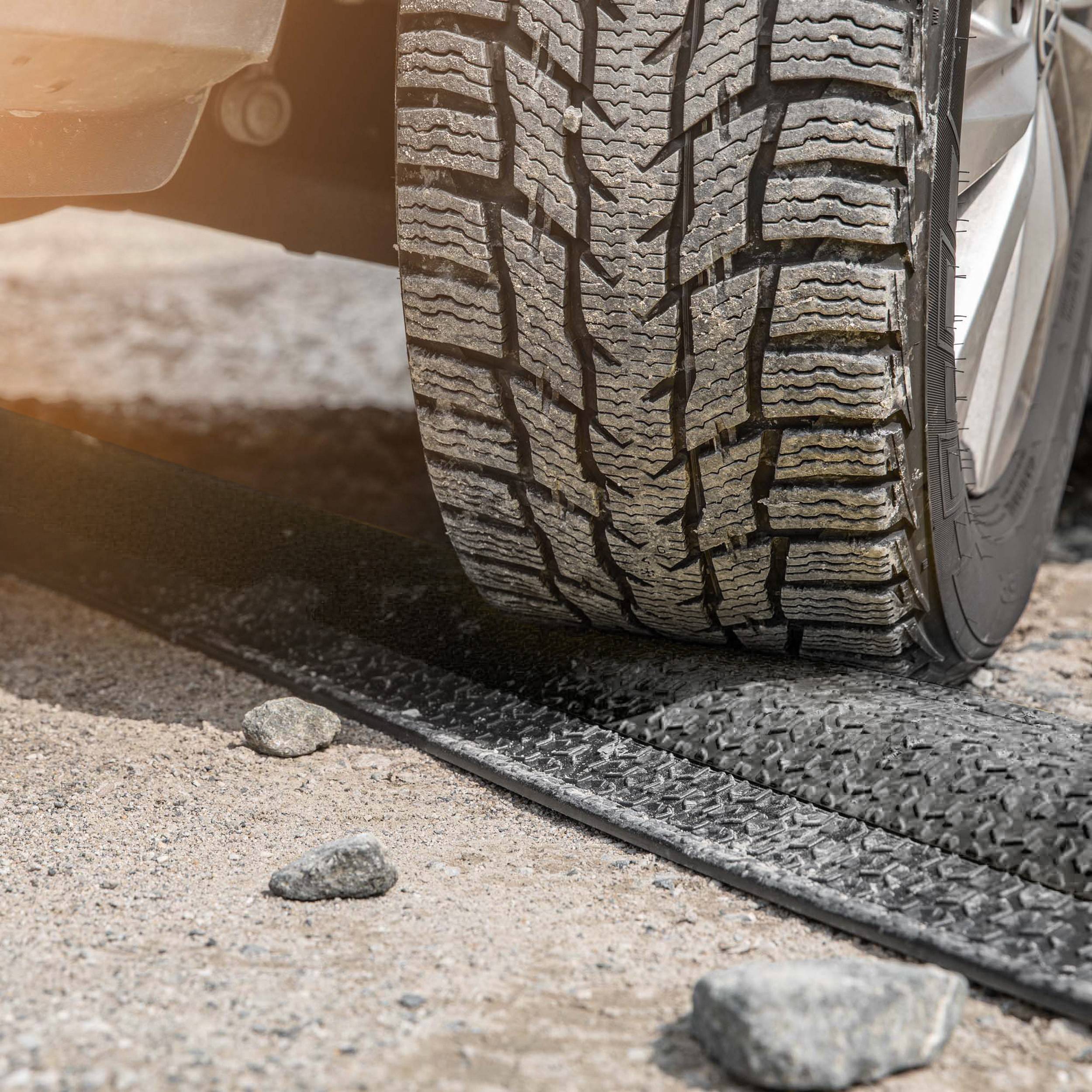

Close-up of a car tyre on a dusty road, leaving abrupt braking or acceleration marks. Stones are scattered around the tracks.

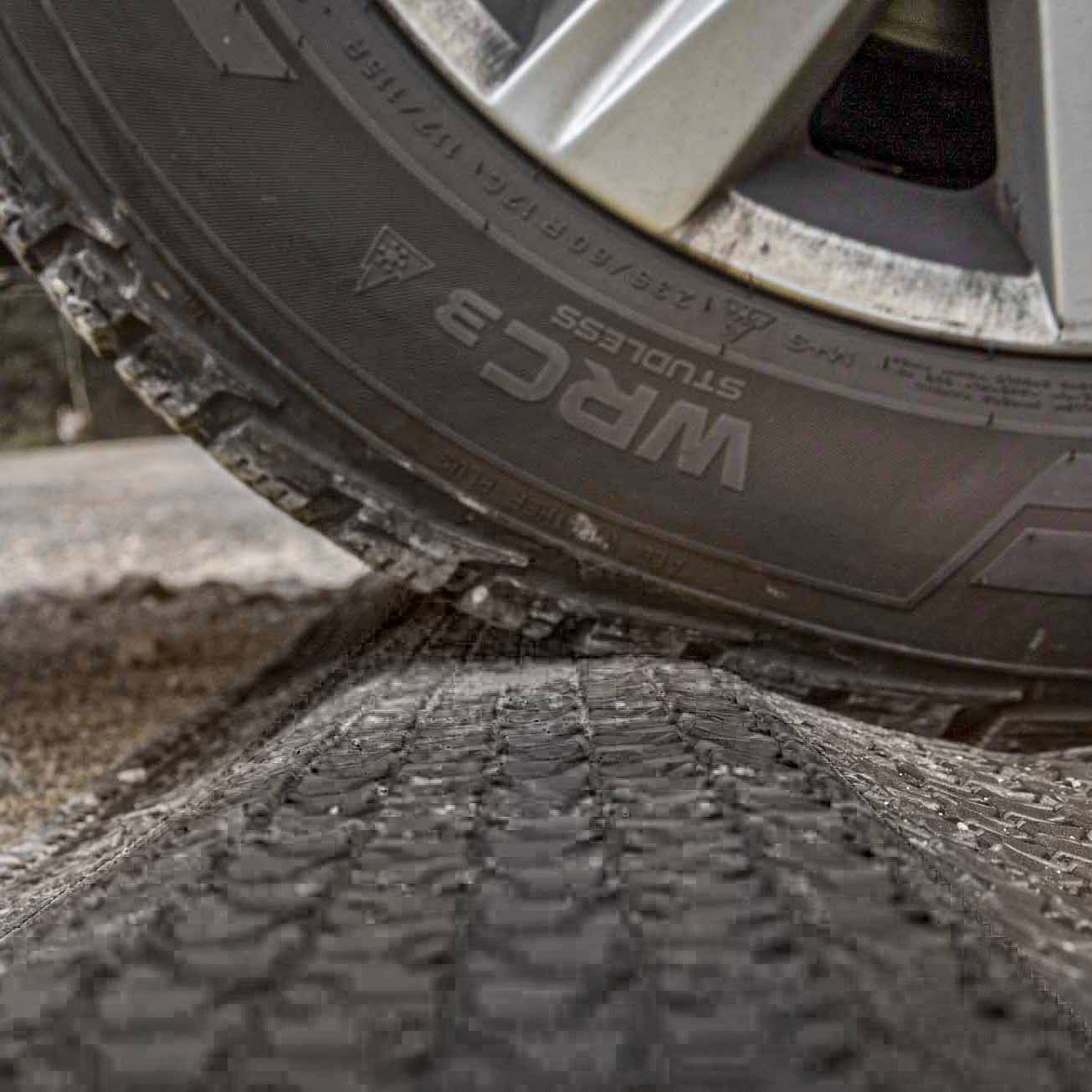

Close-up of a car tyre on an uneven road. The tyre has distinctive grooves and is partially worn.

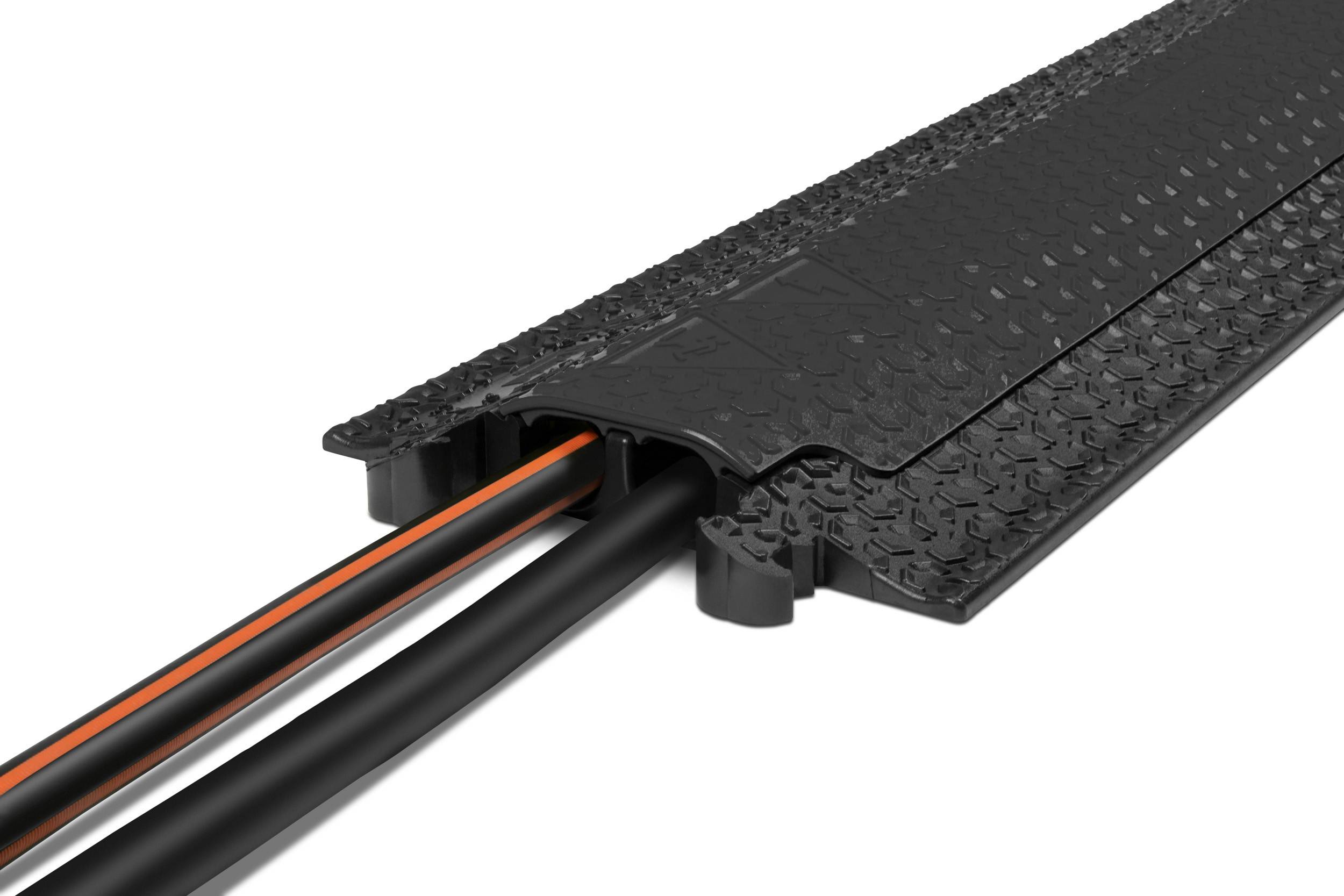

Black rubber cable protector with a ramp-like design, featuring two orange cables guided through a protective channel.

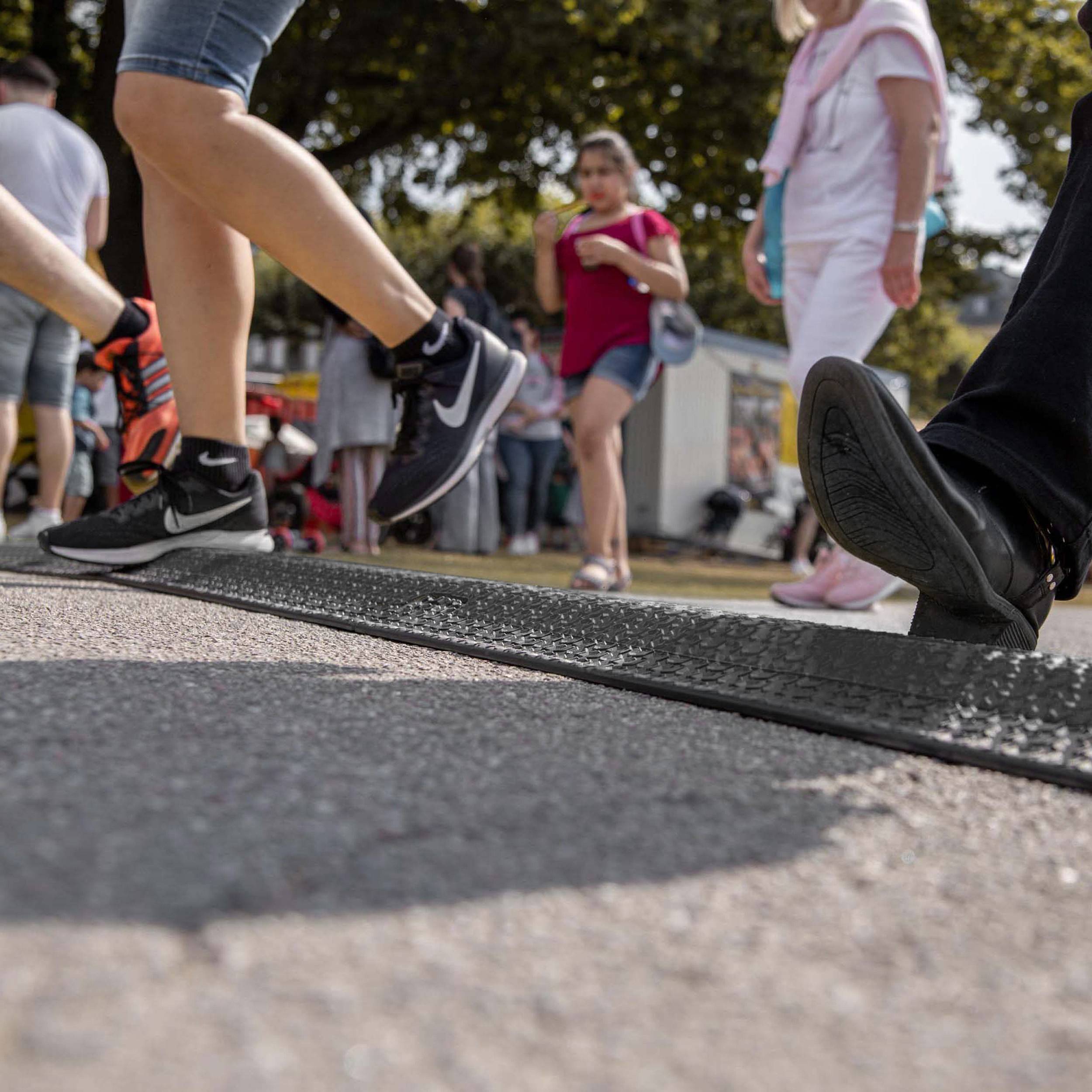

People are walking on a pavement. In the background, people are standing in front of a stall, some holding drinks in their hands.

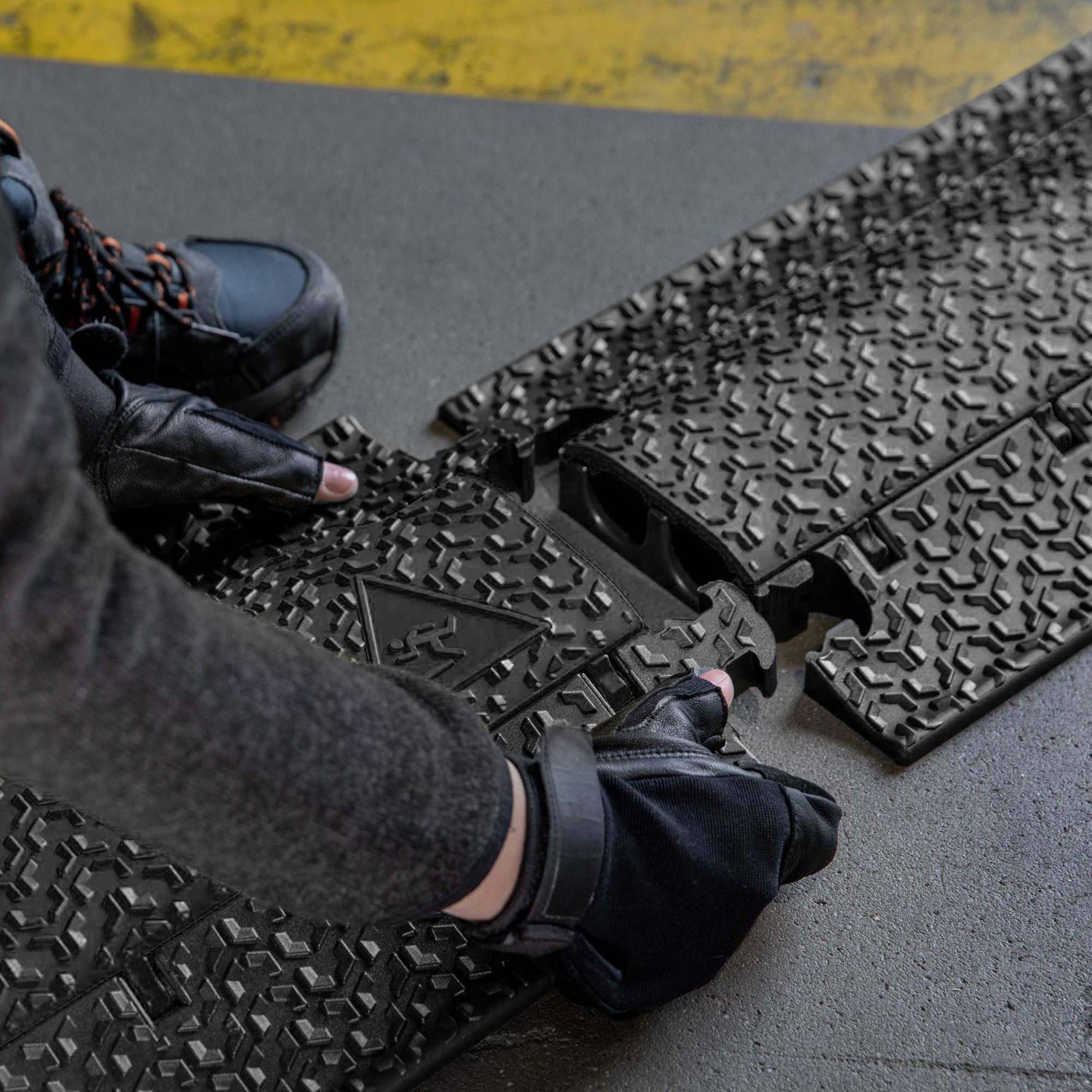

'A person is repairing a street cable channel wearing rubber gloves.'

A cyclist crosses a kerb ramp that leads diagonally onto the street. Blurred buildings are visible in the background.

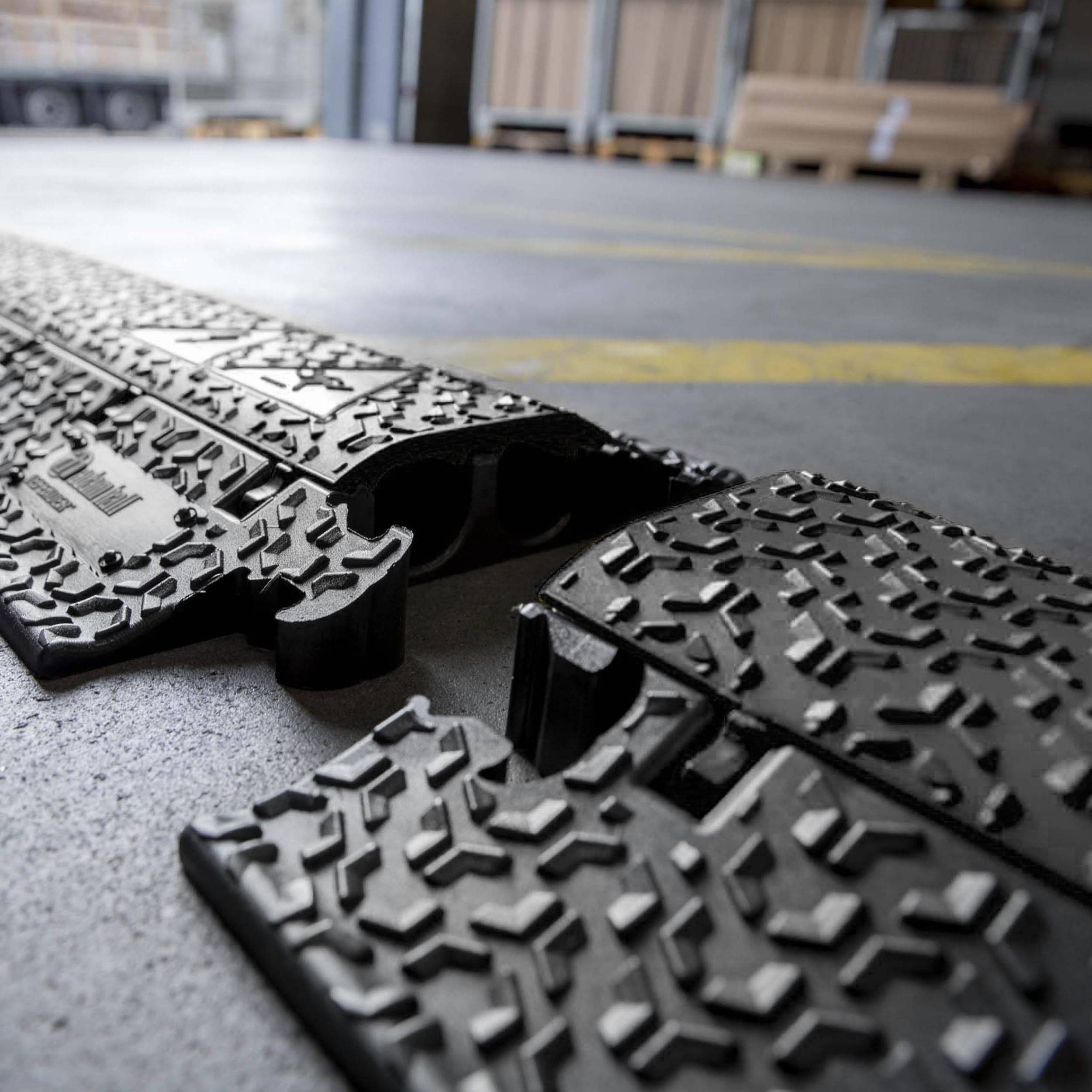

A cable trunking with a robust, non-slip design lies on a concrete floor in a warehouse environment. Cardboard boxes are blurrily visible in the background.

1/17

Fast track dispatch on Wed, 7 Oct

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (1 m = € 0.09)

€ 88.23

plus VAT.

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

DEFENDER® MICRO 2 cable bridge with 2 channels in black

Colour, blackChannels: 2Especially skid and tread-proof 3D LaserGrip® surfaceErgonomic design for even better viewing and inspectionMade of extremely robust and break-proof TPU (thermoplastic polyurethane)Fire protection class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)Resistant to oil, petrol and short-term contact with solventsReliable cable and personal protection for indoor and outdoor useSelf-cleaning hinge and comfortable locking system

Technical specifications

Number of channels: 2
Material: For cable-Ø: 2 x 35 x 30 mm
Thermoplastic polyurethane (TPU)
Resistant to: Oil, petrol and short-term contact with solvents
Suitable for: DEFENDER® MICRO 2 cable bridge

Product type: Cable bridge

Factory colour: Black

Weight: 5.1 kg

Length: 1005 mm

Width: 273 mm

Height: 45 mm

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2190600 DEFENDER by Adam Hall 86100BLK Cable bridge Black

Warranty Terms

Warranty Terms 2190600 DEFENDER by Adam Hall 86100BLK Cable bridge Black

Description

Defender MICRO 2 BLK Cable bridge with 2 channelsThe compact Defender® MICRO cable bridge is ideal for indoor and outdoor use, for example for exhibitions, trade fairs, shopping centers, stages or studios. It has two 35 x 30 mm cable guides for power cables and water hoses with 2 tons load capacity per 20 x 20 cm area carry MICRO-cable bridges for smaller trucks, vehicles, trolleys, bicycles, wheelchairs and pedestrians. The special sliding and step resistance is ensured by the LaserGrip® surface with its special structure and unique design. Extremely break-proof TPU-material provides for the long life of the robust cable bridge.Even more safety thanks to the new 3D LaserGrip® surfaceThe innovative design of the 3D LaserGrip® surface significantly increases the resistance to step and slip. Due to the special shape and surface structure, the risk of moving a whole line of Defender® MICRO cable bridges is significantly reduced, even if it is overrun by heavy vehicles.Mark your cable bridges! You have the possibility to personalize all Defender cable bridges with your company logo starting from an order quantity of only 30 pieces per model. Please do not hesitate to contact us.

This text is machine translated.

Features

Product type: Cable bridges
Type 2 channels
Width 273 mm
Height 48 mm
Length 1005 mm
Number of channels 2
Width of channel 135 mm
Height of channel 130 mm
Width of channel 235 mm
Height of channel 230 mm
Material TPU
Load capacity approx. 2 t with an area of 20 x 20 cm
Hardness range 88 Shore ± 4 Shore
Flame protection class B2
Temperature range from -30°C to 60°C.
Weight 5.2 kg
Special feature DEKRA certified.
