DEFENDER by Adam Hall Cable bridge 85200BLK Polyurethane Black No. of channels: 3 1005 mm Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable bridge
Length
1005 mm
Use
Inside/outside
Load capacity
Bicycle
Pedestrian
Forklift
Pallet truck
Car
Wheelchair
Factory colour
Black
Highlights & Details

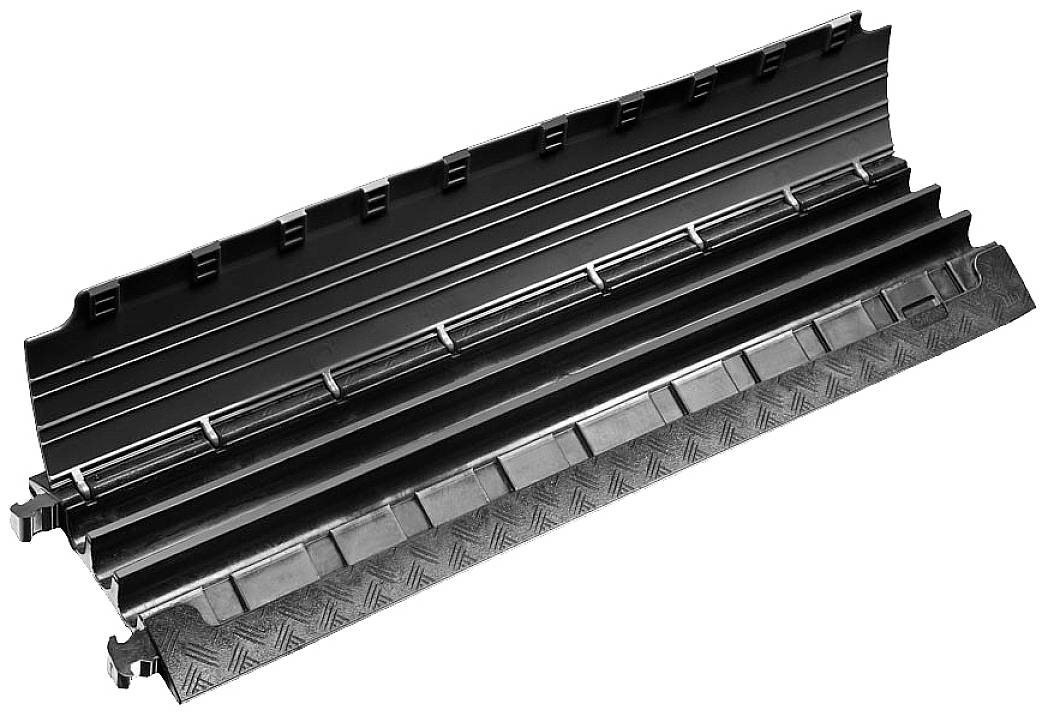

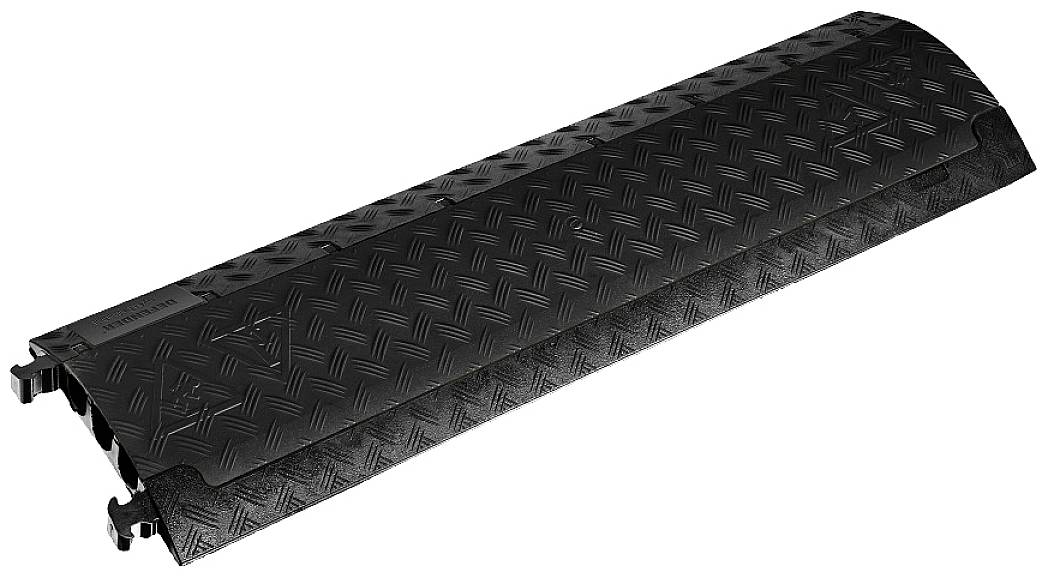

Defender MINI BLK Cable bridge 3 channels with black cover
- Black
- No. of channels: 3
Technical specifications
- Wide channel 1 : 35 mmHeight of channel 1 : 30 mmWide channel 2 : 35 mmHeight of channel 2 : 35 mmWide channel 3 : 35 mmHeight of channel 3 : 30 mmLoad capacity : Approx. 2 t with an area of 20 x 20 cmChemical resistance: Petrol-resistant, short-term contact with solvents, oil-resistantHardness range : 88 Shore ± 4 ShoreFlame protection class : B2Temperature range : -30 to +60 °C.Weight: 5.9 kg
- Product type
Cable bridge
- Factory colour
Black
- Length
1005 mm
- Use
Inside/outside
- Load capacity
Bicycle
Pedestrian
Forklift
Pallet truck
Car
Wheelchair
- Manufacturer part #
85200BLK
- Type
MINI BLK
- Dim
(L x W x H) 1005 x 290 x 50 mm
- Channels
3
- Assembly
Top
- Content
1 pc(s)
- Features
Movable top
Oil-resistant
Petrol-resistant
- Material
Polyurethane
- Width
290 mm
- Height
50 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2616397 DEFENDER by Adam Hall Cable bridge 85200BLK Polyurethane Black No. of channels: 3 1005 mm Content: 1 pc(s)
Description
The small one among the big ones. Light, professional and universally applicable. The new DEFENDER Mini fulfills all expectations of a professional cable protection and extends THE DEFENDER series by a compact, very light (only 5 kg!), but passable cable bridge.Equipped with three cable channels and a cable channel cross-section of 35 mm with a height of 48 mm, this bridge can be found mainly indoors, but the load-carrying capacity of over 2 tons can also be easily used for car traffic. THE underside of THE DEFENDER Mini is provided with an anti-slip surface, in order to guarantee optimum grip on as many floors as possible. Like all Defender series bridges, DEFENDER Mini is resistant to oil, acid, & petrol and features the patented self-cleaning hinge.
