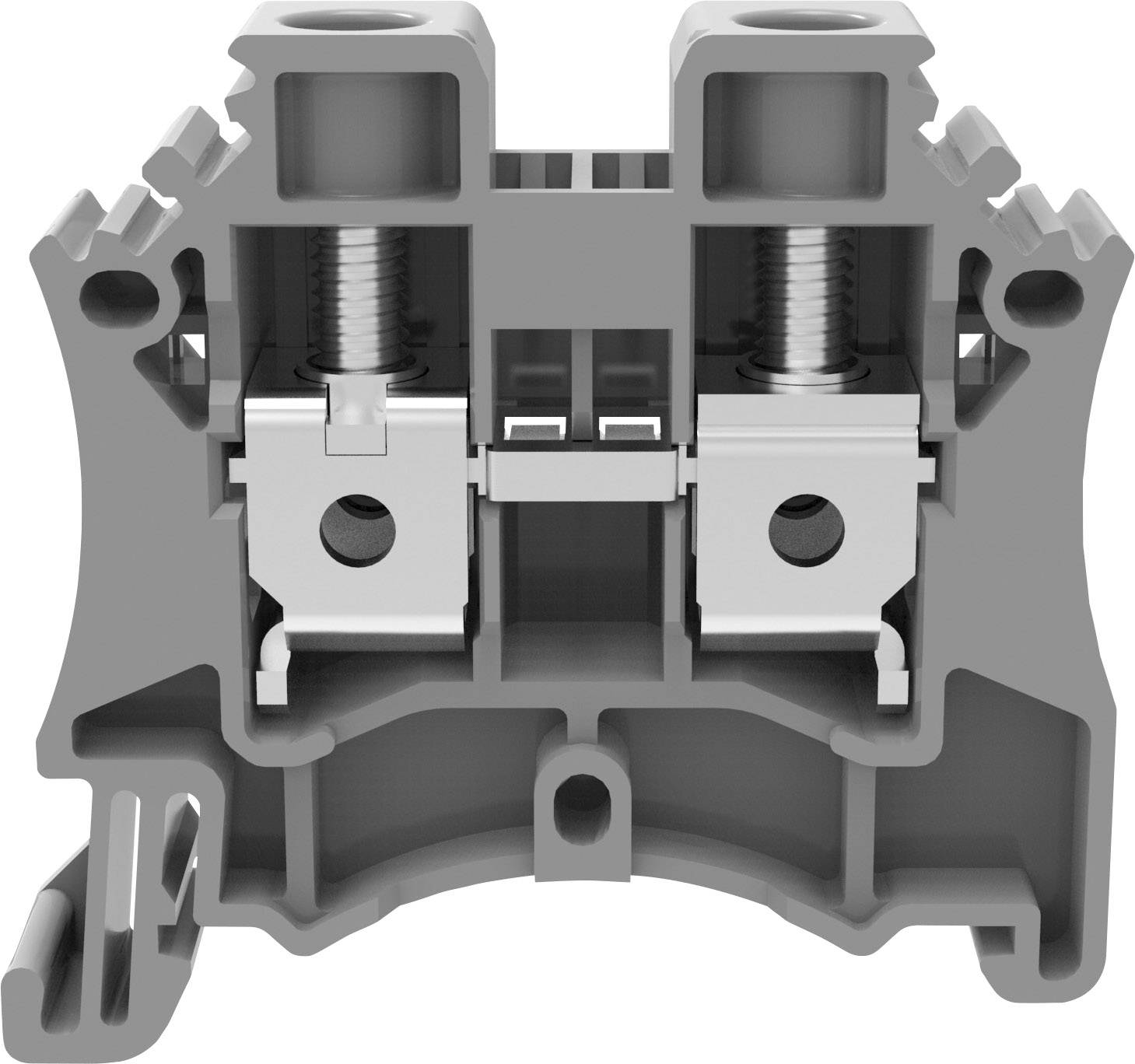

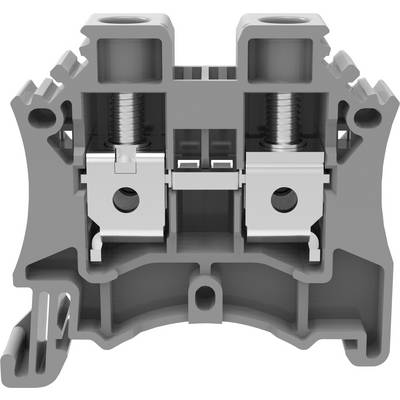

Degson DC10-01P-11-00A(H) Continuity Screw terminal Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Screw terminal
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
NaN A
Number
Total (€ 0.82 / piece)
€ 0.82
plus VAT.
Highlights & Details
DEGSON DC10 series terminal gray 0.5 mm² - 10 mm²
Our service for you
Technical specifications
- Product type
Continuity
- Connection
Screw terminal
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
6
- Number of pins
1
- Factory colour
Grey
- Nominal current
57 A
65 A
- Nominal current - rounded value
NaN A
- Nominal voltage
1000 V
600 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
DC10-01P-11-00A(H)
- Content
1 pc(s)
- Type
DC10-01P-11-00A(H)
- Dim
(L x W x H) 44 x 10 x 43.5 mm
- Width
10 mm
- Height
43.5 mm
- Length
44 mm
- RoHS-compliant
Yes
- Compatible with (details)
DIN rail NS 35
7.5
NS 35
15 and NS 32
- Rated surge voltage
8 kV
- Weight
1 g
