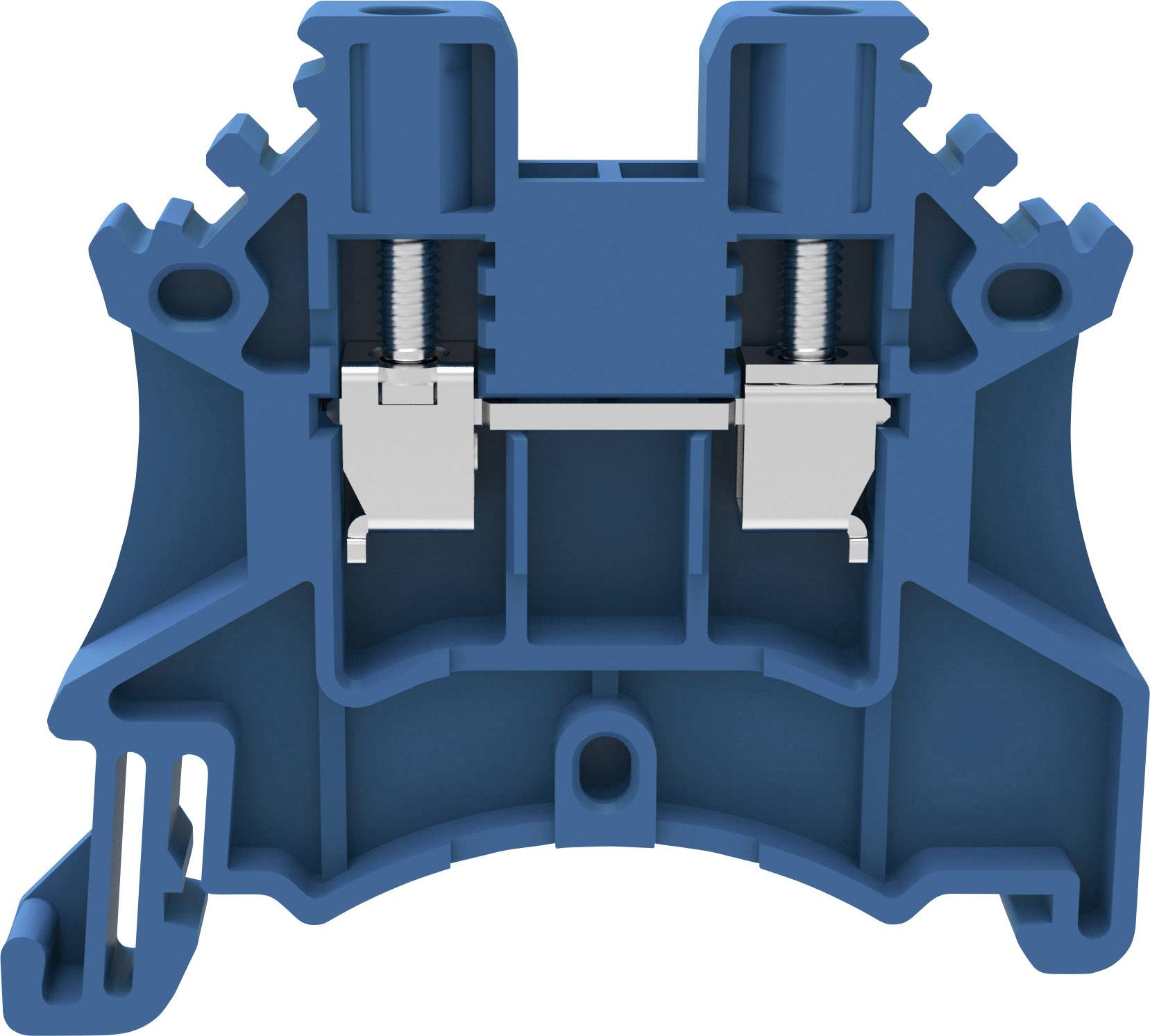

Degson DC2.5-01P-12-00A(H) Continuity Screw terminal Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Screw terminal
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
NaN A
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.50
10
8% = € 0.04
€ 0.46
25
10% = € 0.05
€ 0.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.50 / piece)
€ 0.50
plus VAT.
14-day return policy included
Highlights & Details
DEGSON DC2.5 series terminal blue 0.2 mm² - 2.5 mm²
- For rigid and flexible conductors, screw connection
Our service for you
Technical specifications
- Product type
Continuity
- Connection
Screw terminal
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
26
- AWG max.
12
- Number of pins
1
- Factory colour
Blue
- Nominal current
24 A
25 A
- Nominal current - rounded value
NaN A
- Nominal voltage
1000 V
600 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
DC2.5-01P-12-00A(H)
- Content
1 pc(s)
- Type
DC2.5-01P-12-00A(H)
- Dim
(L x W x H) 42 x 5.1 x 40 mm
- Width
5.1 mm
- Height
40 mm
- Length
42 mm
- RoHS-compliant
Yes
- Compatible with (details)
DIN rail NS 35
7.5
NS 35
15 and NS 32
- Rated surge voltage
8 kV
Description
Powerful connection with high-quality screw connection
