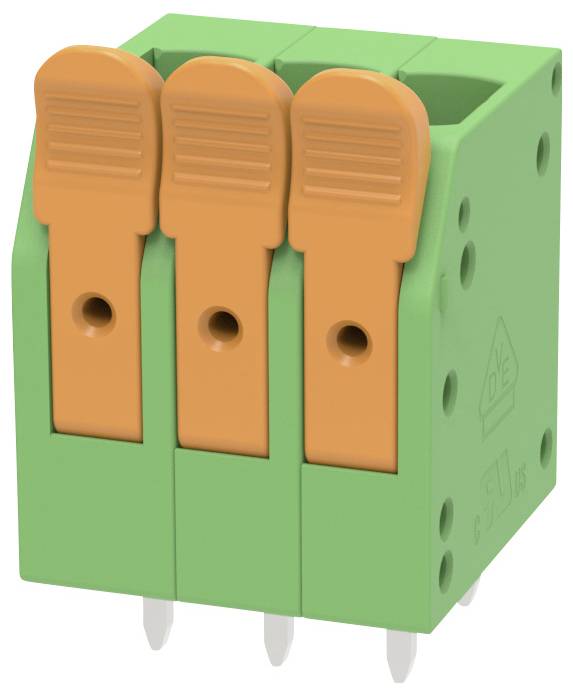

Degson DG2204V-5.0-03P-14-100Z(H) Terminal block flexible: 0.2-4 mm² fixed: 0.2-4 mm² Number of pins: 3 1 pc(s) Green
EAN:
Part number:
Item no:
Product type
Terminal block
Cross section (flexible) (min.)
0.2 mm²
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (min.)
0.2 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.92
10
7% = € 0.14
€ 1.78
25
10% = € 0.20
€ 1.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
Highlights & Details
PCB terminal block, spring-loaded connection, 3 poles, 32 A, 4 mm², 5 mm pitch
Our service for you
Technical specifications
- Vertical (180°)
- Product type
Terminal block
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- Number of pins
3
- Factory colour
Green
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Content
1 pc(s)
- Dim
(L x W) 16.5 mm x 16.7 mm
- Manufacturer part #
DG2204V-5.0-03P-14-100Z(H)
24-12
- Stripping length
9-11 mm
- Connection
Push-in spring-loaded terminal
- Insulation material
PA 66
- Contact material
Copper
- Moisture Sensitiviy Level (MSL)
2
- Nominal voltage
400 V
- Width
16.7 mm
- Length
16.5 mm
- Pitch
5 mm
- RoHS-compliant
Yes
- Temperature range
-40 to +105 °C
- Plastic free packaging
Plastic-free packaging
