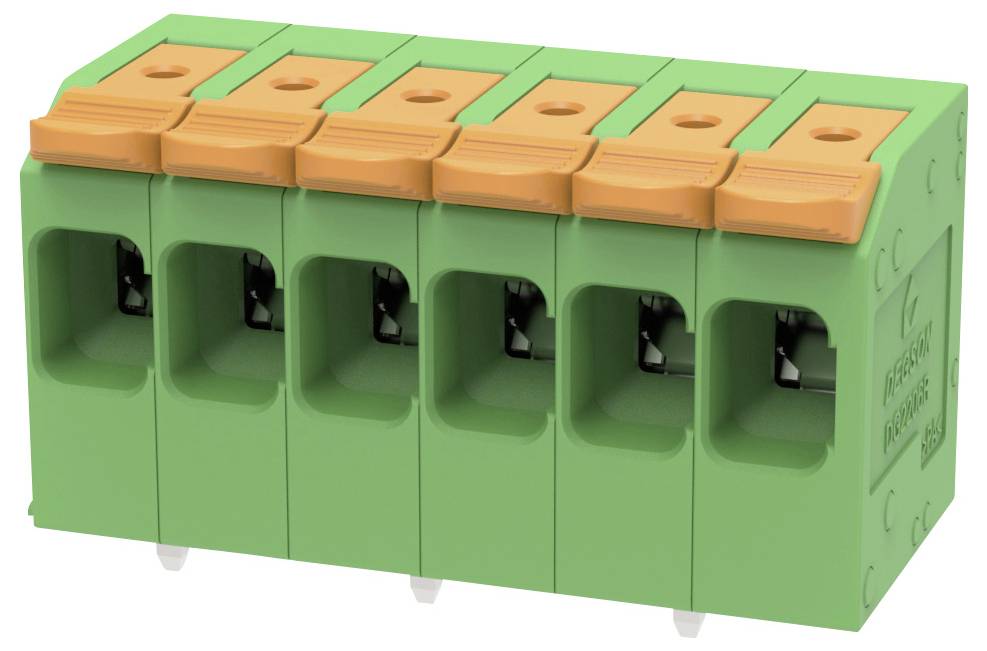

Degson DG2206R-7.5-DA-06P-14-100Z(H) Terminal block flexible: 0.2-6 mm² fixed: 0.2-10 mm² Number of pins: 6 1 pc(s) Gree
EAN:
Part number:
Item no:
Product type
Terminal block
Cross section (flexible) (min.)
0.2 mm²
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (min.)
0.2 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
Number
Total (€ 7.55 / piece)
€ 7.55
plus VAT.
Highlights & Details
PCB terminal block, spring-loaded connection, 6 poles, 41 A, 6 mm², 7.5 mm pitch
Our service for you
Technical specifications
- Horizontal (90°)
- Product type
Terminal block
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
10 mm²
- Number of pins
6
- Factory colour
Green
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Content
1 pc(s)
- Dim
(L x W) 46.6 mm x 24.3 mm
- Manufacturer part #
DG2206R-7.5-DA-06P-14-100Z(H)
24-8
- Stripping length
11-13 mm
- Connection
Push-in spring-loaded terminal
- Insulation material
PA 66
- Contact material
Copper
- Moisture Sensitiviy Level (MSL)
2
- Nominal voltage
1000 V
- Width
24.3 mm
- Length
46.6 mm
- Pitch
7.5 mm
- RoHS-compliant
Yes
- Temperature range
-40 to +105 °C
- Plastic free packaging
Plastic-free packaging
