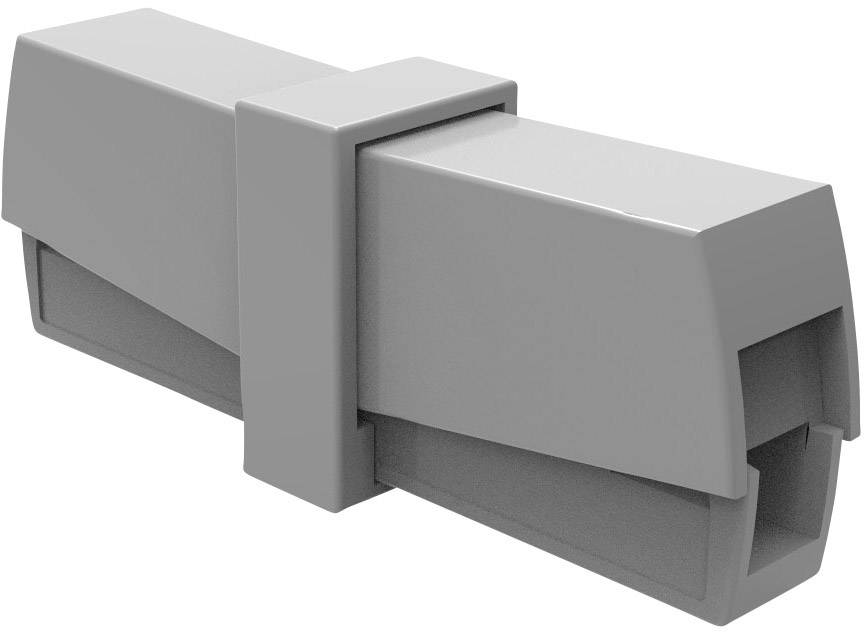

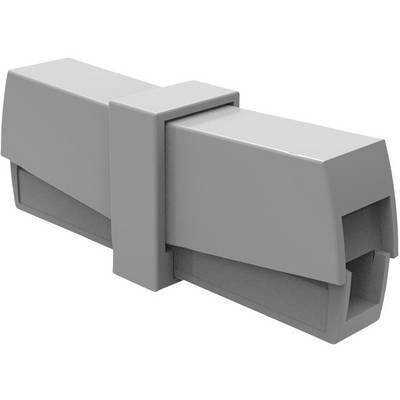

Degson DG224-8.0-01P-11-00A(H) Lamp terminal flexible: 0.20-2.5 mm² fixed: 0.20-2.5 mm² Number of pins: 1 1 pc(s) Grey
EAN:
Part number:
Item no:
Product type
Lamp terminal
Cross section (flexible) (min.)
0.20 mm²
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (min.)
0.20 mm²
Cross section (inflexible) (max.)
2.5 mm²
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.66
15
8% = € 0.05
€ 0.61
25
12% = € 0.08
€ 0.58
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.66 / piece)
€ 0.92
-28 %
€ 3.30
plus VAT.
14-day return policy included
Highlights & Details
Lamp TERMINAL Degson DG224 (Service TERMINAL)
- For connecting flexible with flexible conductors;;convenient replacement for the traditional luster terminal
Our service for you
Technical specifications
- Product type
Lamp terminal
- Cross section (flexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Number of pins
1
- Factory colour
Grey
- Series
DG224
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Content
1 pc(s)
- Dim
(L x W) 42.5 mm x 10.5 mm
- Manufacturer part #
DG224-8.0-01P-11-00A(H)
22 - 12
- Stripping length
9 - 11 mm
- Connection
Pull spring
- Insulation material
PA 66
- Contact material
Copper alloy
- Nominal voltage
450 V
- Width
10.5 mm
- Length
42.5 mm
- RoHS-compliant
Yes
- Temperature range
-40 °C to +105 °C. °C
- Connector clip features
Latch
Description
Connect lights in a flash without screws!
