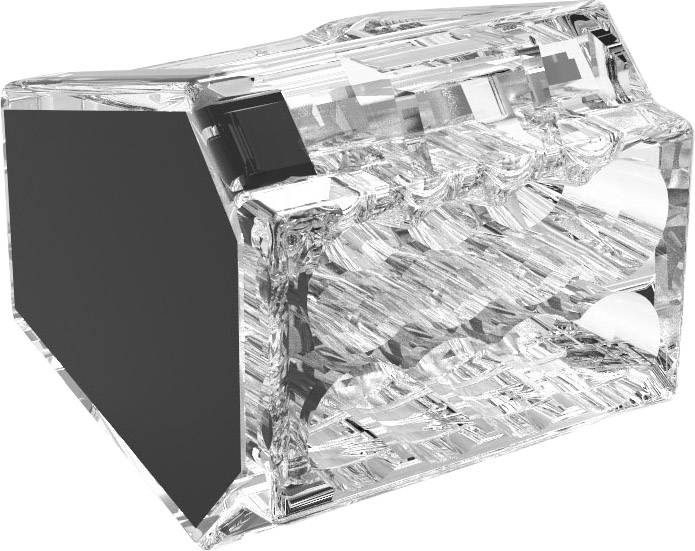

Degson DG228-3.5-08P-1Y-00A(H) Screw terminal flexible: - fixed: 0.50-2.5 mm² Number of pins: 8 1 pc(s) Transparent ####
EAN:
Part number:
Item no:
Packaging type
#####Dose
Product type
Screw terminal
Cross section (inflexible) (min.)
0.50 mm²
Cross section (inflexible) (max.)
2.5 mm²
Number of pins
8
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.32
21
9% = € 0.03
€ 0.29
35
12% = € 0.04
€ 0.28
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.32 / piece)
€ 0.58
-45 %
€ 0.32
plus VAT.
14-day return policy included
Highlights & Details
Connection terminal series DEGSON DG 228 (terminal)
- strip insulation - plug in - done!;;for rigid conductors;;available in 2-, 3-, 4-, 5- and 8-pin;;unfasten the conductor by unscrewing
Our service for you
Technical specifications
- Packaging type
#####Dose
- Product type
Screw terminal
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Number of pins
8
- Factory colour
Transparent
- Series
DG228
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Content
1 pc(s)
- Dim
(L x W) 19.1 mm x 31.5 mm
- Manufacturer part #
DG228-3.5-08P-1Y-00A(H)
22 - 14
- Stripping length
10 - 13 mm
- Connection
Push-in connector
- Insulation material
PC, V2 according to UL94
- Contact material
Copper alloy
- Nominal voltage
450 V
- Width
31.5 mm
- Length
19.1 mm
- Pitch
3,5 mm
- RoHS-compliant
Yes
- Temperature range
-40 °C up to +85 °C
- Connector clip features
Test window
Description
For the economical and fast domestic electrical installation.
