Buy Degson DG243-5.0-02P-11-00AH-1 Spring-loaded terminal 3.31 mm² Number of pins 2 Grey 1 pc(s)

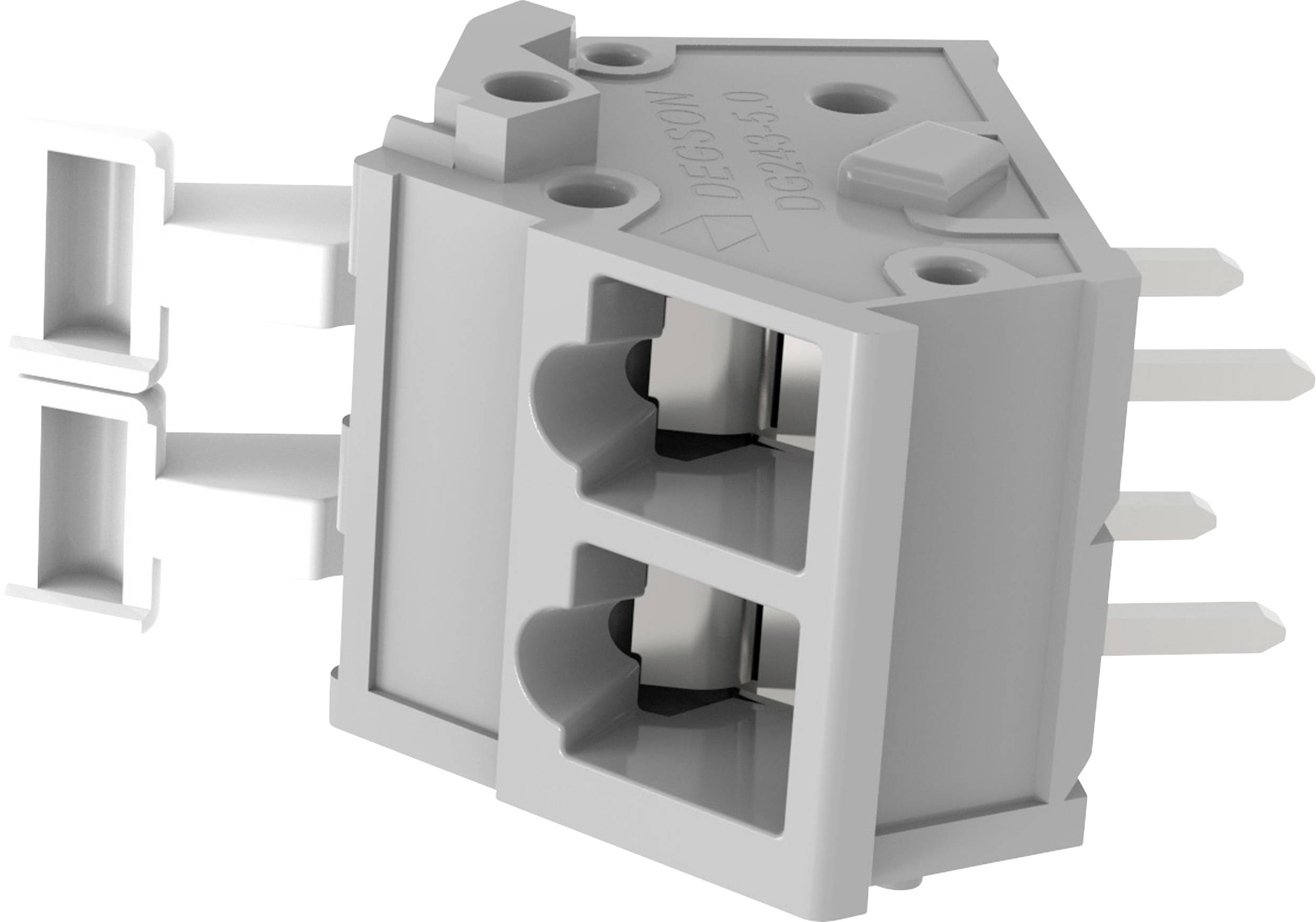

Gray electrical connector block with two front sockets and multiple side pins, shown in close-up on a white background.

Product type

Spring-loaded terminal

5 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

2000 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Packaging units

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 1000

Multiple: 1000

Total (€ 0.37 / piece)

€ 370.00

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Spring-loaded terminal

Our service for you

Technical specifications

Type: DG243-5.0-02P-11-00AH

Product type: Spring-loaded terminal

Features: + actuator

CS: 5 mm

No. of rows: 1

Pins per row: 2

Number of pins: 2

Series: DG243

Min. stripping length: 5 mm

Stripping length (max.): 6 mm

Connection: Spring-loaded terminal
Print

Nominal current: 15 A

Cross section (flexible) (min.): 0.08 mm²

Nominal current - rounded value: 15 A

Cross section (inflexible) (min.): 0.08 mm²

Cross section (flexible) (max.): 3.31 mm²

Cross section (inflexible) (max.): 3.31 mm²

AWG (min.): 28

Connector orientation: At an angle (to the PCB)

AWG max.: 12

Contact material: Phosphorus bronze tin plated

Enclosure material: Polyamide 6.6

Factory colour: Grey

Wire protection: Yes

Actuation direction: At an angle (to the PCB)

Weight: 2.10 g

Manufacturer part #: DG243-5.0-02P-11-00AH-1

Content: 1 pc(s)

Nominal voltage: 300 V

Width: 12.25 mm

Height: 22.74 mm

Length: 15.00 mm

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Type

Pins per row

Connection

Number of pins

Connector orientation

Degson DG243-5.0-02P-11-00AH-1 Spring-loaded terminal 3.31 mm² Number of pins 2 Grey 1 pc(s)

Item no:1327278

This article

15 A

DG243-5.0-02P-11-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

5 mm

Degson DG240-2.54-05P-15-00AH-1 Spring-loaded terminal 0.51 mm² Number of pins 5 Orange 1 pc(s)

Item no:1327272

4 A

DG240-2.54-05P-15-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

2.54 mm

Degson DG240-2.54-06P-15-00AH-1 Spring-loaded terminal 0.51 mm² Number of pins 6 Orange 1 pc(s)

Item no:1327273

4 A

DG240-2.54-06P-15-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

2.54 mm

Degson DG240-2.54-10P-15-00AH-1 Spring-loaded terminal 0.51 mm² Number of pins 10 Orange 1 pc(s)

Item no:1327274

4 A

DG240-2.54-10P-15-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

2.54 mm

Degson DG243-5.0-03P-11-00AH-1 Spring-loaded terminal 3.31 mm² Number of pins 3 Grey 1 pc(s)

Item no:1327322

15 A

DG243-5.0-03P-11-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

5 mm

Degson DG240-2.54-03P-15-00AH-1 Spring-loaded terminal 0.51 mm² Number of pins 3 Orange 1 pc(s)

Item no:1327376

4 A

DG240-2.54-03P-15-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

2.54 mm

Degson DG240-2.54-08P-15-00AH-1 Spring-loaded terminal 0.51 mm² Number of pins 8 Orange 1 pc(s)

Item no:1327377

4 A

DG240-2.54-08P-15-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

2.54 mm

Degson DG240-2.54-04P-15-00AH-1 Spring-loaded terminal 0.51 mm² Number of pins 4 Orange 1 pc(s)

Item no:1327390

4 A

DG240-2.54-04P-15-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

2.54 mm

Degson DG240-2.54-02P-15-00AH-1 Spring-loaded terminal 0.51 mm² Number of pins 2 Orange 1 pc(s)

Item no:1327404

4 A

DG240-2.54-02P-15-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

2.54 mm

Degson DG240-2.54-12P-15-00AH-1 Spring-loaded terminal 0.51 mm² Number of pins 12 Orange 1 pc(s)

Item no:1327410

4 A

DG240-2.54-12P-15-00AH

Spring-loaded terminal

At an angle (to the PCB)

2.54 mm

Documents & Downloads

Datasheet

Datasheet 1327278 Degson DG243-5.0-02P-11-00AH-1 Spring-loaded terminal 3.31 mm² Number of pins 2 Grey 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1327278 Degson DG243-5.0-02P-11-00AH-1 Spring-loaded terminal 3.31 mm² Number of pins 2 Grey 1 pc(s)
