Buy Degson DG245-5.0-08P-11-00AH-1 Spring-loaded terminal 3.31 mm² Number of pins 8 Grey 1 pc(s)

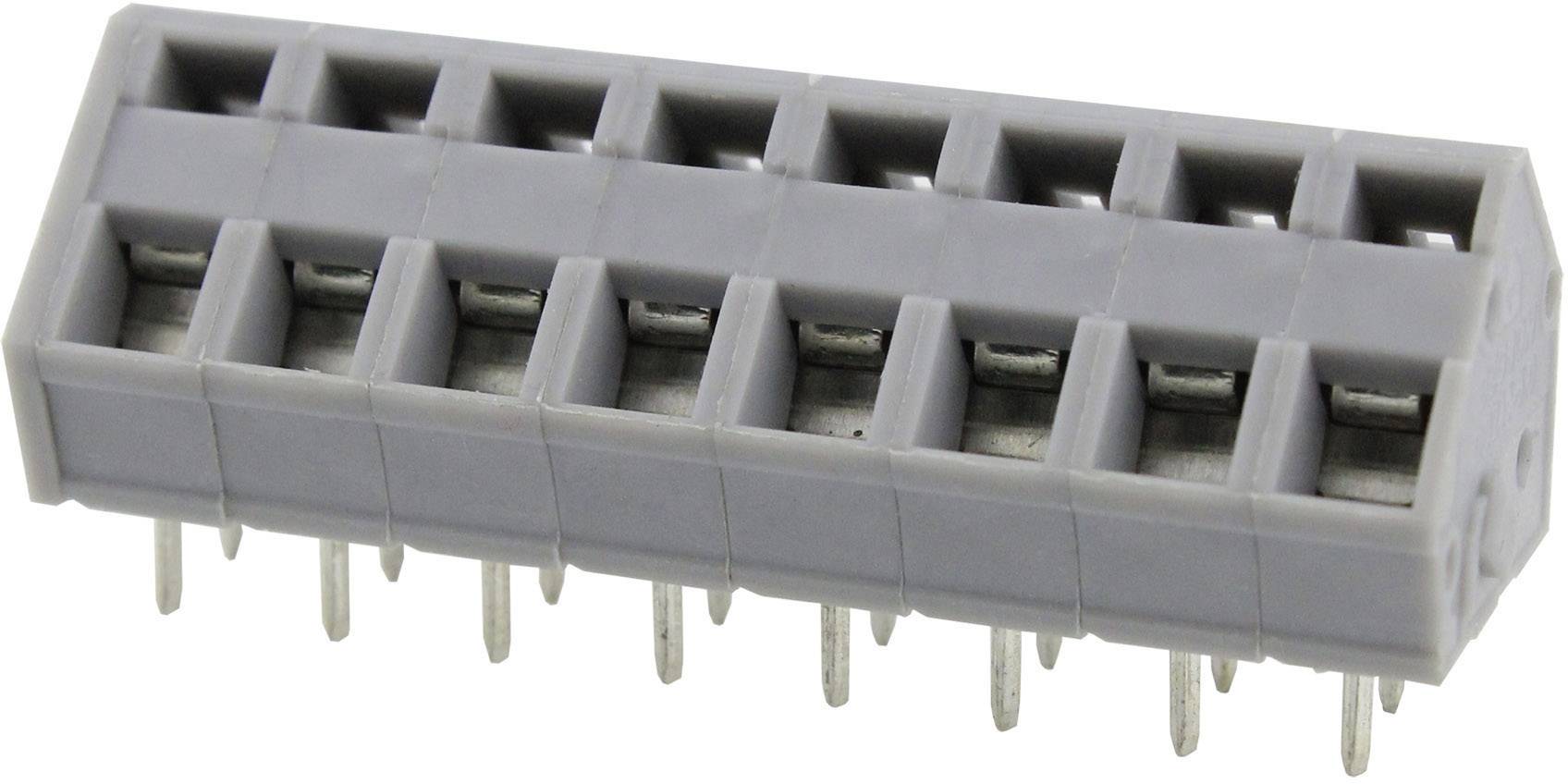

A grey, rectangular electrical connector with multiple vertical and horizontal apertures and metal pins at the bottom.

Image similar

Product type

Spring-loaded terminal

5 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

294 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 1.67 / piece)

€ 1.67

plus VAT.

Report legal concerns

Highlights & Details

Spring-loaded terminal

Content 1 pc(s)

Our service for you

Technical specifications

Type: DG245-5.0-08P-11-00AH

Product type: Spring-loaded terminal

CS: 5 mm

No. of rows: 1

Pins per row: 8

Number of pins: 8

Series: DG245

Min. stripping length: 5 mm

Stripping length (max.): 6 mm

Connection: Spring-loaded terminal
Print

Nominal current: 15 A

Cross section (flexible) (min.): 0.08 mm²

Nominal current - rounded value: 15 A

Cross section (inflexible) (min.): 0.08 mm²

Cross section (flexible) (max.): 3.31 mm²

Cross section (inflexible) (max.): 3.31 mm²

AWG (min.): 28

Connector orientation: At an angle (to the PCB)

AWG max.: 12

Contact material: Phosphorus bronze tin plated

Enclosure material: Polyamide 6.6

Factory colour: Grey

Wire protection: Yes

Actuation direction: At an angle (to the PCB)

Weight: 7.15 g

Manufacturer part #: DG245-5.0-08P-11-00AH-1

Content: 1 pc(s)

Nominal voltage: 300 V

Width: 41.00 mm

Height: 16.80 mm

Length: 14.10 mm
