Degson DG301R-5.0-02P-12 Screw terminal 1.50 mm² Number of pins 2 Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
5 mm
Pins per row
2
Number of pins
2
Connection
Screw terminal
Print
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.19
30
5% = € 0.01
€ 0.18
50
11% = € 0.02
€ 0.17
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.19 / piece)
€ 0.34
-44 %
€ 1.90
plus VAT.
14-day return policy included
Highlights & Details

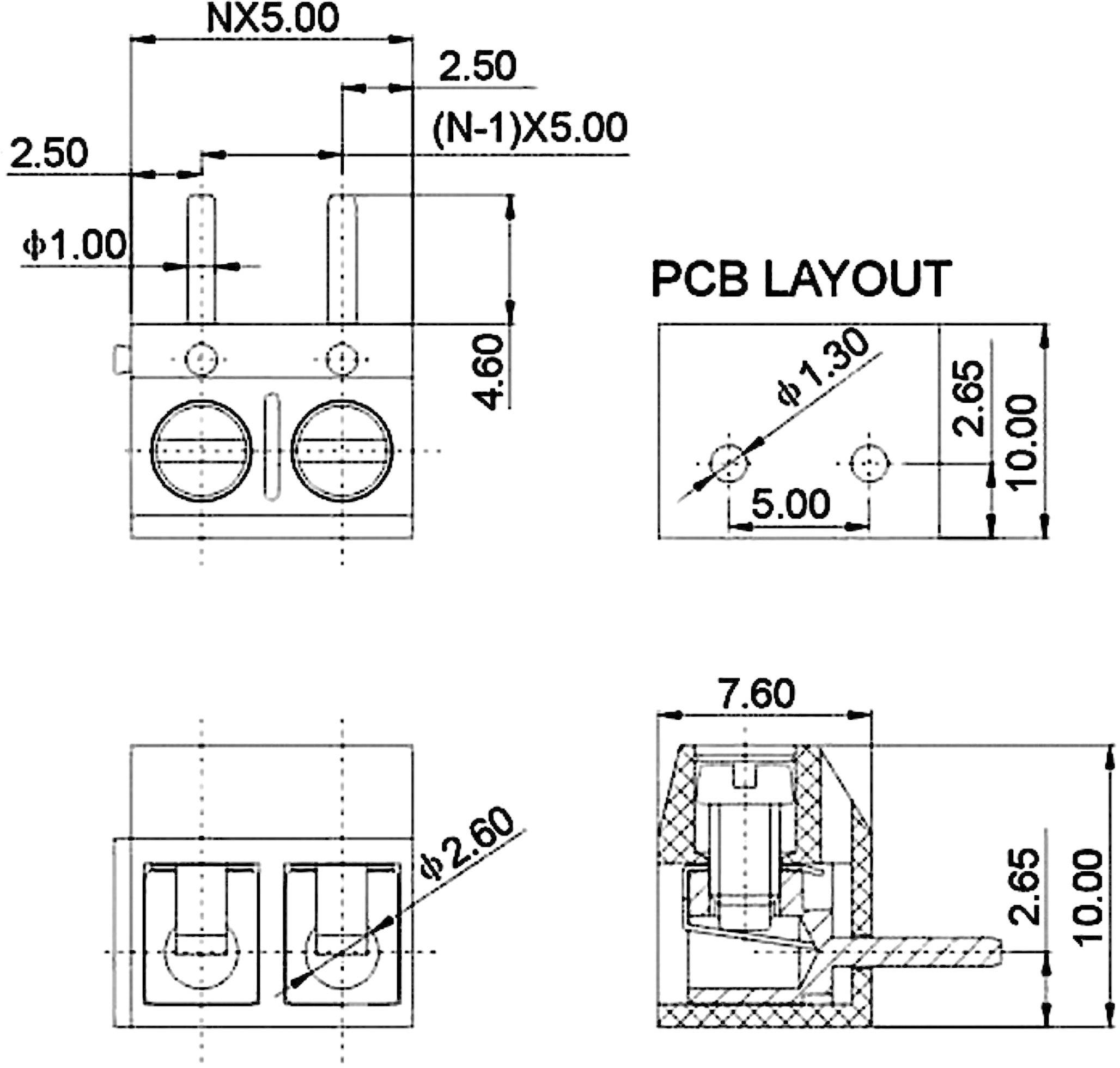

Printed circuit board terminal - series DG301R-5.0
- Content 1 pc(s)
Our service for you
Technical specifications
- Type
DG301R-5.0-02P-12
- Product type
Screw terminal
- Features
+ wire protector
- CS
5 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Series
DG301R
- Min. stripping length
5 mm
- Stripping length (max.)
6 mm
- Connection
Screw terminal
Print
- Nominal current
15 A
- Nominal current - rounded value
15 A
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
22
- Connector orientation
Perpendicular (to the PCB)
- AWG max.
14
- Contact material
Brass tin plated
- Factory colour
Blue
- Wire protection
Yes
- Actuation direction
Parallel (to the PCB)
- Manufacturer part #
DG301R-5.0-02P-12
- Content
1 pc(s)
- Nominal voltage
300 V
- Width
12.20 mm
- Height
10.00 mm
- Length
10.00 mm
- Type
DG301R-5.0-02P-12
- Material (details)
PBT, UL94V-0
- Type
Print- clamping-block, vertical, with wire protection, stackable
- Nominal voltage (details)
300 V
- Nominal current (details)
15 A
- Connector cross section
1.5 mm²
- Cross section
1.5 mm²
- Pins
2
