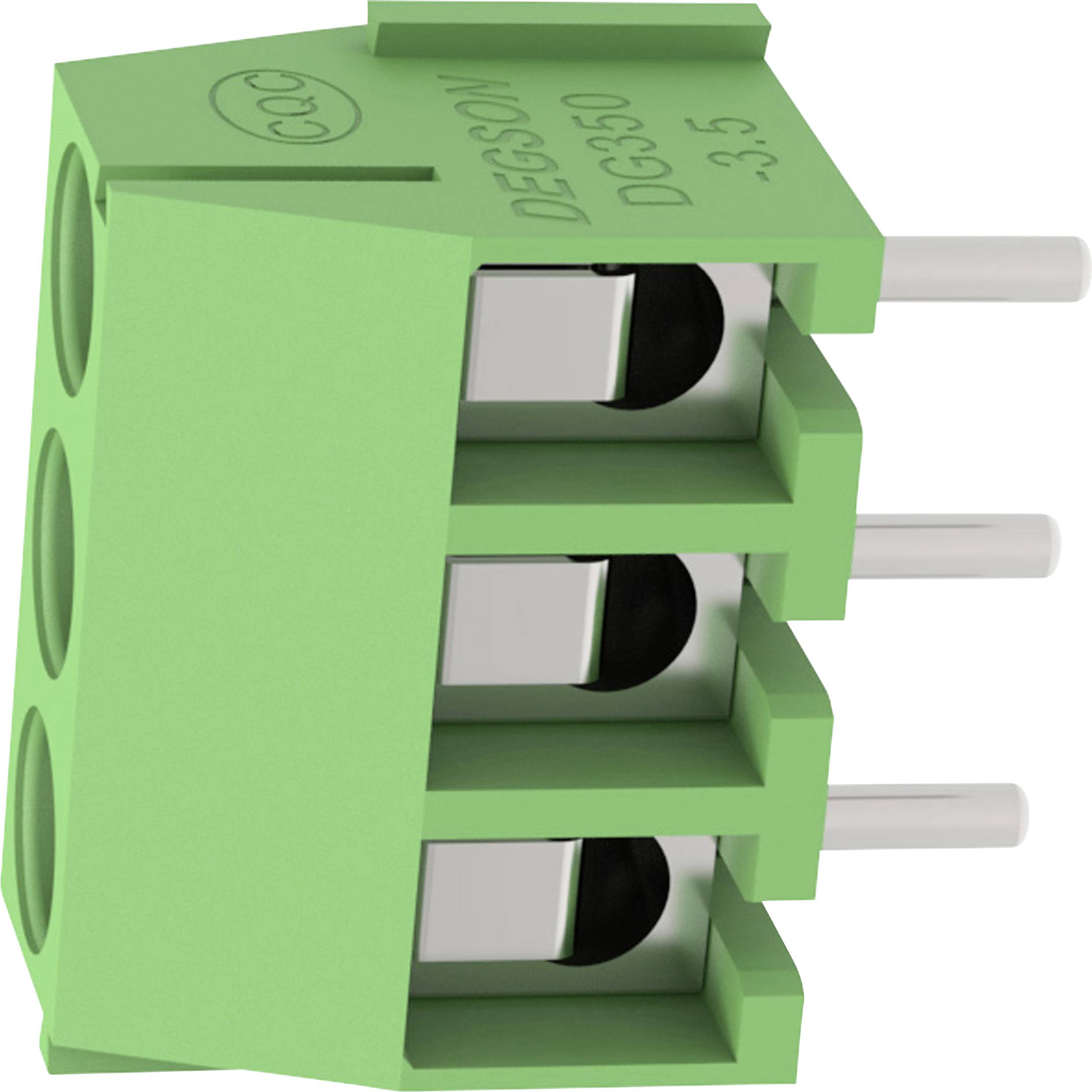

Degson DG350-3.5-03P-14-00AH-1 Screw terminal 2 mm² Number of pins 3 Green 1 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
3.5 mm
Pins per row
3
Number of pins
3
Connection
Screw terminal
Print
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.33
30
12% = € 0.04
€ 0.29
50
12% = € 0.04
€ 0.29
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.33 / piece)
€ 3.30
plus VAT.
14-day return policy included
Highlights & Details
Screw terminal block
- Content 1 pc(s)
Our service for you
Technical specifications
- Type
DG350-3.5-03P-14-00AH
- Product type
Screw terminal
- Features
Stackable
- CS
3.5 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Series
DG350
- Min. stripping length
5 mm
- Stripping length (max.)
6 mm
- Connection
Screw terminal
Print
- Nominal current
7 A
- Cross section (flexible) (min.)
0.32 mm²
- Nominal current - rounded value
7 A
- Cross section (inflexible) (min.)
0.32 mm²
- Cross section (flexible) (max.)
2 mm²
- Cross section (inflexible) (max.)
2 mm²
- AWG (min.)
24
- Connector orientation
Parallel (to the PCB)
- AWG max.
18
- Contact material
Brass tin plated
- Enclosure material
Polyamide 6.6
- Factory colour
Green
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Weight
1.20 g
- Manufacturer part #
DG350-3.5-03P-14-00AH-1
- Content
1 pc(s)
- Nominal voltage
300 V
- Width
10.50 mm
- Height
11.90 mm
- Length
6.80 mm
