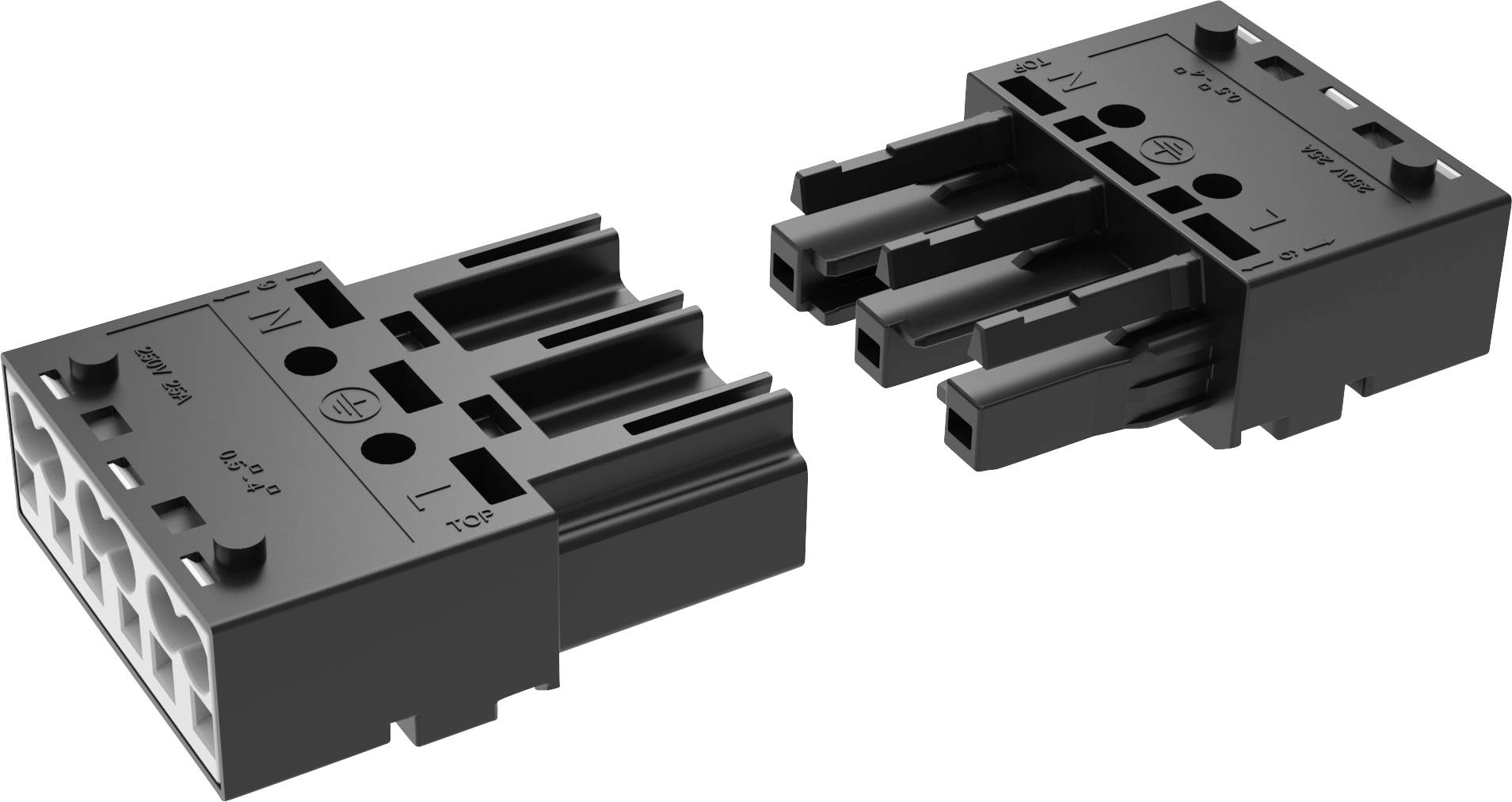

Degson DGBSC-PG03M/4-06P-1Y-03Z(H) Connector set flexible: 0.5-4 mm² fixed: 0.5-4 mm² Number of pins: 3 2 pc(s) Black
EAN:
Part number:
Item no:
Product type
Connector set
Cross section (flexible) (min.)
0.5 mm²
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (min.)
0.5 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 2 pc(s))
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
14-day return policy included
Highlights & Details
Cable connector set, 3-pole, 25 A, plug and coupling, 0.5-4 mm² spring clamp
- Compatible with solid or stranded wires
- Supports cross-section sizes from 0.5 to 4 mm²
Our service for you
Technical specifications
- Without protective housing
- Product type
Connector set
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Number of pins
3
- Factory colour
Black
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Content
2 pc(s)
- Dim
(L x W) 58 mm x 30 mm
- Manufacturer part #
DGBSC-PG03M/4-06P-1Y-03Z(H)
20-12
- Stripping length
9-10 mm
- Connection
Spring-loaded connector
- Insulation material
PA 66
- Contact material
Stainless steel
- Moisture Sensitiviy Level (MSL)
2
- Nominal voltage
250 V
- Width
30 mm
- Length
58 mm
- Pitch
4 mm
- RoHS-compliant
Yes
- Temperature range
-40 to +105 °C
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3630467 Degson DGBSC-PG03M/4-06P-1Y-03Z(H) Connector set flexible: 0.5-4 mm² fixed: 0.5-4 mm² Number of pins: 3 2 pc(s) Black
User & Safety Instructions
User & Safety Instructions 3630467 Degson DGBSC-PG03M/4-06P-1Y-03Z(H) Connector set flexible: 0.5-4 mm² fixed: 0.5-4 mm² Number of pins: 3 2 pc(s) Black
Description
Features
- Push-In spring connection for increased vibration resistance
- Special structure coding and wiring guide identification
- 1 pole, 2 holes for circuit shunting
Scope of delivery
- Plug
- Coupling
