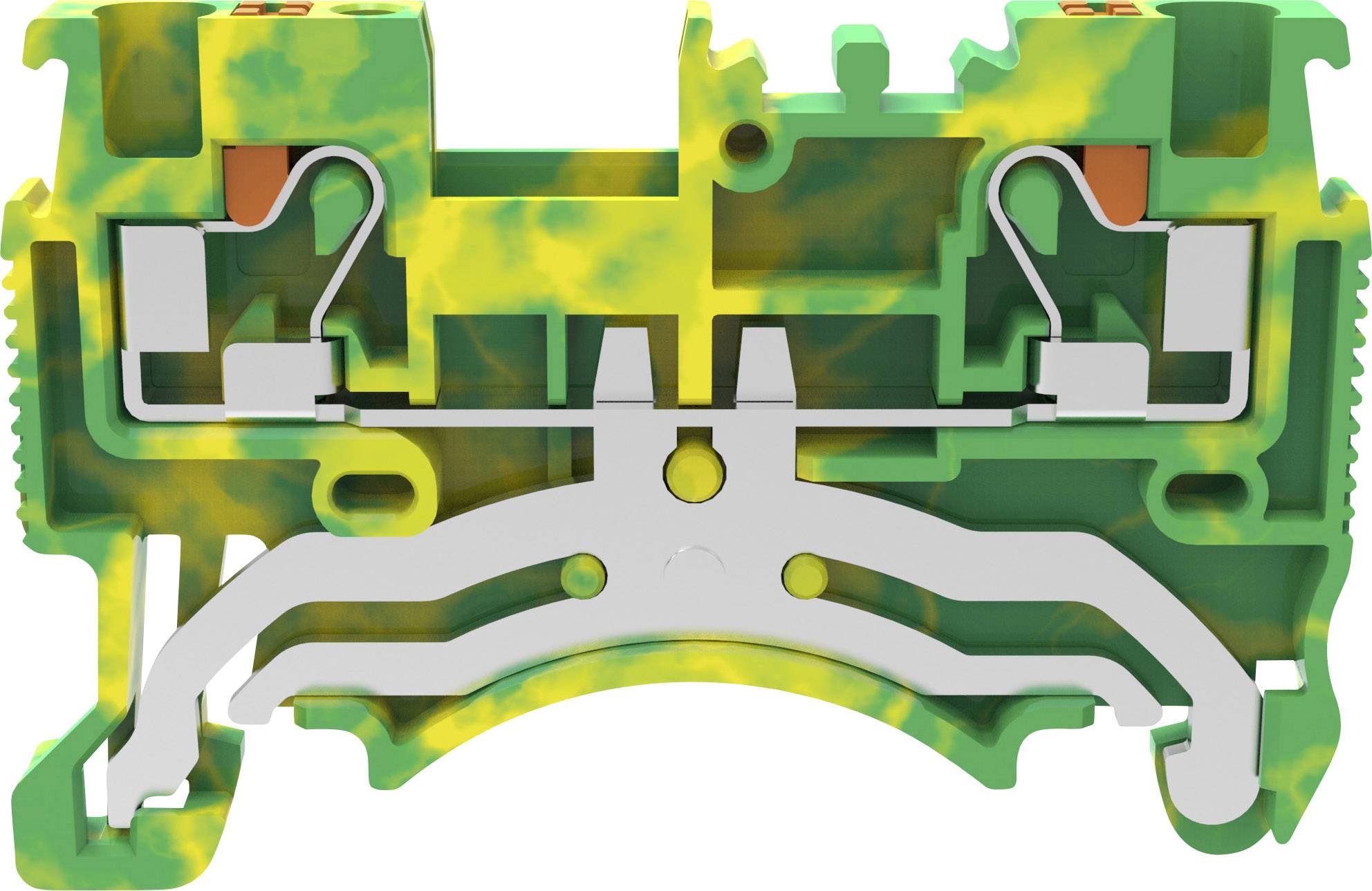

Degson DS1.5-PE-01P-1C-00A(H) PG terminal Push-in connector Green, Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Push-in connector
Cross section (flexible) (max.)
1 mm²
Cross section (inflexible) (max.)
1.5 mm²
Content
1 pc(s)
Number
Total (€ 0.62 / piece)
€ 0.62
plus VAT.
14-day return policy included
Highlights & Details
DEGSON DSA5-PE protective conductor - terminal block green-yellow 0.2 mm² - 1.5 mm²
Our service for you
Technical specifications
- Product type
PG terminal
- Features
+ push-in spring bracket
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
1 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
26
- AWG max.
14
- Number of pins
1
- Factory colour
Green
Yellow
- Min. stripping length
8 mm
- Stripping length (max.)
8 mm
- Manufacturer part #
DS1.5-PE-01P-1C-00A(H)
- Content
1 pc(s)
- Type
DS1.5-PE-01P-1C-00A(H)
- Dim
(L x W x H) 45 x 3.5 x 32 mm
- Width
3.5 mm
- Height
32 mm
- Length
45 mm
- RoHS-compliant
Yes
- Compatible with (details)
DIN rail NS 35
7.5
NS 35
15 and NS 32
- Rated surge voltage
6 kV
- Weight
1 g
