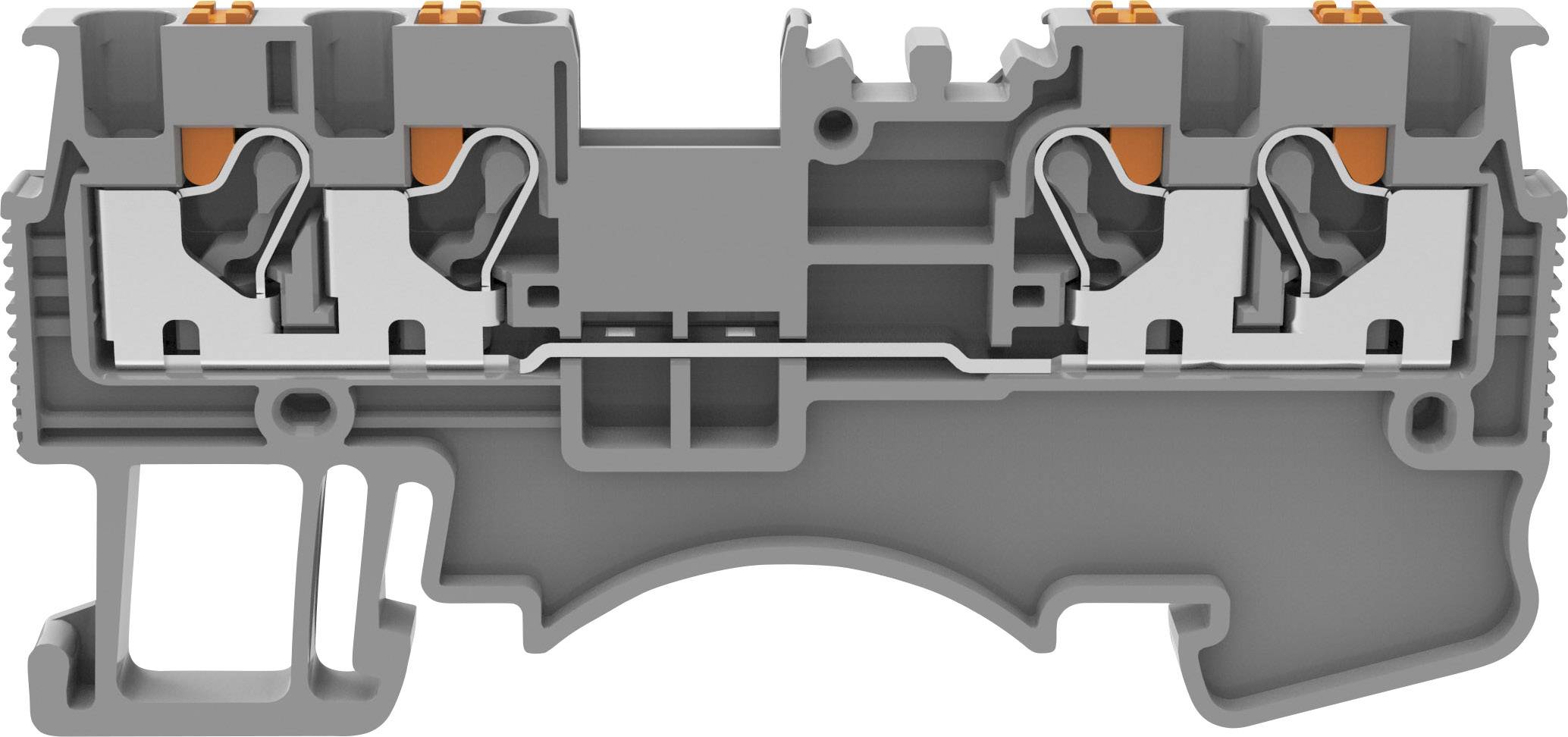

Degson DS1.5-QU-01P-11-00A(H) Continuity Push-in connector Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Push-in connector
Cross section (flexible) (max.)
1 mm²
Cross section (inflexible) (max.)
1.5 mm²
Nominal current - rounded value
NaN A
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.67
10
8% = € 0.13
€ 1.54
25
11% = € 0.18
€ 1.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.67 / piece)
€ 1.67
plus VAT.
14-day return policy included
Highlights & Details
DEGSON D1.5-QU terminal block QUATTRO Gray 0.2 mm² - 1.5 mm²
Our service for you
Technical specifications
- Product type
Continuity
- Features
+ push-in spring bracket
2 lugs per contact
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
1 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
26
- AWG max.
14
- Number of pins
1
- Factory colour
Grey
- Nominal current
17.5 A
15 A
- Nominal current - rounded value
NaN A
- Nominal voltage
500 V
300 V
- Min. stripping length
8 mm
- Stripping length (max.)
8 mm
- Manufacturer part #
DS1.5-QU-01P-11-00A(H)
- Content
1 pc(s)
- Type
DS1.5-QU-01P-11-00A(H)
- Dim
(L x W x H) 63.2 x 3.5 x 32 mm
- Width
3.5 mm
- Height
32 mm
- Length
63.2 mm
- RoHS-compliant
Yes
- Compatible with (details)
DIN rail NS 35
7.5
NS 35
15 and NS 32
- Rated surge voltage
6 kV
- Weight
1 g
