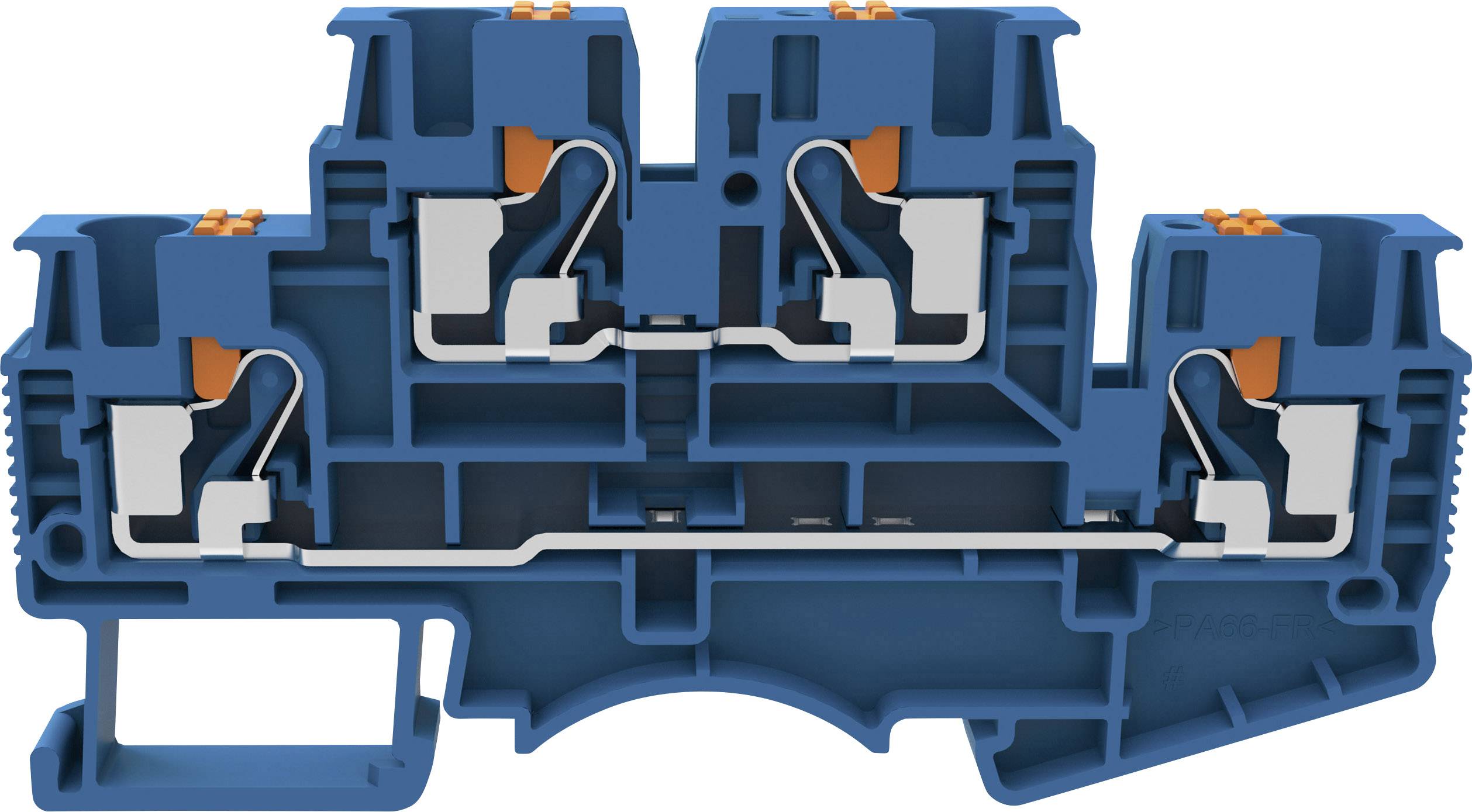

Degson DSKK4-01P-12-00-A(H) Dual port continuity Push-in connector Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
Dual port continuity
Connection
Push-in connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
NaN A
Number
Total (€ 1.50 / piece)
€ 4.11
-64 %
€ 1.50
plus VAT.
14-day return policy included
Highlights & Details
DEGSON DSKK4 DOUBLE STOCK TERM. Blue 0.2 mm² - 6 mm²
Our service for you
Technical specifications
- Product type
Dual port continuity
- Features
+ push-in spring bracket
2-tier
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
10
- Number of pins
1
- Factory colour
Blue
- Nominal current
32 A
30 A
- Nominal current - rounded value
NaN A
- Nominal voltage
800 V
600 V
- Min. stripping length
12 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
DSKK4-01P-12-00-A(H)
- Content
1 pc(s)
- Type
DSKK4-01P-12-00-A(H)
- Dim
(L x W x H) 77 x 6.2 x 36.5 mm
- Width
6.2 mm
- Height
36.5 mm
- Length
77 mm
- RoHS-compliant
Yes
- Compatible with (details)
DIN rail NS 35
7.5
NS 35
15 and NS 32
- Rated surge voltage
6 kV
- Weight
1 g
