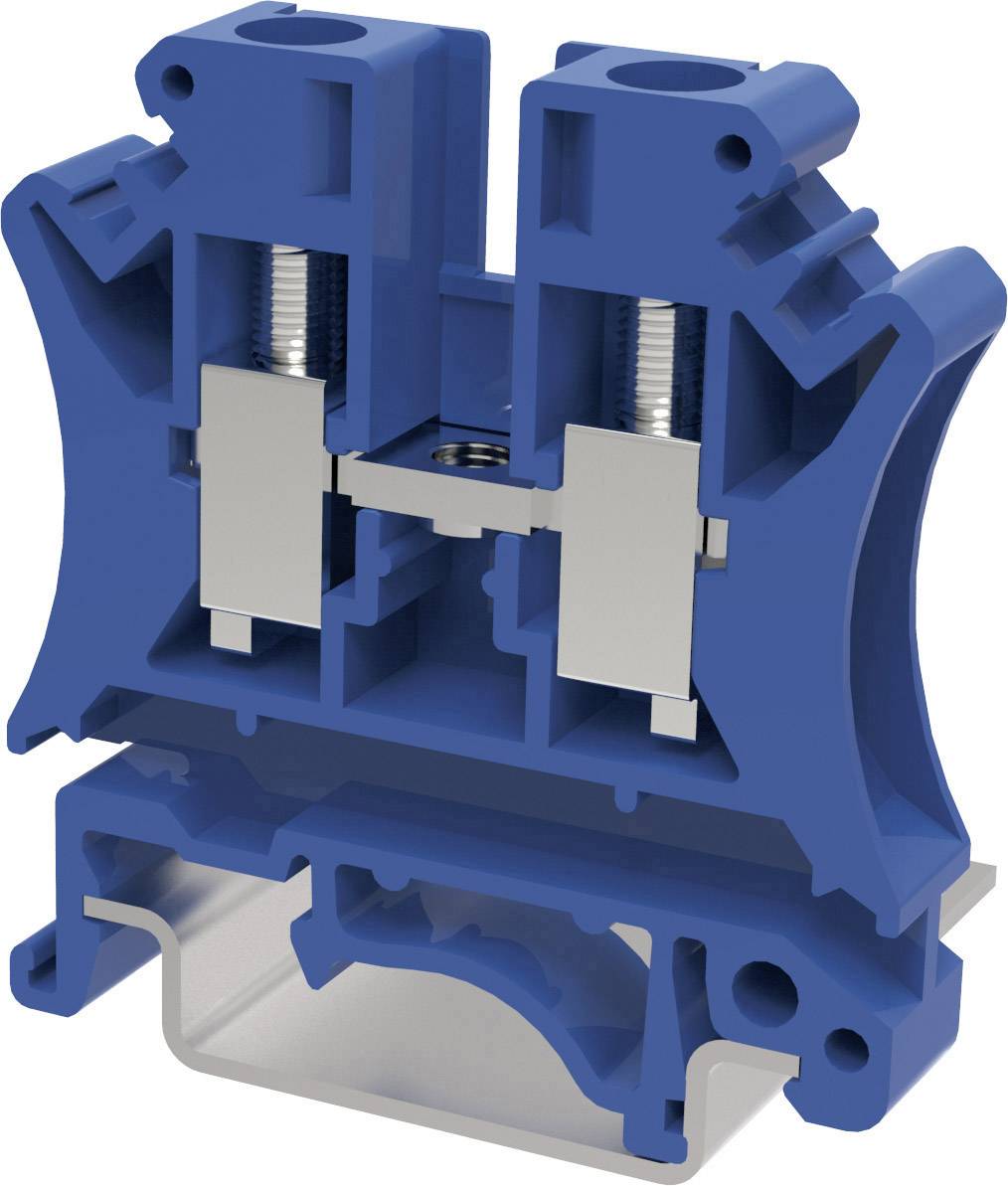

Degson PC16-01P-12-00AH-1 Continuity 12.2 mm Screws Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
75 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
14-day return policy included
Highlights & Details
Series terminal
Our service for you
Technical specifications
- Product type
Continuity
- Connection
Screws
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
12
- AWG max.
4
- Clamp width
12.2 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Factory colour
Blue
- Nominal current
75 A
- Nominal current - rounded value
75 A
- Nominal voltage
800
- Min. stripping length
11 mm
- Stripping length (max.)
11 mm
- Manufacturer part #
PC16-01P-12-00AH-1
- Content
1 pc(s)
- Type
PC16-01P-12-00AH
- Dim
(L x W x H) 42.50 x 12.20 x 52.80 mm
- Width
12.20 mm
- Height
52.80 mm
- Length
42.50 mm
- RoHS-compliant
Yes
- Compatible with (details)
DIN rail NS 35/7.5
NS 35/15 and NS 32
- Rated surge voltage
8 kV
- Contamination level
3
- Weight
21.40 g
