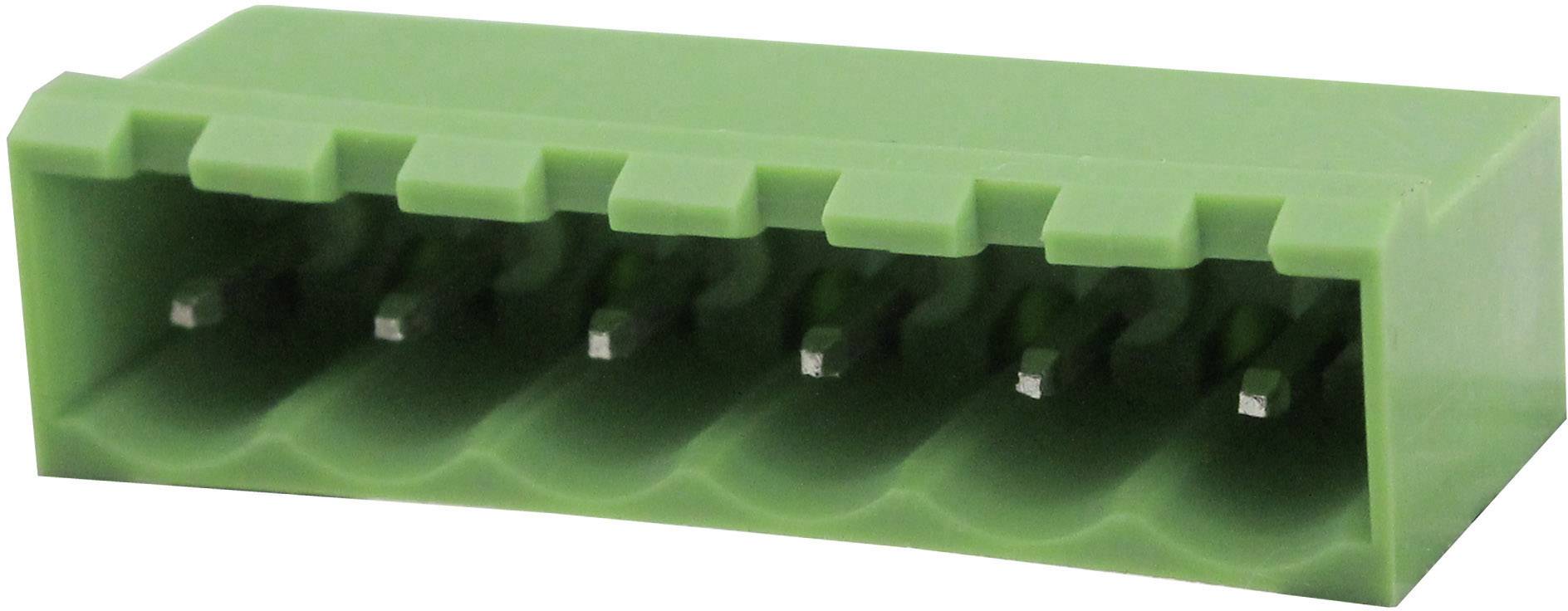

Image similar
Image similar
Degson Socket housing PCB Total number of pins 4 Contact spacing: 5.0 mm 2EDGRC-5.0-04P-14-00AH 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
780 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
7
-
€ 0.32
21
9% = € 0.03
€ 0.29
35
12% = € 0.04
€ 0.28
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 7
Total (€ 0.32 / piece)
€
Highlights & Details
Basic case
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 4
Technical specifications
- Connector type
Socket, horizontal mount
- Connector system
board-to-board
- Features
closed
- CS
5.0 mm
- Pins per row
4
- Total number of pins
4
- Nominal current
15 A
- Nominal current - rounded value
15 A
- Content
1 pc(s)
- Dim
(L x W x H) 12.10 x 21.40 x 12.20 mm
- Factory colour
Green
- Height
12.20 mm
- Length
12.10 mm
- Width
21.40 mm
- Compatible with (details)
2EDGK-5.0-04P-14-00AH
2EDGKD-5.0-04P-14-00AH
- Connection
Print
- Connector contact surface
Tin plated
- Board contact surface
Tin plated
- Connector orientation
Parallel (to the PCB)
- Manufacturer part #
2EDGRC-5.0-04P-14-00AH
- Type
2EDGRC-5.0-04P-14-00AH
- Nominal voltage
300 V
- No. of rows
1
- Contact material
Brass
- Case material
PA 66 UL94V-0
- RoHS-compliant
Yes
- Product type
Socket housing PCB
