Buy Degson Socket housing PCB Total number of pins 8 Contact spacing: 5.08 mm 2EDGRC-5.08-08P-14-00AH 100 pc(s)

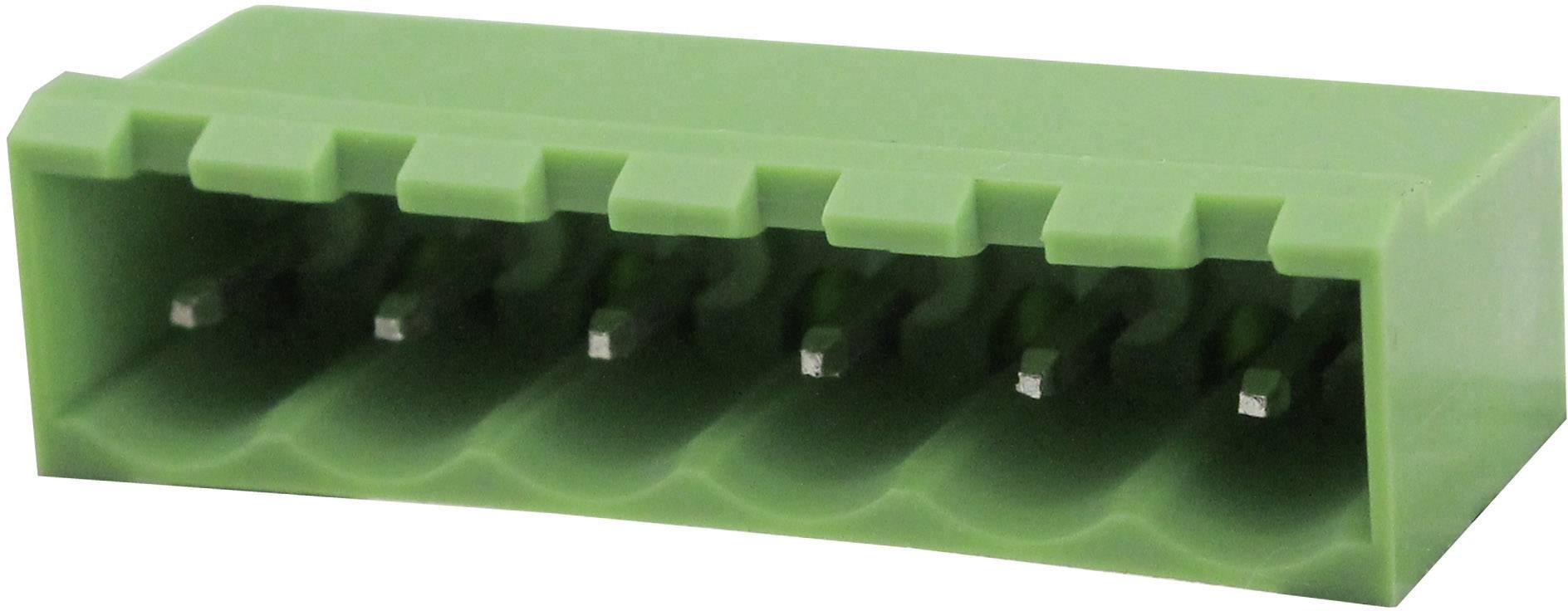

Green plug connector with six connection points in a plastic casing, used for electronic connections.

Image similar

Product type

Socket housing PCB

Connector type

Socket, vertical vertical

No. of rows

5.08 mm

Total number of pins

Show alternatives

Sales and shipping:

Packaging units

Number (Package size 100 pc(s))

Set(s)

Total (€ 0.57 / piece)

€

Report legal concerns

Highlights & Details

Basic case

Content: 100 pc(s)
No. of rows: 1
Total number of pins: 8

Technical specifications

Product type: Socket housing PCB

Connector type: Socket, vertical vertical

No. of rows: 1

Connector system: board-to-board

Features: closed

CS: 5.08 mm

Pins per row: 8

Total number of pins: 8

Width: 42.04 mm

Nominal current: 15 A

Nominal current - rounded value: 15 A

Content: 100 pc(s)

Dim: (L x W x H) 12.10 x 42.04 x 12.20 mm

Connection: Print

Case material: PA 66 UL94V-0

Manufacturer part #: 2EDGRC-5.08-08P-14-00AH

Factory colour: Green

Industrial packaging: Yes

Contact material: Brass

Board contact surface: Tin plated

Connector contact surface: Tin plated

Nominal voltage: 300 V

Height: 12.20 mm

Length: 12.10 mm

RoHS-compliant: Yes

Connector orientation: Parallel (to the PCB)

Type: 2EDGRC-5.08-08P-14-00AH

Compatible with (details): 2EDGK-5.08-08P-14-00AH
2EDGKD-5.08-08P-14-00AH

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Connector type

Connector system

Width

Series

Total number of pins

Pin shape

Degson Socket housing PCB 15EDGRC Total number of pins 2 Contact spacing: 2.50 mm 15EDGRC-2.5-02P-14-00AH-500 500 pc(s)

Item no:1620280

1.5 A

Power strip, right angle

wire-to-board

8.80 mm

15EDGRC

2.50 mm

Square

Degson Socket housing PCB 15EDGRC Total number of pins 4 Contact spacing: 2.50 mm 15EDGRC-2.5-04P-14-00AH-300 300 pc(s)

Item no:1620281

1.5 A

Power strip, right angle

wire-to-board

13.20 mm

15EDGRC

2.50 mm

Square

Degson Socket housing PCB 15EDGRC Total number of pins 6 Contact spacing: 2.50 mm 15EDGRC-2.5-06P-14-00AH-100 100 pc(s)

Item no:1620282

1.5 A

Power strip, right angle

wire-to-board

17.60 mm

15EDGRC

2.50 mm

Square

Degson Socket housing PCB 15EDGRC Total number of pins 12 Contact spacing: 2.50 mm 15EDGRC-2.5-12P-14-00AH-100 100 pc(s)

Item no:1620283

1.5 A

Power strip, right angle

wire-to-board

30.80 mm

15EDGRC

2.50 mm

Square

Degson Socket housing PCB 15EDGRC Total number of pins 11 Contact spacing: 3.50 mm 15EDGRC-3.5-11P-14-00AH 200 pc(s)

Item no:1620309

8 A

Power strip, right angle

wire-to-board

27.95 mm

15EDGRC

3.50 mm

Square

Degson Socket housing PCB 15EDGRC Total number of pins 3 Contact spacing: 2.50 mm 15EDGRC-2.5-03P-14-00AH-400 400 pc(s)

Item no:1620345

1.5 A

Power strip, right angle

wire-to-board

11 mm

15EDGRC

2.50 mm

Square

Degson Socket housing PCB 15EDGRC Total number of pins 5 Contact spacing: 2.50 mm 15EDGRC-2.5-05P-14-00AH-200 200 pc(s)

Item no:1620346

1.5 A

Power strip, right angle

wire-to-board

15.40 mm

15EDGRC

2.50 mm

Square

Degson Socket housing PCB 15EDGRC Total number of pins 10 Contact spacing: 2.50 mm 15EDGRC-2.5-10P-14-00AH-100 100 pc(s)

Item no:1620349

1.5 A

Power strip, right angle

wire-to-board

26.40 mm

15EDGRC

2.50 mm

Square

Degson Socket housing PCB 15EDGRC Total number of pins 11 Contact spacing: 2.50 mm 15EDGRC-2.5-11P-14-00AH 100 pc(s)

Item no:1620350

1.5 A

Power strip, right angle

wire-to-board

28.60 mm

15EDGRC

2.50 mm

Square

Degson Socket housing PCB 15EDGRC Total number of pins 11 Contact spacing: 3.81 mm 15EDGRC-3.81-11P-14-00AH 200 pc(s)

Item no:1620457

8 A

Power strip, right angle

wire-to-board

29.90 mm

15EDGRC

3.81 mm

Square
