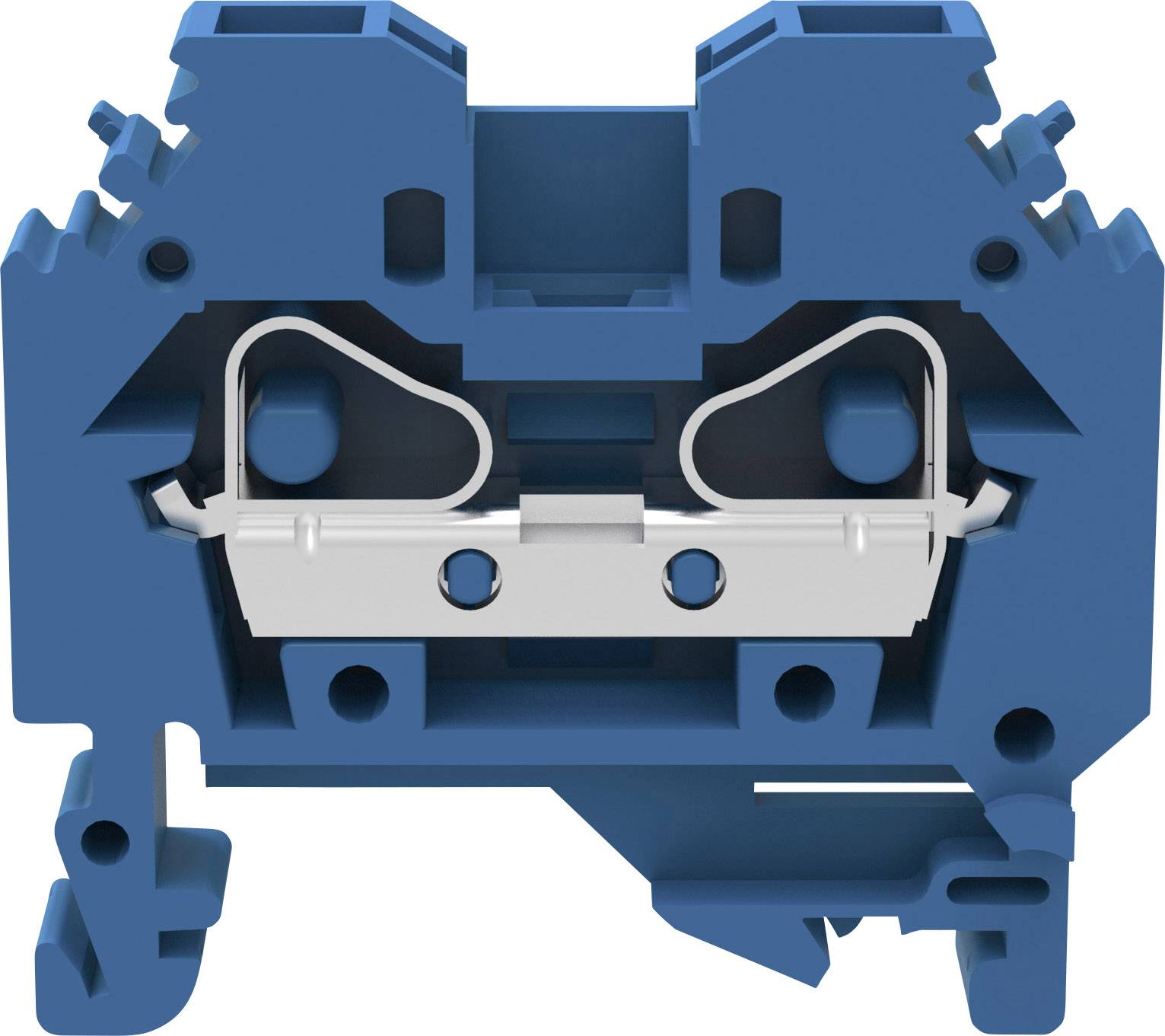

Degson WS6-SD-01P-12-00A(H) Continuity Spring-loaded terminal Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Spring-loaded terminal
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
NaN A
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.67
10
8% = € 0.13
€ 1.54
25
11% = € 0.18
€ 1.49
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 1.67 / piece)
€ 1.92
-13 %
€ 1.67
plus VAT.
Highlights & Details
DEGSON WS6-SD series terminal blue 0.2 mm² - 6 mm²
Our service for you
Technical specifications
- Product type
Continuity
- Features
Cable outlet (lateral)
- Connection
Spring-loaded terminal
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
10
- Number of pins
1
- Factory colour
Blue
- Nominal current
41 A
30 A
- Nominal current - rounded value
NaN A
- Nominal voltage
800 V
600 V
- Min. stripping length
12 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
WS6-SD-01P-12-00A(H)
- Content
1 pc(s)
- Type
WS6-SD-01P-12-00A(H)
- Dim
(L x W x H) 46.5 x 8 x 44.5 mm
- Width
8 mm
- Height
44.5 mm
- Length
46.5 mm
- RoHS-compliant
Yes
- Compatible with (details)
DIN rail NS 35
7.5
NS 35
15 and NS 32
- Rated surge voltage
8 kV
- Weight
1 g
