DEHN 106225 DIDH 16 530 RS40.60 V2A HVI rod spacer 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Clamping range tube: 40-60 mm
- Cable holder recording rd: 16mm
- Product type
HVI rod spacer
- Operating temperature
-50°C to +100 °C
- Manufacturer part #
106225
- Dim
(L x W x H) 530 x 122 x 40 mm
- Length
530 mm
- Width
122 mm
- Height
40 mm
- Depth
40.0000 mm
- Content
1 pc(s)
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1968105 DEHN 106225 DIDH 16 530 RS40.60 V2A HVI rod spacer 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1968105 DEHN 106225 DIDH 16 530 RS40.60 V2A HVI rod spacer 1 pc(s)
Description

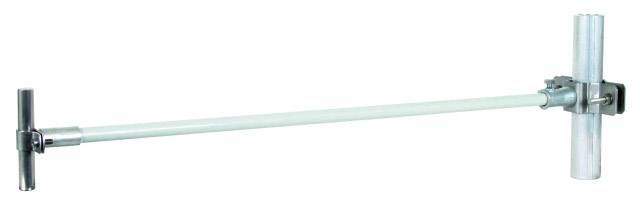

Distance holder for fishing rods for compliance with the separation distance according to DIN EN 62305-3 (VDE 0185-305-3). Distance rod made of glass-fiber reinforced plastic (GRP) D 16 mm, UV-stabilised, color light gray, material factor km = 0.7. Design with rod holder (fixed cable management) and p-clamp (clamping range D 40-60mm).
