Buy DEHN 306121 PV 6.22 FRM10X40 STBLANK Parallel connector

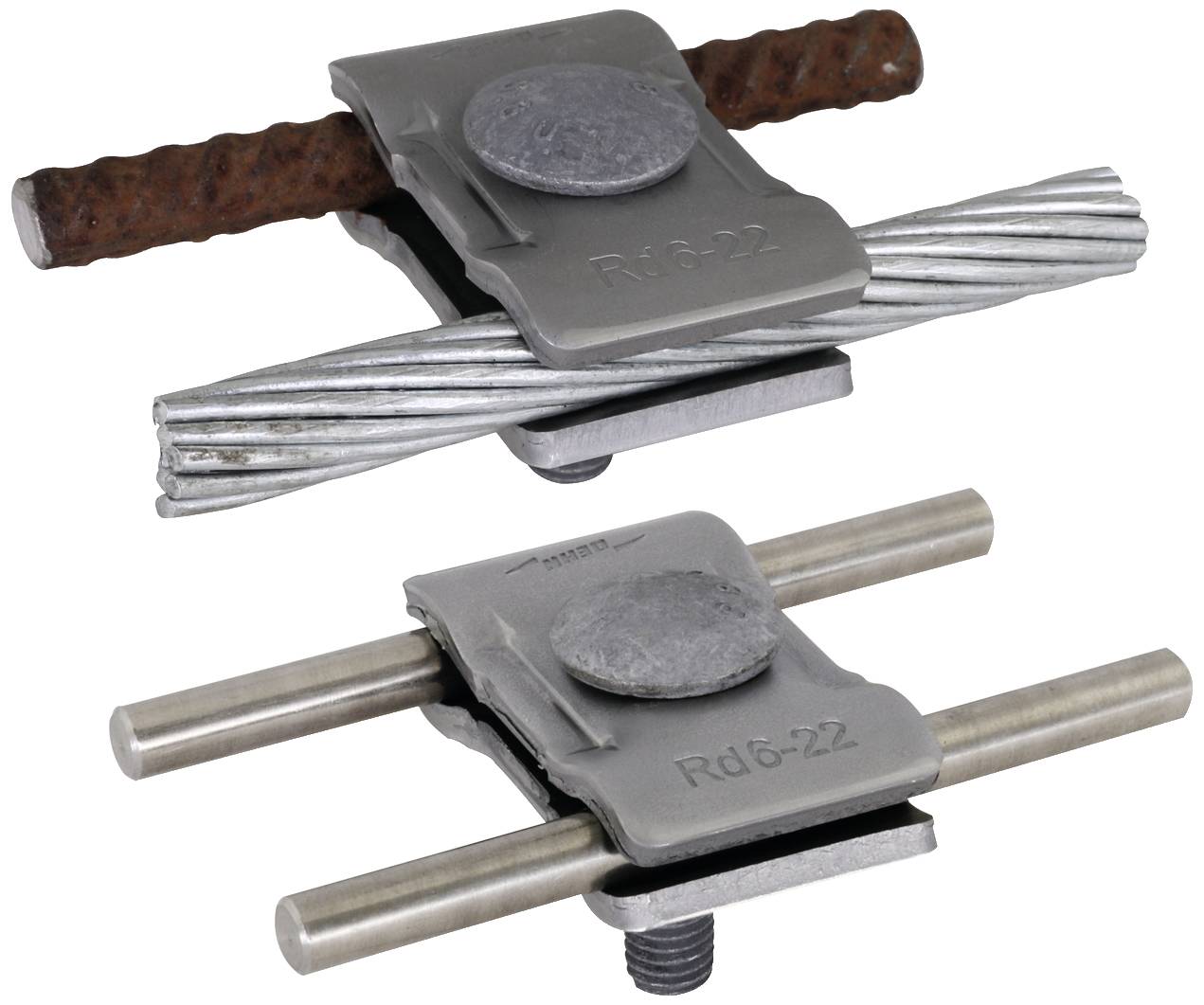

'Upper image shows a clamp connecting a corroded and a twisted metal piece. Lower image shows a similar clamp with two smooth metal bars.'

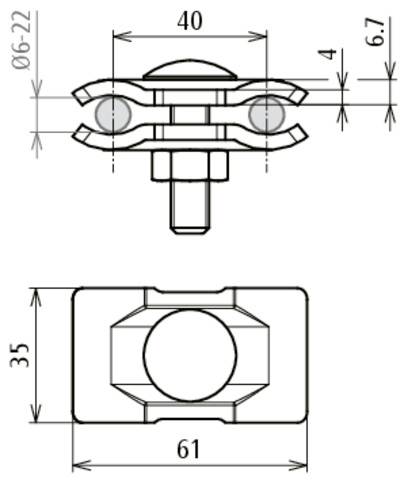

Technical drawing of a screw connection with dimensions: width 40mm, height 35mm, length 61mm and diameter 6-22mm.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Parallel connector

Manufacturer part #: 306121

Content: 1 pc(s)

: Untreated

: Parallel connector

: Flat round screw

: Steel

: 50 kA

: 6.0-22.0 mm

: 6.0-22.0 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750468 DEHN 306121 PV 6.22 FRM10X40 STBLANK Parallel connector

User & Safety Instructions

User & Safety Instructions 2750468 DEHN 306121 PV 6.22 FRM10X40 STBLANK Parallel connector

Information

Information 2750468 DEHN 306121 PV 6.22 FRM10X40 STBLANK Parallel connector

Description

Parallel connector in accordance with DIN EN 62561-1, for connecting two conductors in parallel arrangement. Designed for different diameters with one screw.

This text is machine translated.
