Buy DEHN 306122 PV 6.22 FRM10X40 STTZN Fittings

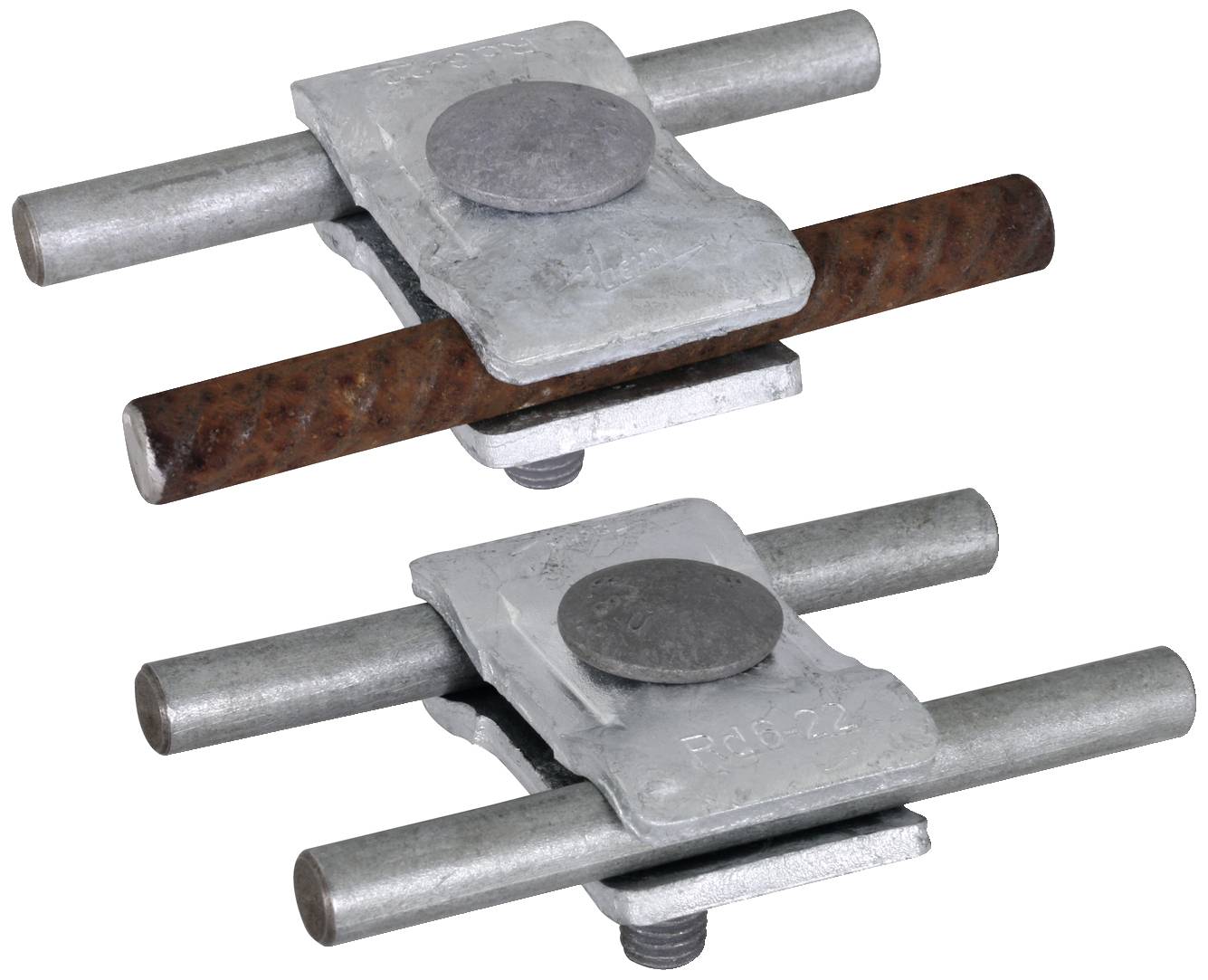

'Two parallel metal clamps with cylindrical rods and a screw, one clamp holding a rusty rod, the other a grey rod.'

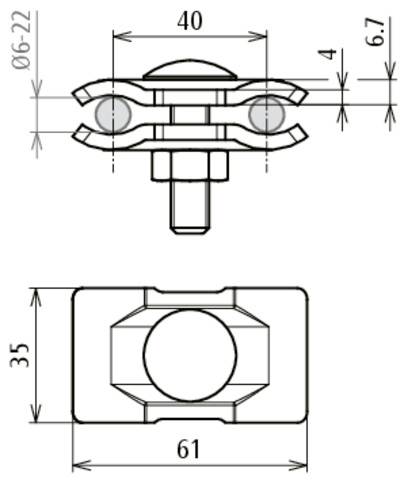

Technical drawing of a component with dimensions: Ø6-22, width 40 mm, height 4 mm, overall width 61 mm, height 35 mm.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Fittings

Manufacturer part #: 306122

Content: 1 pc(s)

: Parallel connector

: Flat round screw

: Steel

: 50 kA

: 6.0-22.0 mm

: 6.0-22.0 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750469 DEHN 306122 PV 6.22 FRM10X40 STTZN Fittings

User & Safety Instructions

User & Safety Instructions 2750469 DEHN 306122 PV 6.22 FRM10X40 STTZN Fittings

Information

Information 2750469 DEHN 306122 PV 6.22 FRM10X40 STTZN Fittings

Description

Parallel connector in accordance with DIN EN 62561-1, for connecting two conductors in parallel arrangement. Designed for different diameters with one screw.

This text is machine translated.
