Buy DEHN 308040 MAMVK 8.16 15.25 STBL Maxi MV connector

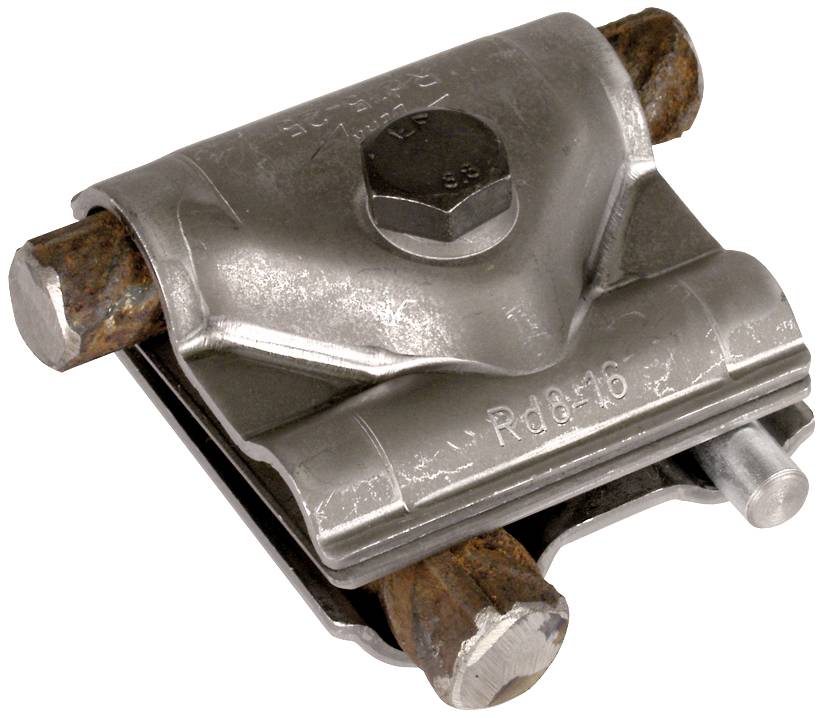

A metallic pipe clamp fastens two rusty pipes, providing stability and supporting structures in construction and engineering applications.

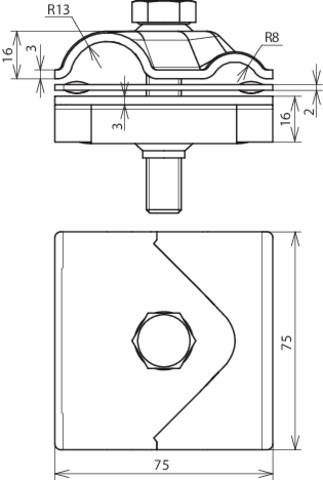

Technical drawing shows a component with dimensions 75 x 75 x 16 mm. Contains labels for radii and cuts. Side and top views.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Maxi MV connector

Manufacturer part #: 308040

Content: 1 pc(s)

: Untreated

: T-/cross-/parallel connector

: Hexagon screw

: Steel

: 100 kA

: 8.0-16.0 mm

: 15.0-25.0 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750339 DEHN 308040 MAMVK 8.16 15.25 STBL Maxi MV connector

User & Safety Instructions

User & Safety Instructions 2750339 DEHN 308040 MAMVK 8.16 15.25 STBL Maxi MV connector

Information

Information 2750339 DEHN 308040 MAMVK 8.16 15.25 STBL Maxi MV connector

Description

Maxi multipurpose connection terminal in accordance with DIN EN 62561-1, for universal use as cross, T and parallel terminals for connecting iron reinforcements. Three-part design with hexagonal screw and thread in the lower section.

This text is machine translated.
