Buy DEHN 308045 BVK 16.48 6.10 FL40 BSB STBL Mounting bracket

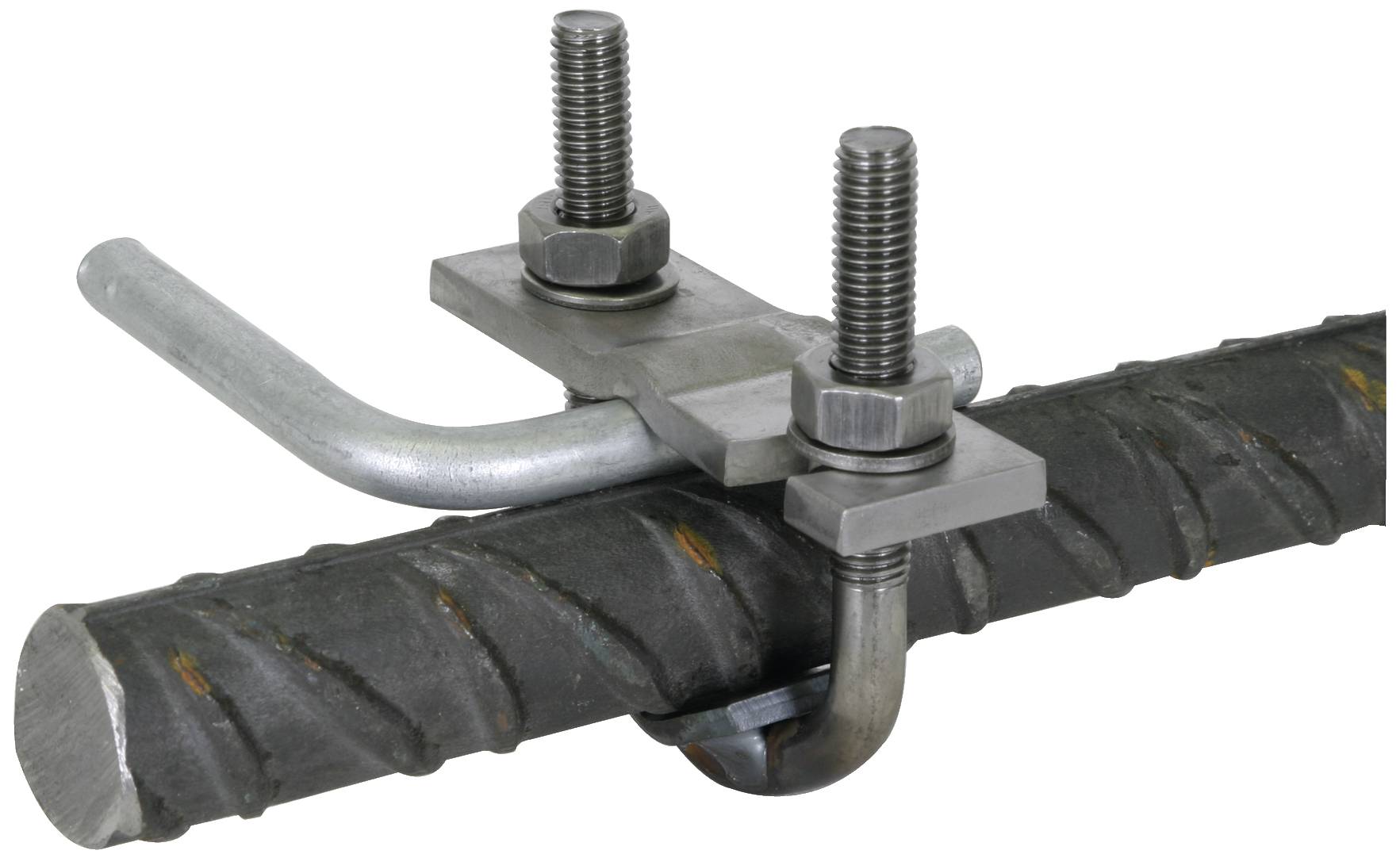

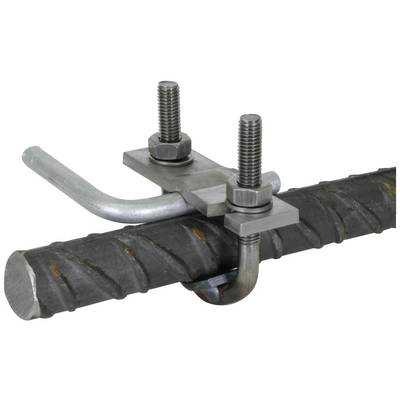

Fastening element secures two concrete reinforcement bars with screw connections. Main component is made of metal, with a curved shape.

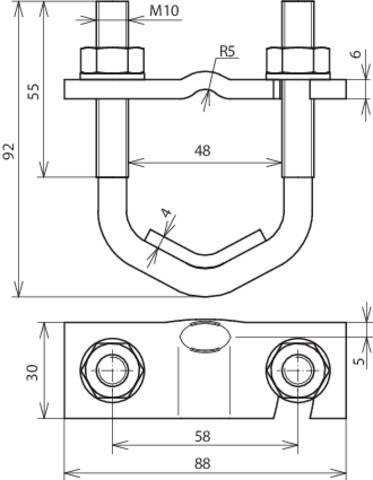

Technical drawing of a U-bolt with nuts; Dimensions: 92x55 mm vertical, 48 mm horizontal, M10 thread, front and top view.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Mounting bracket

Manufacturer part #: 308045

Factory colour: Black

Content: 1 pc(s)

Material: Steel

Weight: 0

: Untreated

: Parallel connector

: Other

: Steel

: 16 kA

: 16.0-48.0 mm

: 30.0-30.0 mm

: 6.0-10.0 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750806 DEHN 308045 BVK 16.48 6.10 FL40 BSB STBL Mounting bracket

User & Safety Instructions

User & Safety Instructions 2750806 DEHN 308045 BVK 16.48 6.10 FL40 BSB STBL Mounting bracket

Information

Information 2750806 DEHN 308045 BVK 16.48 6.10 FL40 BSB STBL Mounting bracket

Description

U-clamp terminal according to DIN EN 62561-1, for connecting reinforcement steels with round or flat conductors. Designed for large diameter D16-48 mm.
