Buy DEHN 308046 BVK 16.48 FL40 KB6.10 BSB STBL Mounting bracket

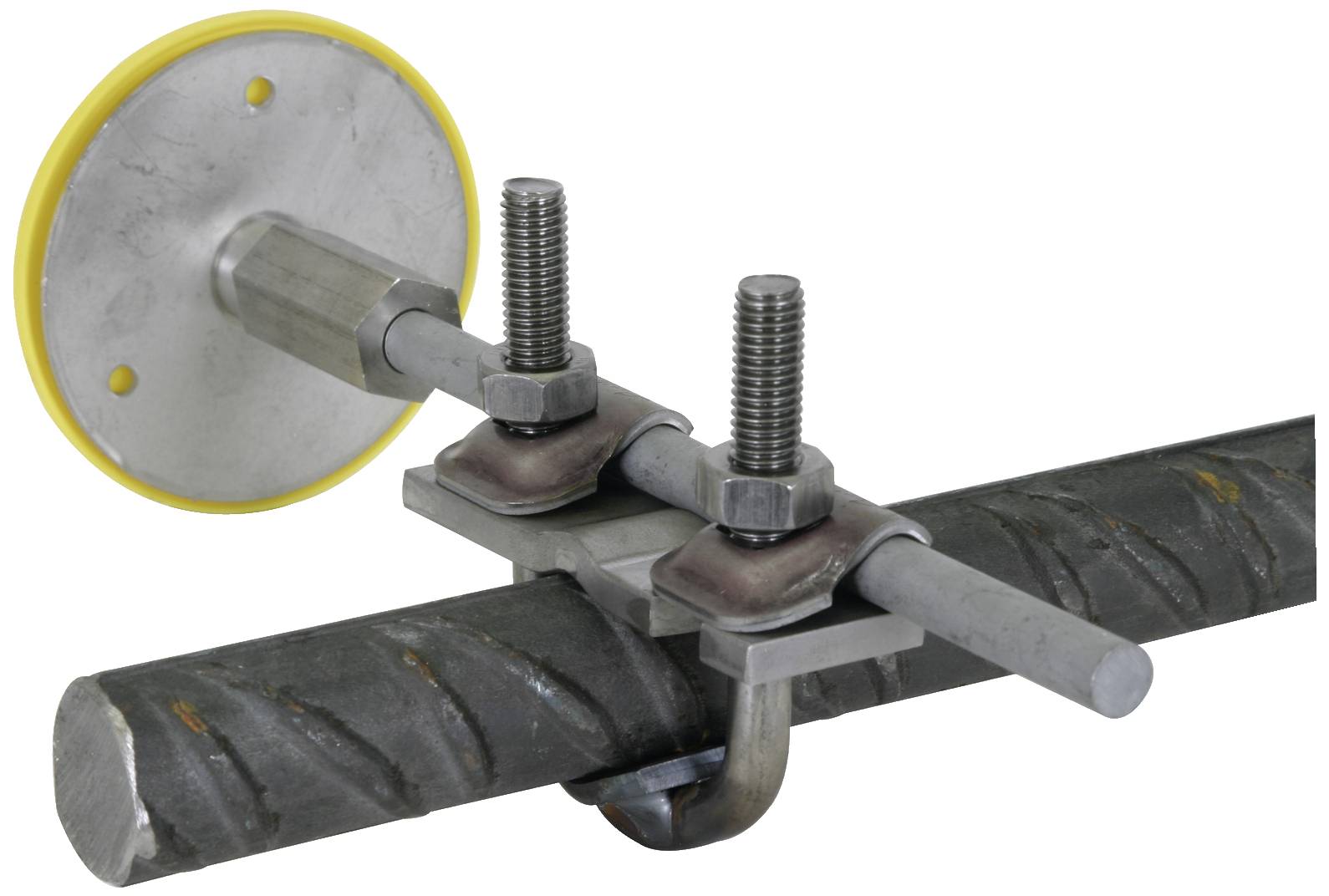

Metal rod secured with two screw clamps on a threaded rod. A yellow, round cap provides protection at the left-hand end.

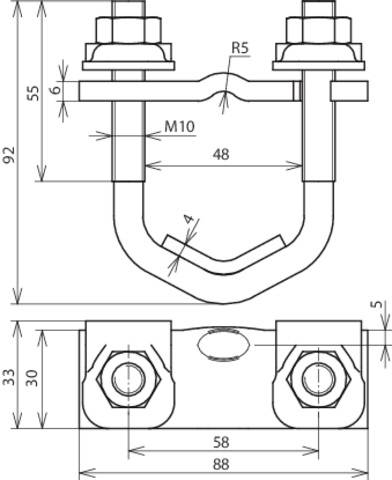

Technical Drawing of a U-Bolt with Dimensions: Total Width 88 mm, Height 92 mm, Pipe Diameter M10, Distance Between Bolts 58 mm.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Mounting bracket

Manufacturer part #: 308046

Content: 1 pc(s)

: Untreated

: T-/cross-/parallel connector

: Steel

: 9.9 kA

: 16.0-48.0 mm

: 30.0-40.0 mm

: 6.0-10.0 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750848 DEHN 308046 BVK 16.48 FL40 KB6.10 BSB STBL Mounting bracket

User & Safety Instructions

User & Safety Instructions 2750848 DEHN 308046 BVK 16.48 FL40 KB6.10 BSB STBL Mounting bracket

Information

Information 2750848 DEHN 308046 BVK 16.48 FL40 KB6.10 BSB STBL Mounting bracket

Description

Clamp terminal in accordance with DIN EN 62561-1, for connecting reinforcement, with terminal block for the cross connection of round conductors or for ground fixing points with simultaneous mounting in the formwork. Large diameter design.

This text is machine translated.
