Buy DEHN 308142 DC BK 10 FL30 STBLANK Retaining bracket

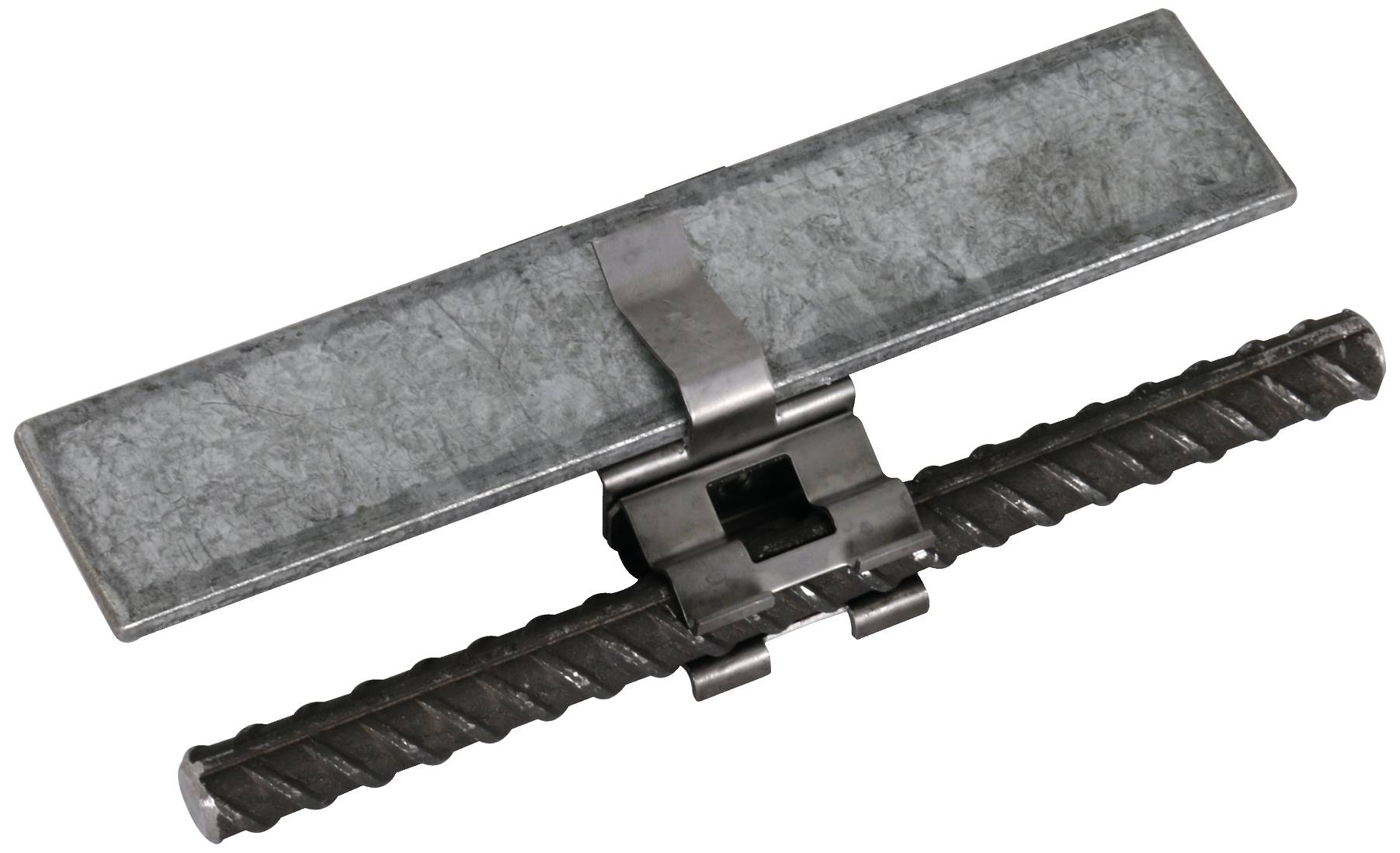

Metal fastening clamp with a rectangular plate on top and a ribbed steel rod underneath, connected by a central hinge.

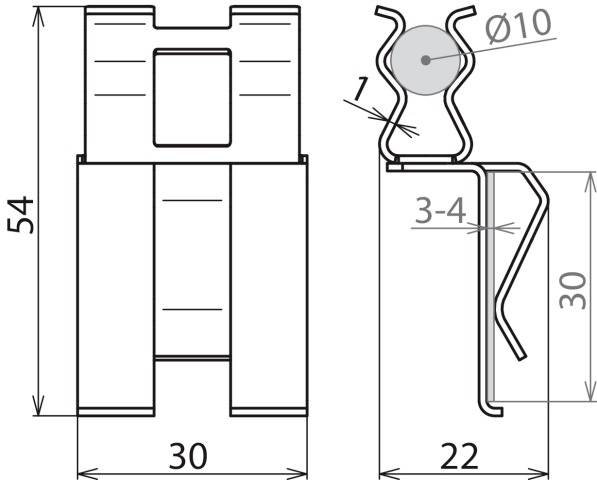

Drawing of a metal clip with dimensions: 54 mm height, 30 mm width at front, 22 mm width at side. Attachment detail.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Retaining bracket

Manufacturer part #: 308142

Content: 1 pc(s)

Weight: 0.02

: Untreated

: Parallel connector

: Screw less

: Steel

: 2.3 kA

: 10.0-10.0 mm

: 30.0-30.0 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750058 DEHN 308142 DC BK 10 FL30 STBLANK Retaining bracket

User & Safety Instructions

User & Safety Instructions 2750058 DEHN 308142 DC BK 10 FL30 STBLANK Retaining bracket

Information

Information 2750058 DEHN 308142 DC BK 10 FL30 STBLANK Retaining bracket

Description

Quick¨simple – lightning current tested – that is DEHNcIp, a reinforcement terminal which has a secure, fast, simple and tool-free connection of grounding materials with armor-arresters. Connection terminal according to DIN EN 62561-1, for connecting concrete steel mats or reinforcements with flat conductors.

This text is machine translated.
