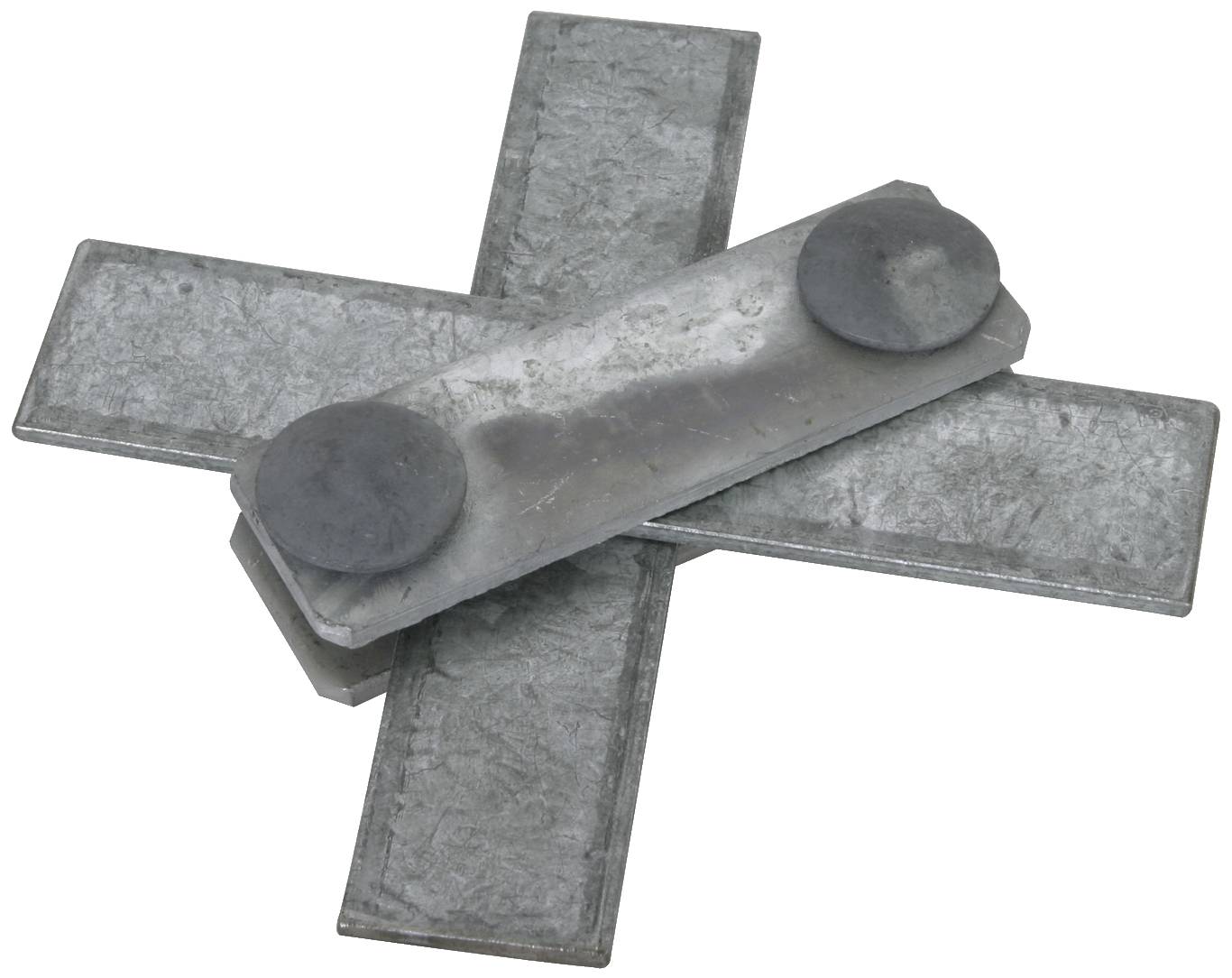

Metal cross with two overlapping magnetic plates. Suitable for welding, ensures right angle.

Metal cross with two overlapping magnetic plates. Suitable for welding, ensures right angle.

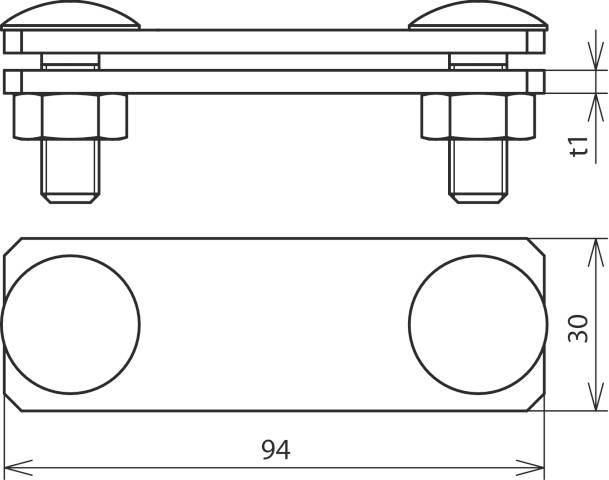

Technical drawing of a metal connection with dimensions: Length 94 mm, Height 30 mm, Thickness t1, showing bolts and nuts.

1/2

DEHN

Datasheet (PDF)

European union

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: SV connector

Manufacturer part #: 308230

Content: 1 pc(s)

: Cross connector

: Flat round screw

: Steel

: 100 kA

: 30.0-30.0 mm

: 30.0-30.0 mm

UKCA: not relevant

Documents & Downloads

Datasheet

European union

Datasheet 2750403 DEHN 308230 SVK FL30 STTZN SV connector

User & Safety Instructions

User & Safety Instructions 2750403 DEHN 308230 SVK FL30 STTZN SV connector

Information

European union

Information 2750403 DEHN 308230 SVK FL30 STTZN SV connector
