Buy DEHN 318207 KS 8.10 FL30 CU X piece

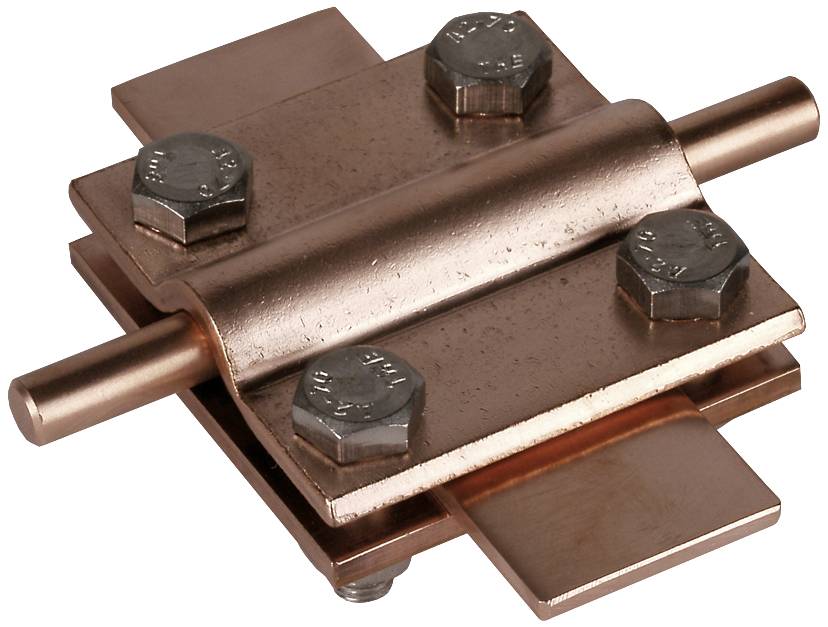

Copper electrical connector with four screws and two parallel bars. Used for electrical earthing connections.

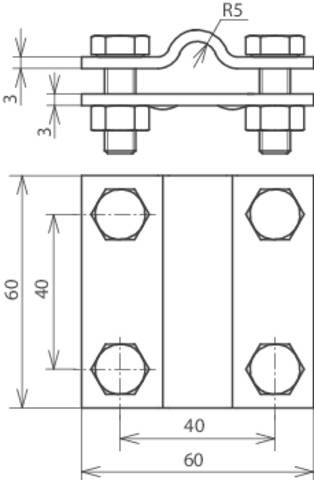

Technical drawing of a clamp piece with dimensions. Top: Side view with curved section, two screws. Bottom: Top view with four screw holes. Dimensions: 60 mm high, 40 mm wide.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: X piece

Manufacturer part #: 318207

Content: 1 pc(s)

: Untreated

: Cross connector

: Hexagon screw

: Copper

: 100 kA

: 8.0-10.0 mm

: 30.0-30.0 mm

: 30.0-30.0 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750904 DEHN 318207 KS 8.10 FL30 CU X piece

User & Safety Instructions

User & Safety Instructions 2750904 DEHN 318207 KS 8.10 FL30 CU X piece

Information

Information 2750904 DEHN 318207 KS 8.10 FL30 CU X piece

Description

Cross piece according to DIN EN 62561-1, for above and underground connection of round and flat conductors Design without intermediate plate with M8 screws.

This text is machine translated.
