Buy DEHN 318229 KS 8.10 8.10 FL30 ZP FRSM8 V4A X piece

Metal hinge with four round plates and two axes, symmetrically arranged. Used for uniform rotational movements.

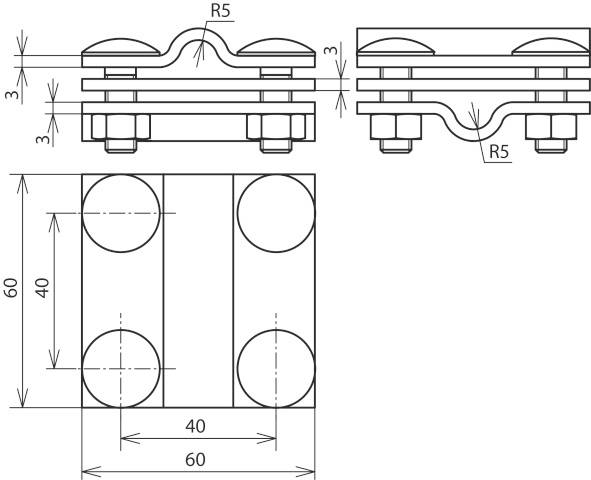

Technical drawing of a metal crown element with dimensions: Height 60, Width 40, Thickness 3 mm, side and top views visible.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: X piece

Manufacturer part #: 318229

Dim: (L x W x H) 60 x 60 x 30 cm

Length: 60 cm

Width: 60 cm

Height: 30 cm

Content: 1 pc(s)

: Untreated

: Cross connector

: Flat round screw

: Stainless steel V4A

: 100 kA

: 8.0-10.0 mm

: 30.0-30.0 mm

: 8.0-10.0 mm

: 30.0-30.0 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750068 DEHN 318229 KS 8.10 8.10 FL30 ZP FRSM8 V4A X piece

Information

Information 2750068 DEHN 318229 KS 8.10 8.10 FL30 ZP FRSM8 V4A X piece

Description

Cross piece according to DIN EN 62561-1, for above and underground connection of round and flat conductors Design with intermediate plate and M8 screws.
