Buy DEHN 319209 KS 8.10 8.10 FL30 ZP V4A X piece

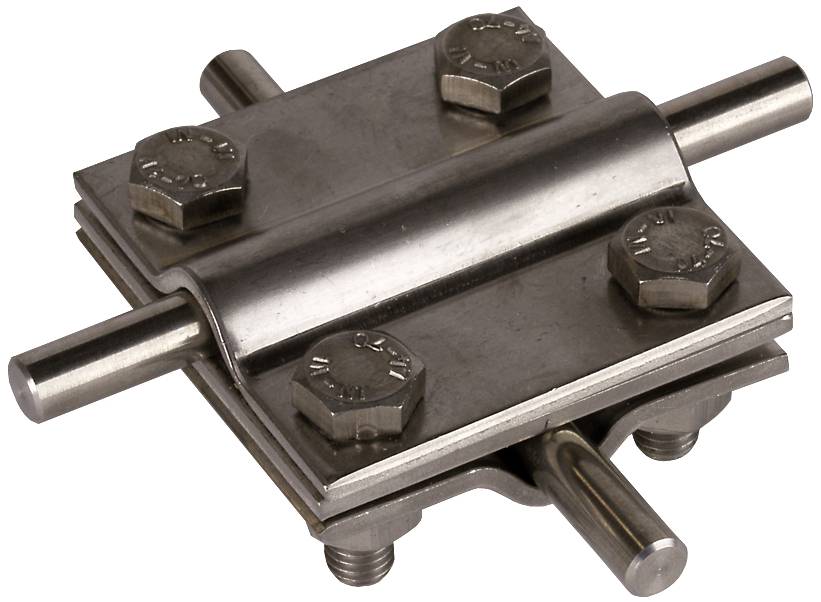

A metal hinge with cylindrical rods and four screws, which connects components or fixes movable parts.

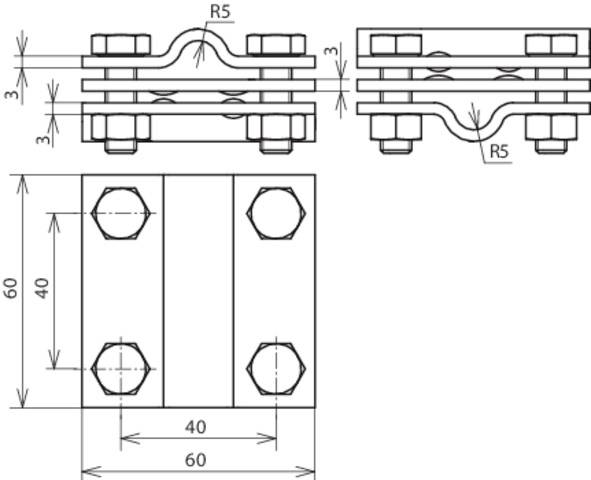

Technical drawing of a metal clamp with dimensions: Length 60 mm, Width 40 mm. Side and top views show details of screw fastening.

1/2

Datasheet (PDF)

Unavailable

666 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: X piece

Manufacturer part #: 319209

Factory colour: Multicolour

Dim: (W x H x D) 60.0000 x 60.0000 x 32.0000 mm

Width: 60.0000 mm

Height: 60.0000 mm

Depth: 32.0000 mm

Content: 1 pc(s)

Weight: 0.32

: Untreated

: Cross connector

: Hexagon screw

: Stainless steel V4A

: 100 kA

: 8.0-10.0 mm

: 30.0-30.0 mm

: 8.0-10.0 mm

: 30.0-30.0 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2750907 DEHN 319209 KS 8.10 8.10 FL30 ZP V4A X piece

User & Safety Instructions

User & Safety Instructions 2750907 DEHN 319209 KS 8.10 8.10 FL30 ZP V4A X piece

Information

Information 2750907 DEHN 319209 KS 8.10 8.10 FL30 ZP V4A X piece

Description

Cross piece according to DIN EN 62561-1, for above and underground connection of round and flat conductors Design with intermediate plate and M8 screws.
